Overview of Components
Video Demonstration
Watch the video to learn how to Install
U.2 SSD. http://youtu.be/KgFvKDxymvw
U2_1: U.2 Connector
This connector is a U.2 interface port, which can connect to PCIe 3.0 x4 (RYZEN series
processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) NVMe storage
device.
Installing U.2 SSD

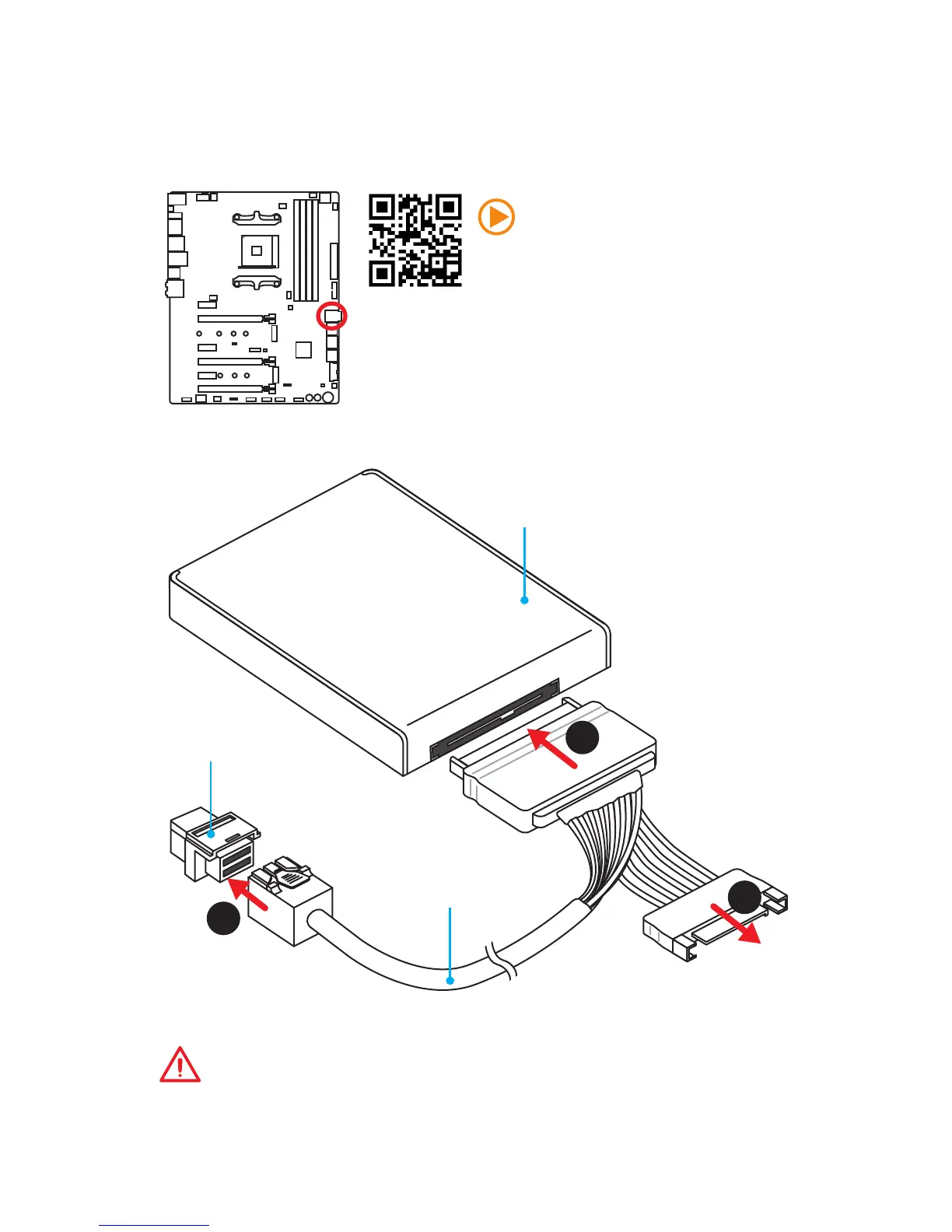

1. Connect the U.2 cable to the U.2 connector on the
motherboard.
2. Connect the U.2 cable to the U.2 SSD.
3. Connect the U.2 cable to power adapter cable.
1
2
3
U.2 SSD
U.2 Connector
U.2 Cable
Connect to power
adapter cable
Important
M2_1 slot will be unavailable when an U.2 SSD has been installed in the U2_1
connector.
