12
5
Maintaining
Your Chipper
Shredder
WARNING
Always stop engine,
disconnect spark
plug, and ground
against engine
before cleaning,
lubricating or
doing any kind of
maintenance on your
machine.

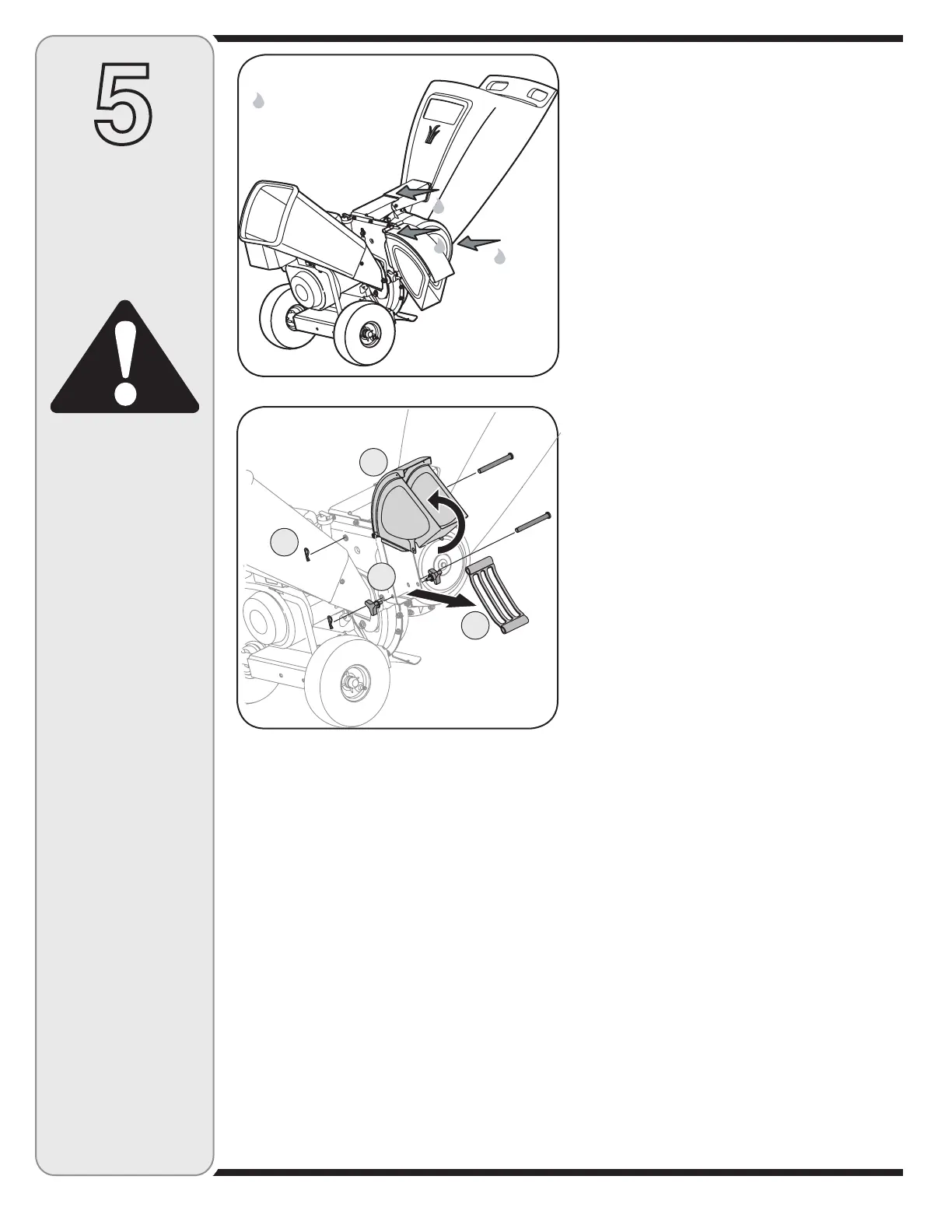

Figure 5-1
Figure 5-2
General Recommendations
1. Always observe safety rules when performing
any maintenance.
2. The warranty on this chipper shredder does not
cover items that have been subjected to operator
abuse or negligence. To receive full value from war-
ranty, operator must maintain the chipper shredder
as instructed here.
3. Changing of engine-governed speed will void
engine warranty.
4. All adjustments should be checked at least once
each season.
5. Periodically check all fasteners and make sure these
are tight.
Lubrication
1. Lubricate the release rod and spring with light oil once
a season. See Figure 5-1.
2. Lubricate the pivot points on the hopper assembly with
light oil once a season. See Figure 5-1.
3. Lubricate the pivot points on the discharge chute with
light oil once a season. See Figure 5-1.
4. Follow the separate engine manual packed with you
unit for lubrication instructions.
Engine Care
Refer to the separate engine manual for all engine
maintenance instructions.
1. Check engine oil level before each use as instructed
in the separate engine manual packed with your unit.
Read and follow instructions carefully.
2. Clean air cleaner every 25 hours under normal condi-
tions or once a season. Clean every few hours under
extremely dusty conditions. To service the air cleaner,
refer to the separate engine manual packed with your
unit.
3. The spark plug should be cleaned and the gap reset
once a season. Check engine manual for correct plug
type and gap specifications.
4. Clean engine regularly with a cloth or brush. Keep the
cooling system (blower housing area) clean to permit
proper air circulation. Remove all grass, dirt and
combustible debris from muffler area.
Removing The Flail Screen
If the discharge area becomes clogged, remove the flail
screen and clean area as follows:
1. Stop the engine and make certain the chipper shred-
der has come to a complete stop.
2. Disconnect spark plug wire from spark plug and
ground against the engine.
3. a. Remove the bag and two wing knobs on each side
of the chute deflector. See Figure 5-2.
b. Lift the chute deflector up to keep it out of the way.
c. Remove the two hairpin clips from each clevis pin
which extend through the housing and remove pins.
d. Remove the flail screen from inside the housing
and clean the screen by scraping or washing with
water. See Figure 5-2.
4. Reinstall the screen, making certain to reassemble the
flail screen with the curve side down.
5. Reattach the chute deflector with the hardware
previously removed and connect the bag to unit.
Sharpening Or Replacing Chipper
Blades
1. Disconnect the spark plug wire and ground against the
engine.
2. Remove the flail screen as instructed in the previous
section.
3. Remove the chipper chute by removing three hex nuts
and washers.
*Model 464 Shown
Lubricate these
points before
reassembly.
A
B
C
D
*Model 464 Shown
To Next Page
