MTD 600 Series Illustrated Parts Manual

56

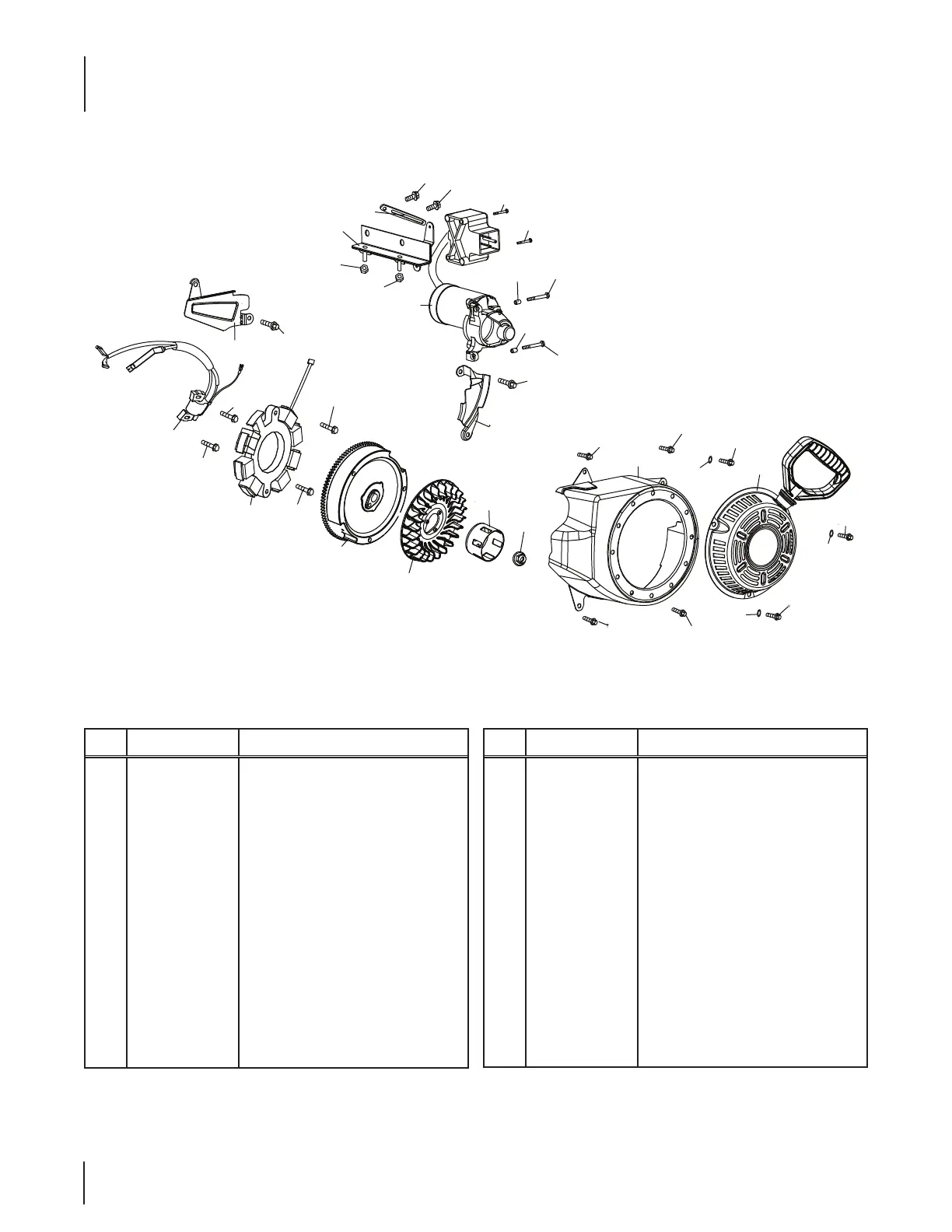

370-SUC Starter Assembly & Blower Housing
Ref. Part Number Description
80 951-10646 Ignition Coil Assembly
81 951-11110 Air Flow Shield
82 710-04940 Bolt M6×10
83 710-04919 Bolt M6×25
84 951-12050A Alternator Assembly
85 951-12051 Flywheel
86 951-10934 Cooling Fan
87 951-10911 Starter Cup
88 712- 04209 Flywheel Nut, M14×1.5
89 710-04915 Bolt M6×12
91 951-10663A Blower Housing
92 736-04455 Washer 6
93 710 -04974 Bolt M6×10
Ref. Part Number Description
94 751-14151 Recoil Starter Assembly
119 710-04914 Bolt M6×10
120 951-11680 Electric Starter Cord Retainer
121 951-11114 Switch Housing Mounting Bracket
122 712- 05015 Nut, M6
123 710-04965 Bolt M4×55
124 710-04935 Bolt M4×60
125 710-05182 Bolt M6×32
126 715-04088 Dowel Pin 8×8
127 951-10645A Electric Starter
128 710 -04915 Bolt M6×12
129 951-11109 Blower Housing Shield
121
121
123
124
120
121
122
122
127
126
125
125
126
128
129
89
91
89
92
93
94
93
92
93
92
89
89
88
87
86
85
83
83
84
83
83
80
81
82

MTD 600 Series Specifications

General

Auger Material	Steel
Skid Shoes	Adjustable
Type	Two-Stage
Clearing Width	26 inches
Stages	Two-Stage
Engine Displacement	208 cc
Intake Height	21 inches
Throw Distance	Up to 40 ft
