Starters
77
Starter pulley and recoil spring
The recoil spring is nested within the starter pulley and
both parts are assembled as a single part number.
If damage is suspected, the recoil may be disassem-
bled by:
1. Remove the starter by following the steps described
earlier in this chapter.
2. Remove the shoulder screw and pressure plate using
a 10 mm wrench. See Figure 6.9.
NOTE: Beneath the pressure plate is a compression
spring, and two starter pawls that are held in the
disengaged position by two torsion springs.
3. Inspect the pawls and torsion springs for wear and
damage. See Figure 6.10.
4. Carefully lift the spring and pulley out of the recoil
housing. See Figure 6.11.

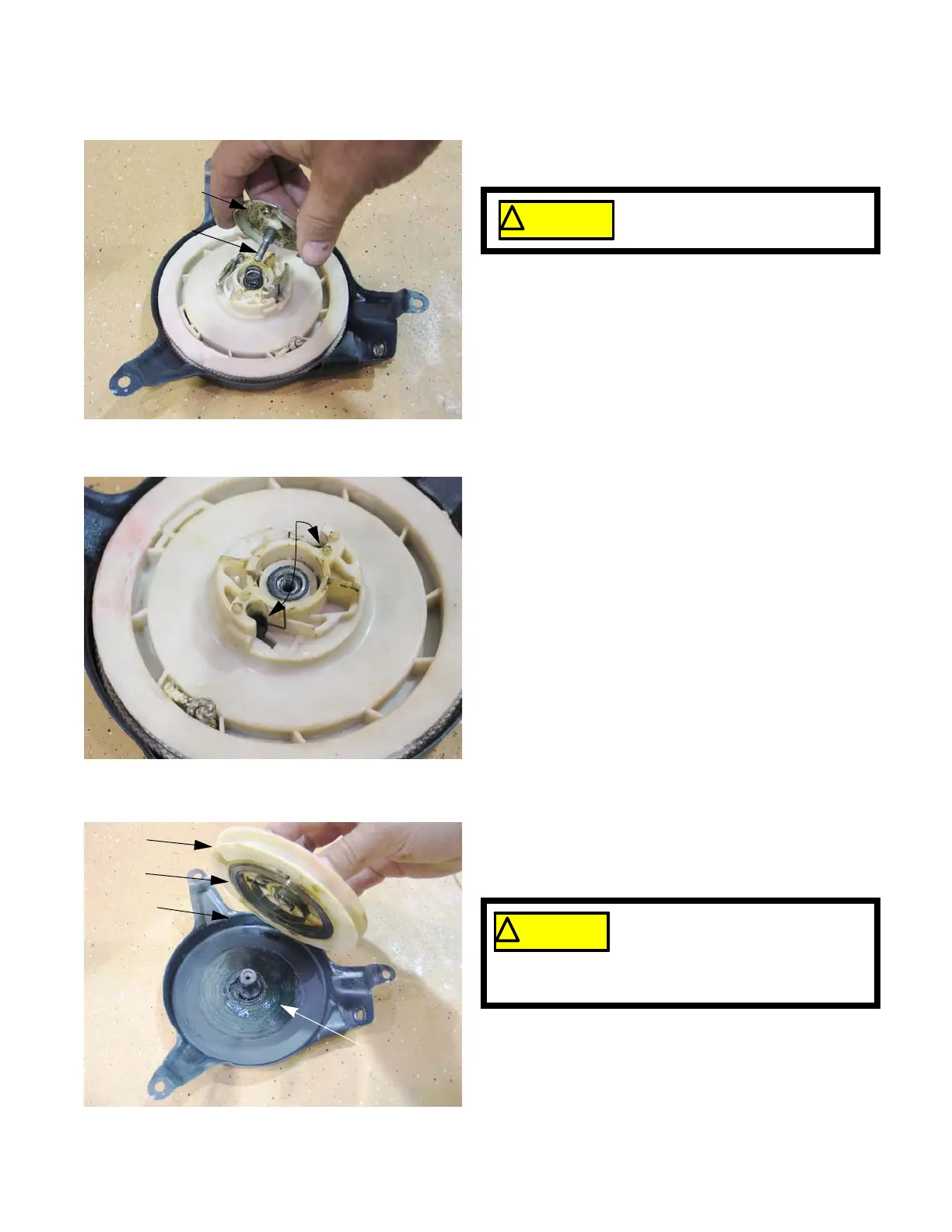

Figure 6.9
Pressure plate
Shoulder screw
Eye protection should be worn if
the starter pulley is to be removed.
! CAUTION! CAUTION
Figure 6.10
Torsion springs
L-shaped arm goes outside
of the starter pawl, on installation
Figure 6.11
Pulley
Spring
Housing
Lithium grease
Eye protection should be worn if the
starter pulley is to be removed.
The recoil spring is under tension
and can release as the pulley is removed.
! CAUTION! CAUTION
