78/83/90 Series Horizontal Shaft Engines
46
Charcoal canister
To remove/replace the charcoal canister:
1. Disconnect the hoses from the canister.
See Figure 4.15.
2. Remove the screw from the canister mounting strap
using a 10 mm wrench.
See Figure 4.16.
To Install the canister:
3. Insert the tab of the mounting strap into the slot in
the fuel tank mounting bracket.
See Figure 4.17.
4. Install the mounting screw.
5. Attach the hoses.
6. Test run the engine in a safe area before returning
to service.

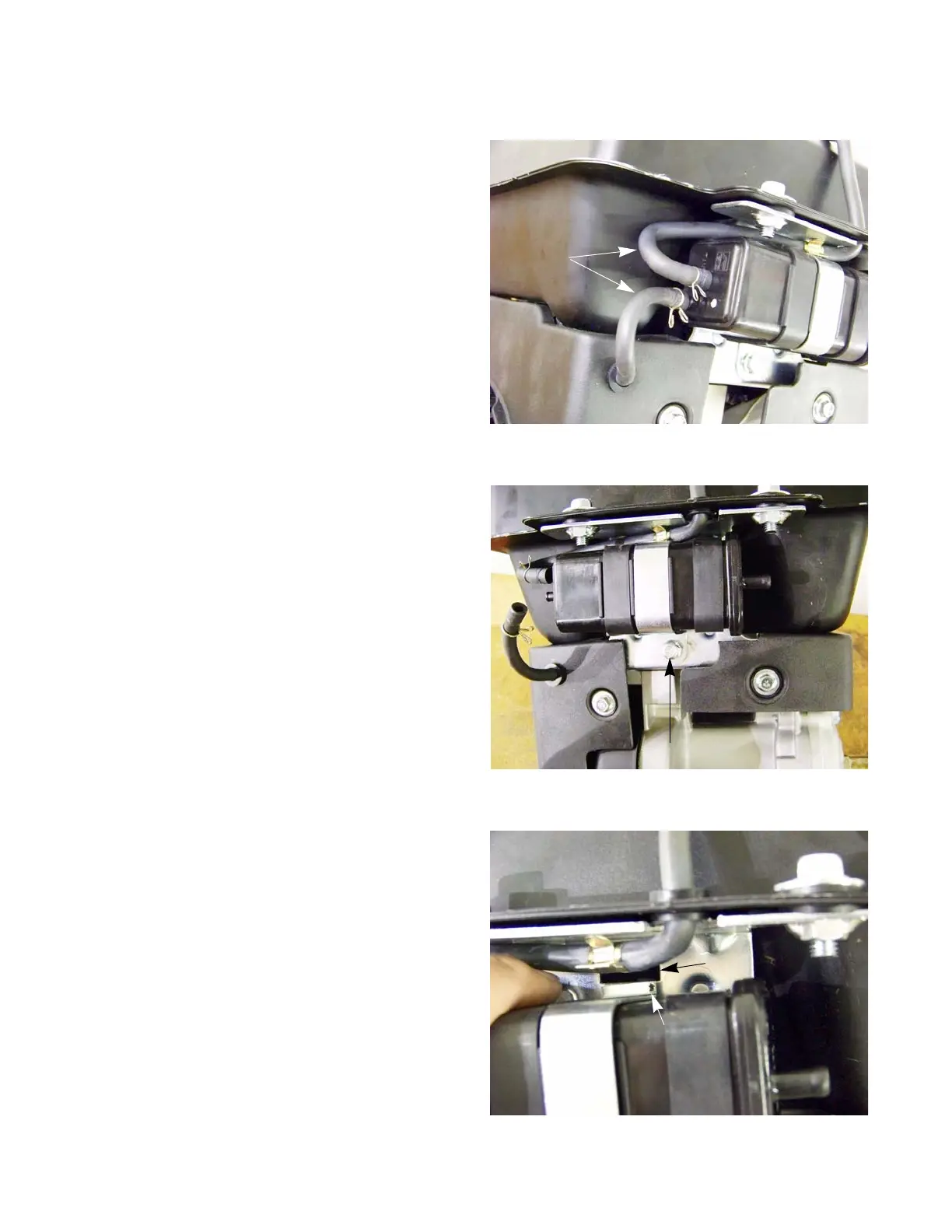

Figure 4.15
Hoses
Figure 4.16
Screw
Figure 4.17
Tab
Slot
