FUEL SYSTEM AND GOVERNOR
57
6.Remove the fuel shut-off lever. See Figure 4.38.
NOTE: There is a passage cast into the shut-off lever.
When this passage lines up with the two posts in
the carburetor, fuel will flow to the needle valve.
7. Remove the rubber gasket. See Figure 4.40.
8. Re-assemble the fuel shut-off valve by following the
previous steps in reverse order.
9. Test run the engine before returning it to service.

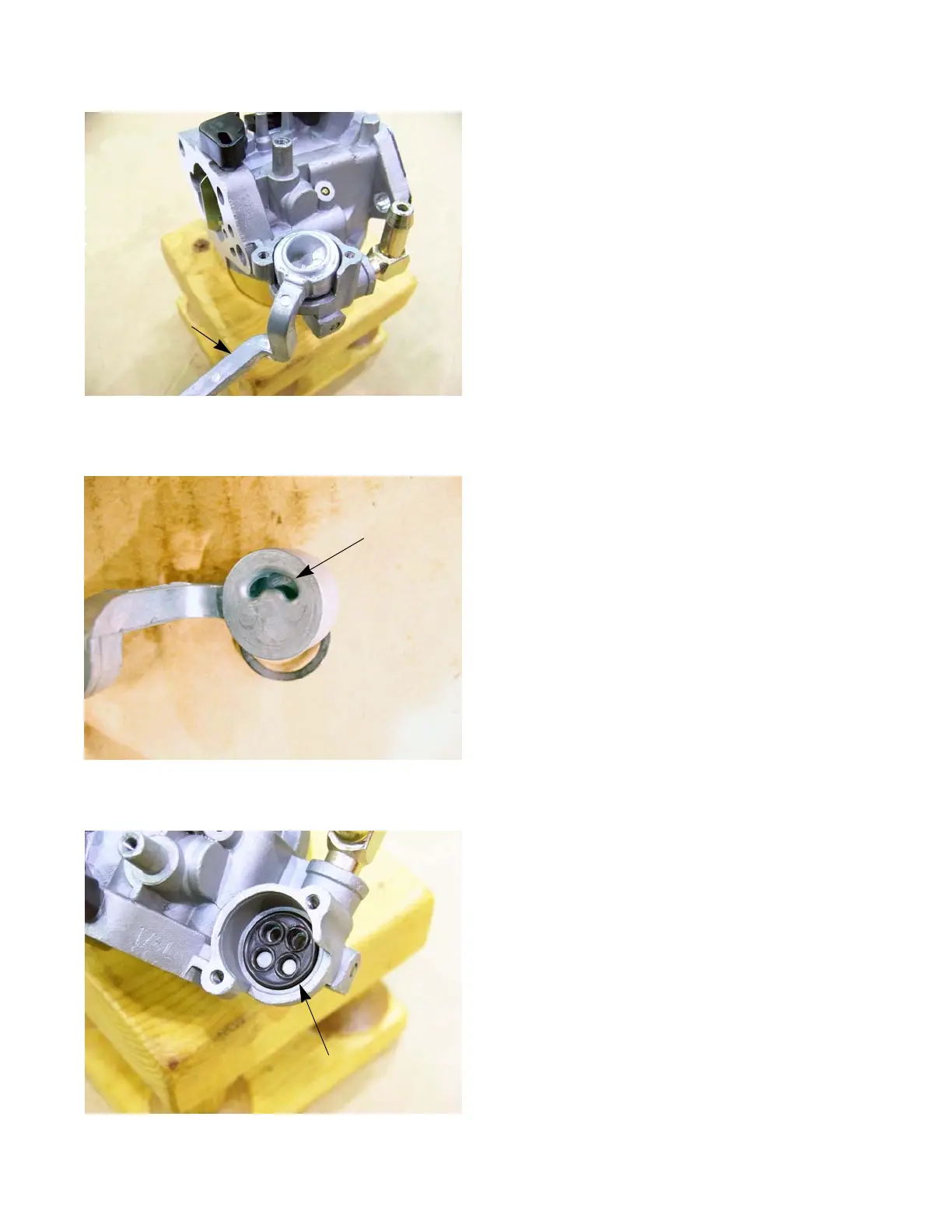

Figure 4.38
Fuel shut-off lever
Figure 4.39
Fuel passage
Figure 4.40
Rubber Gasket
