Lubrication
65
Dip stick tube removal
To remove/replace the dip stick tube:
NOTE: The procedure to remove the dip stick tube is the
same for both styles of dip stick.
NOTE: A threaded dip stick and tube assembly is inter-
changeable with a quarter turn dip stick and tube
assembly.
1. Remove the upper screw that secures the dip stick
tube to the fuel tank support bracket using a 10 mm
wrench.
See Figure 5.4.
2. Remove the screw at the bottom of the dip stick tube
using a 10 mm wrench.
See Figure 5.4.
3. Pull the dip stick tube out of the engine block.
4. Inspect the O-rings on the dip stick and the dip stick
tube. Replace if damaged.
NOTE: Lubricate the O-ringfor installation.
5. Install by following the above steps in reverse order.

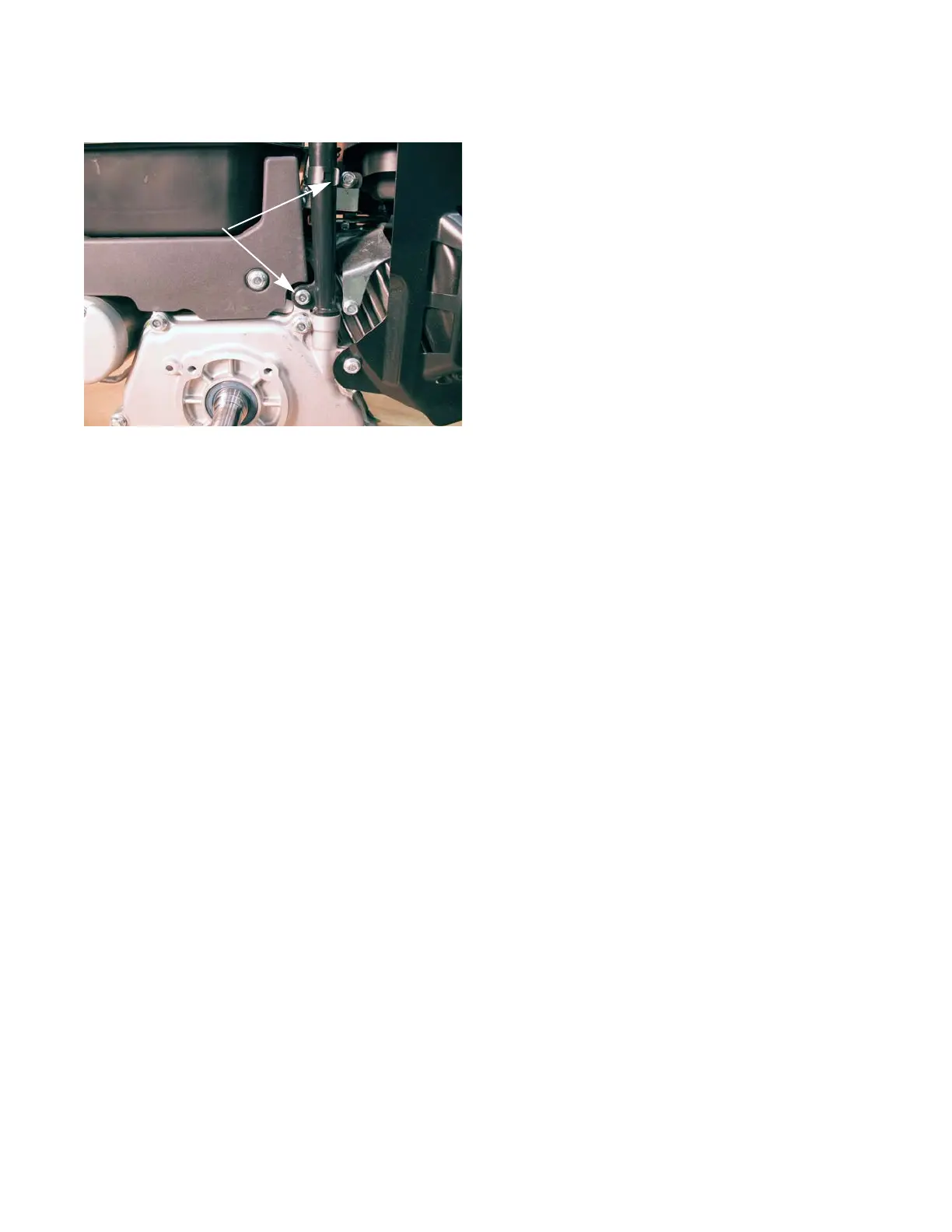

Figure 5.4
Remove these
screws
