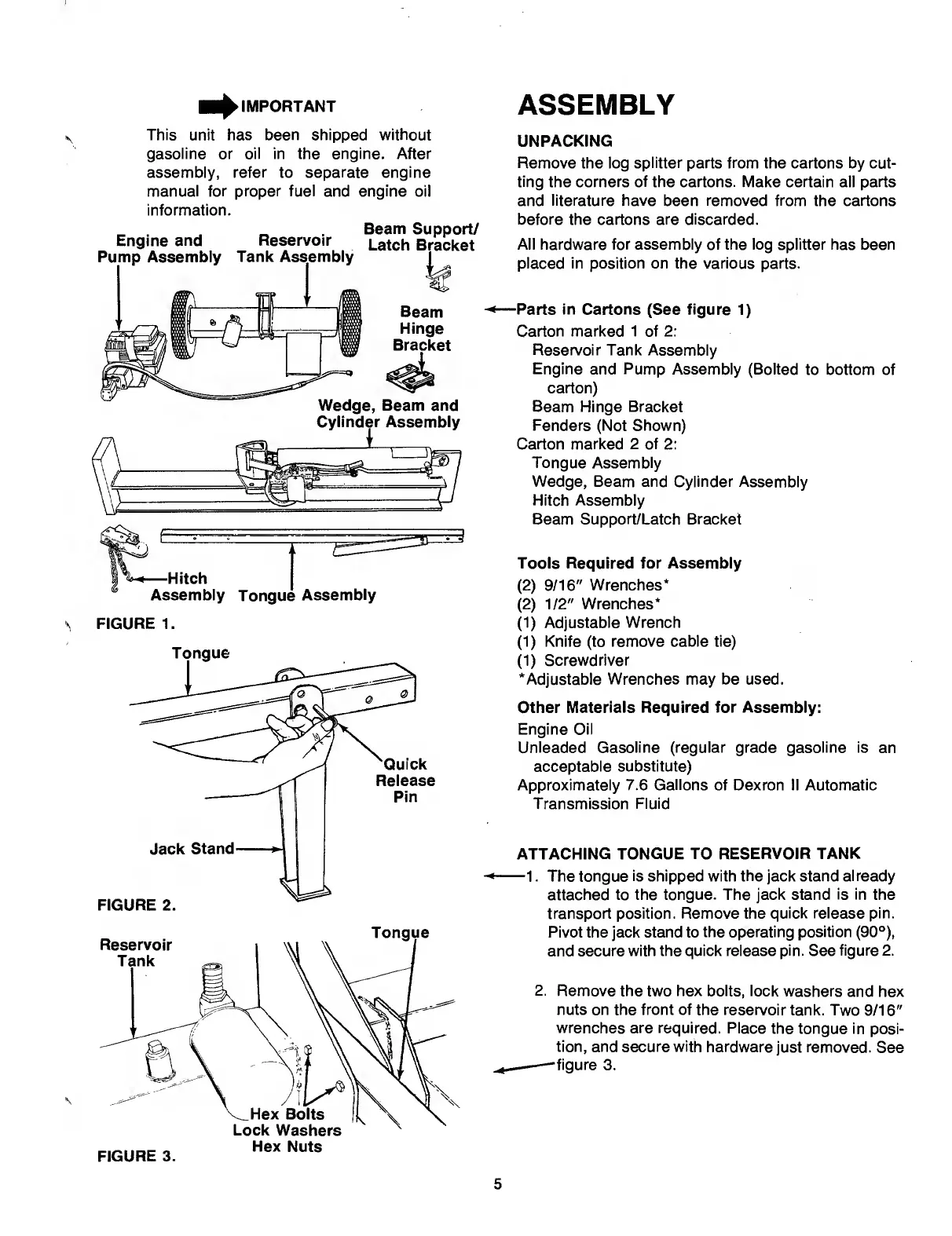

■ UNIMPORTANT ASSEMBLY
This unit has been shipped without
gasoiine or oil in the engine. After
assembiy, refer to separate engine
manual for proper fuel and engine oil
information.
UNPACKING
Remove the log splitter parts from the cartons by cut¬
ting the corners of the cartons. Make certain all parts
and literature have been removed from the cartons
before the cartons are discarded.
All hardware for assembly of the log splitter has been
placed in position on the various parts.
—Parts in Cartons (See figure 1)
Carton marked 1 of 2:
Reservoir Tank Assembly
Engine and Pump Assembiy (Bolted to bottom of
carton)
Beam Hinge Bracket
Fenders (Not Shown)
Carton marked 2 of 2:
Tongue Assembly
Wedge, Beam and Cylinder Assembly
Hitch Assembly
Beam Support/Latch Bracket
Tools Required for Assembly
(2) 9/16" Wrenches*
(2) 1/2" Wrenches*
(1) Adjustable Wrench
(1) Knife (to remove cable tie)
(1) Screwdriver
*Adjustable Wrenches may be used.
Other Materials Required for Assembly:
Engine Oil
Unleaded Gasoline (regular grade gasoline is an
acceptable substitute)
Approximately 7.6 Gallons of Dexron II Automatic
Transmission Fluid
ATTACHING TONGUE TO RESERVOIR TANK
-1. The tongue is shipped with the jack stand already
attached to the tongue. The jack stand is in the
transport position. Remove the quick release pin.
Pivot the jack stand to the operating position (90°),
and secure with the quick release pin. See figure 2.
Remove the two hex bolts, lock washers and hex
nuts on the front of the reservoir tank. Two 9/16"
wrenches are required. Place the tongue in posi¬
tion, and secure with hardware just removed. See
figure 3.
5
