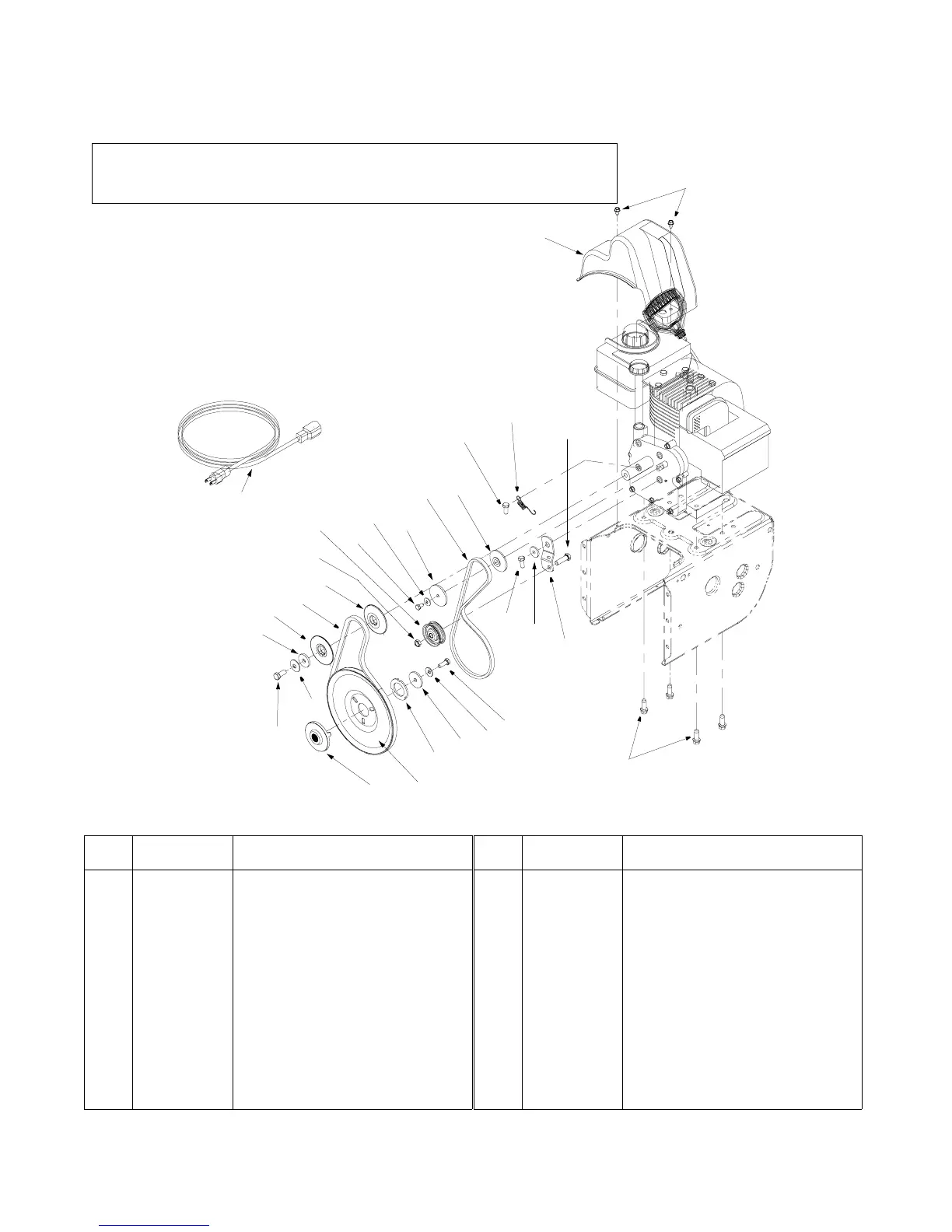

MTD E640F - Page 24

24
E600E & E610E
REF.
NO.
PART
NO. DESCRIPTION
1 710-1652 Hex Washer Screw 1/4-20 x.5
2 731-1324 Belt Cover
3 732-0339 Extension Spring
4 710-0627 Hex Screw 5/16-24 x .75
5 710-3005 Hex Cap Screw 3/8-16 x 1.25
6 05896A Drive Clutch Bracket
7 748-0234 Shoulder Spacer
8 756-0985 Pulley Half
9 754-0343 V-Belt
10 756-0984 Pulley Half
11 736-0270 Bell Washer
12 710-0230 Hex Cap Screw 1/4-28 x .50
13 756-0313 Flat Idler
14 710-1245A Lock Cap Screw 5/16-24
15 712-0181 Lock Jam Nut 3/8-16
16 756-0569 Pulley Half
17 736-0242 Bell Washer
18 736-0505 Flat Washer
19 736-0507 Washer
20 754-0430A Belt
21 756-0967 Auger Pulley
22 736-0247 Flat Washer
23 736-0331 Bell Washer
24 710-0696 Hex Cap Screw 3/8-24
25 748-0360 Pulley
26 710-0654A Hex Washer Screw 3/8-16 x 1.0
27 629-0071 Extension Cord
OEM-390-986 Electric Start Kit
REF.
NO.
PART
NO. DESCRIPTION
1
2
3
4
5
6
7
4
8
9
10
11
12
13
14
15
16
17
18
19
20
16
21
22
23
24
25
26
27
IMPORTANT: For a properly working machine, use Factory Approved Parts.
V-BELTS are specially designed to engage and disengage safely. A substitute
(non OEM) V-Belt can be dangerous by not disengaging completely.
