5

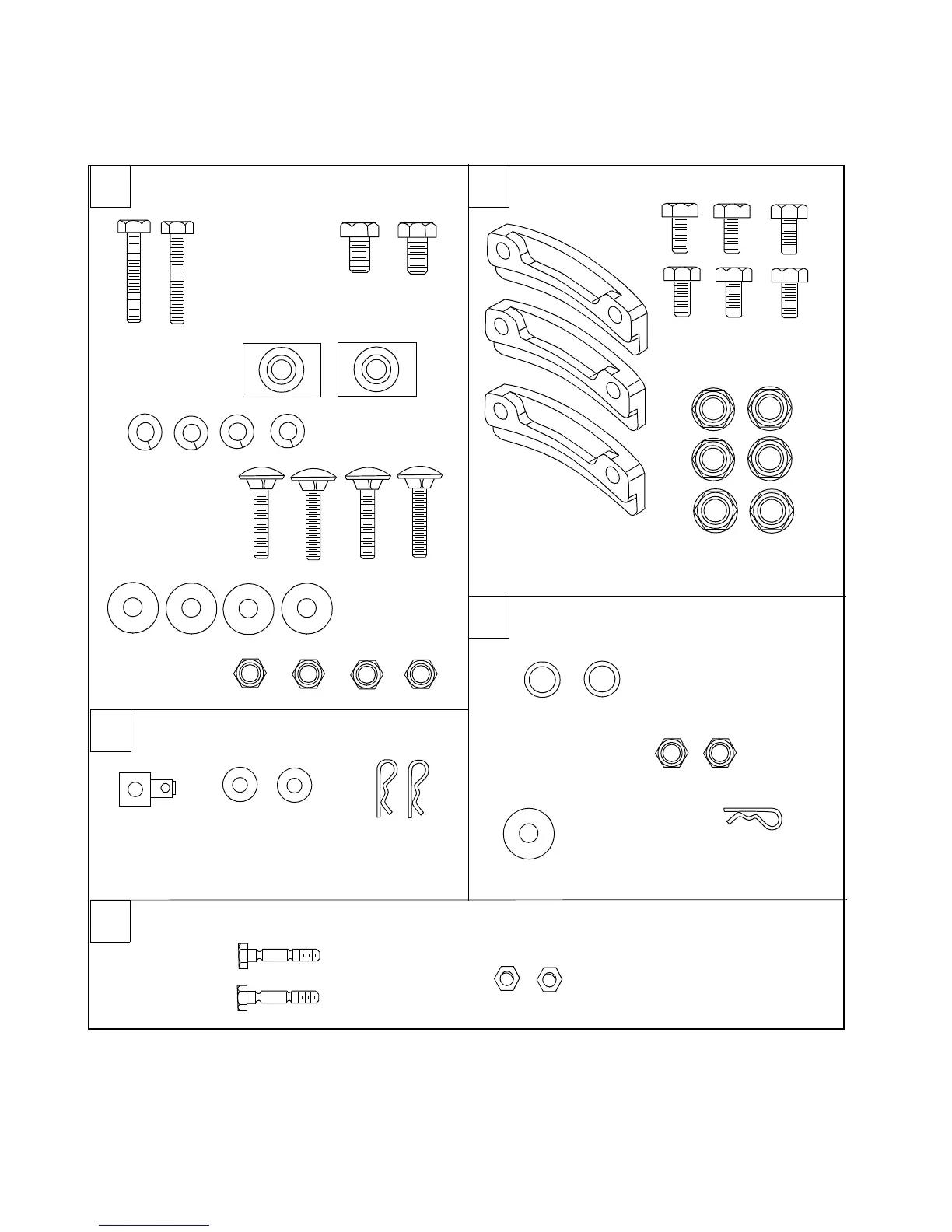

Contents Of Hardware Pack
Lay out the hardware according to the illustration for identification purposes. Part numbers are shown in
parentheses. (Hardware pack may contain extra items which are not used on your unit.)
A
ATTACHING THE HANDLES
Hex Bolts
(710-3259)
Hex Bolts
(710-1880)
Lock Washers
(736-0119)
Carriage Bolts
(710-0262)
Cupped Washers
(736-0242)
B
ATTACHING THE CHUTE ASSEMBLY
Hex Bolts
(710-3015)
Chute Flange
(731-0851A)
Keepers
Hex Lock Nuts
ATTACHING THE CHUTE DIRECTIONAL
C
Hair Pin Clip
(714-0104)
Hex Nut
(712-3010)
5/16-18 x 1-3/4”
5/16-18 x 3/4”
5/16” I.D.
5/16” I.D.
1/4-20 x 3/4”
1/4-20 Thread
(712-3027)
5/16” Thread
ATTACHING THE SHIFT ROD
AND CLUTCH CABLES
Ferrule
(711-0677)
3/8” I.D. x 5/8” O.D.
Flat Washers
(736-0275)
Hair Pin Clip
(714-0104)
AUGER SHEAR BOLTS*
Shear Bolts
(710-0890A)
(712-0429)
Hex Lock Nuts
5/16” Thread
5/16-18 x 1-1/2”
Cupped Washers
(736-0242)
5/16” I.D.
5/16” Thread
Lock Nuts
(712-3068)
Handle Tabs
(784-5599)
Flat Washers
(736-0185)
3/8” I.D. x 5/8” O.D.
D
E
CONTROL
* The augers are secured to the spiral shaft with two shear bolts and hex lock nuts. If you hit a hard foreign
object or an ice jam, the snow thrower is designed so that the bolts may shear. These two spare shear bolts
and nuts are provided for your convenience.
IMPORTANT:
NEVER replace the auger shear bolts with standard hex bolts. Any damage to the auger gearbox
or other components as a result of doing so will NOT be covered by your snow thrower’s warranty.
To Next Page
