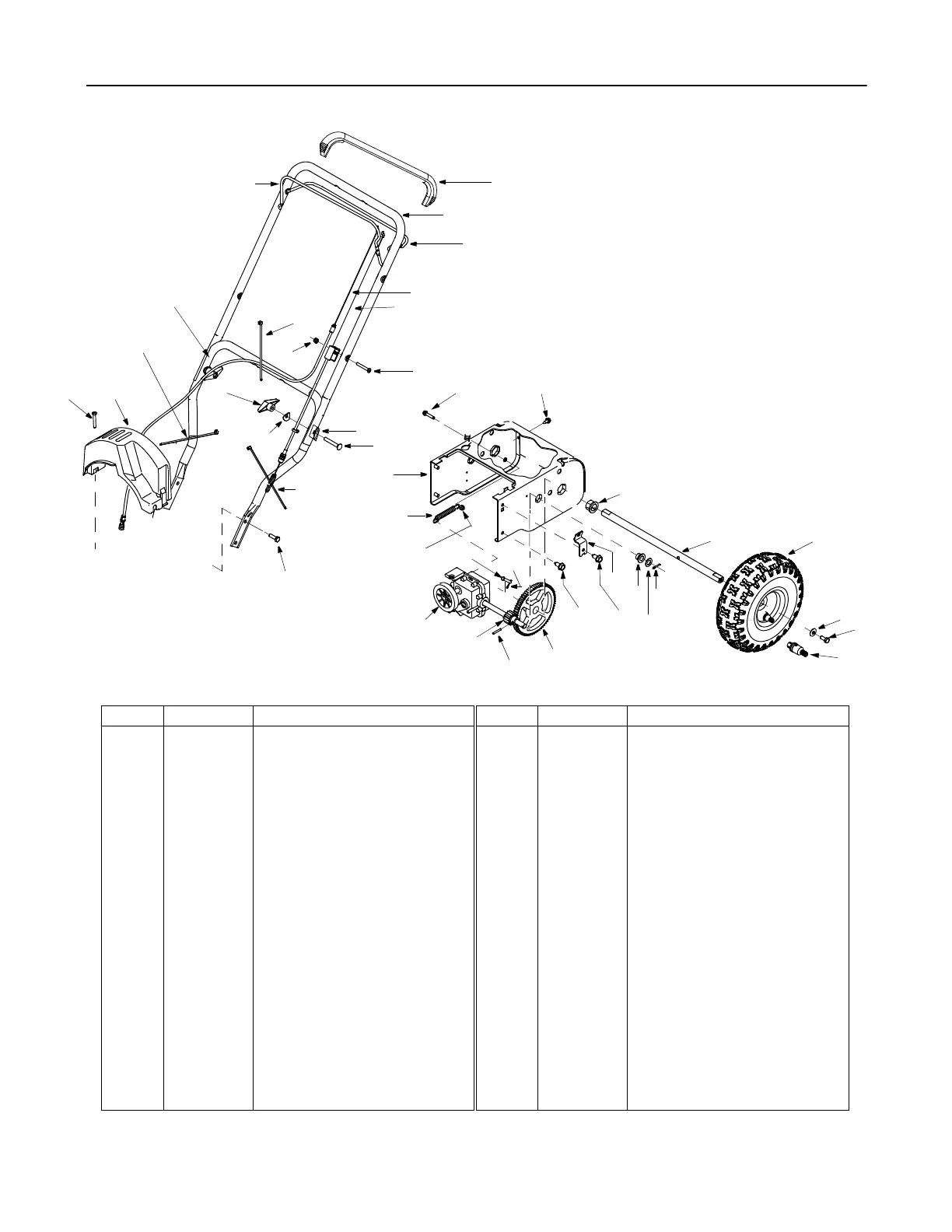

SECTION 9: PARTS LIST FOR MODEL 3BB
1
2
4
5
6
3
8
9
10
11
12
13
14
15
16
6
3
18
19
20
4
23
24
25
26
27
3
28
30
31
32
33
34
35
29
22
21
17
Ref. No. Part No. Description
1. 710-0449 Carriage Screw 5/16-18 x 2.25”
2. 710-0605 Mach. Screw 1/4-20 x 1.825”
3. 710-0726 Screw, 5/16-12 x.75”
4. 712-04064 Flange Lock Nut 1/4-20
5. 720-0284 Handle Knob Assembly
6. 725-0157 Cable Tie
7. 710-0224 Hex Screw, #10-16 x.500
8. 736-0451 Saddle Washer
9. 746-04007 Auger Cable
10. 746-04008 Drive Cable
11. 747-1161A Auger Control
12. 747-1214 Drive Control
13. 749-1092A Upper Handle
14. 749-04147 Lower Handle
15. 790-00053 Handle Tab
16. 618-04008 Transmission Assembly
17. 731-04162 Belt Cover
18. 710-0809 TT Screw 1/4-20 x 1.25”
19. 710-1652 Screw, 1/4-20 x.625”
20. 711-1364 Clevis Pin
21. 738-1231 Axle
22. 736-0242 Bell Washer
23. 714-0115 Cotter Pin, 1/8 x 1.0
24. 714-0507 Cotter Pin, 3/32 x.750
25. 715-0249 Roll Pin
26. 717-04066 Pinion 14T
27. 717-04073 Gear 70T
28. 732-0429A Extension Spring
29. 710-0627 Lock Bolt 5/16-24 x 0.75”
30. 736-0192 Flat Washer
31. 741-0245 Hex Flange Bearing
32. 741-04108 Hex Flange Bearing
33. 784-0419A Drive Housing Frame
34. 790-00015 Auger Cable Bracket
35. 634-0232 Wheel Assembly: Snow Hog Gray
36. 731-04204 Deluxe Bail Cover
37. 753-05426 Pressure Limiting Valve Kit
Ref. No. Part No. Description
A
A
B
B
7
6
36
37
