MTD Yard Machines 580 Series User Manual

13

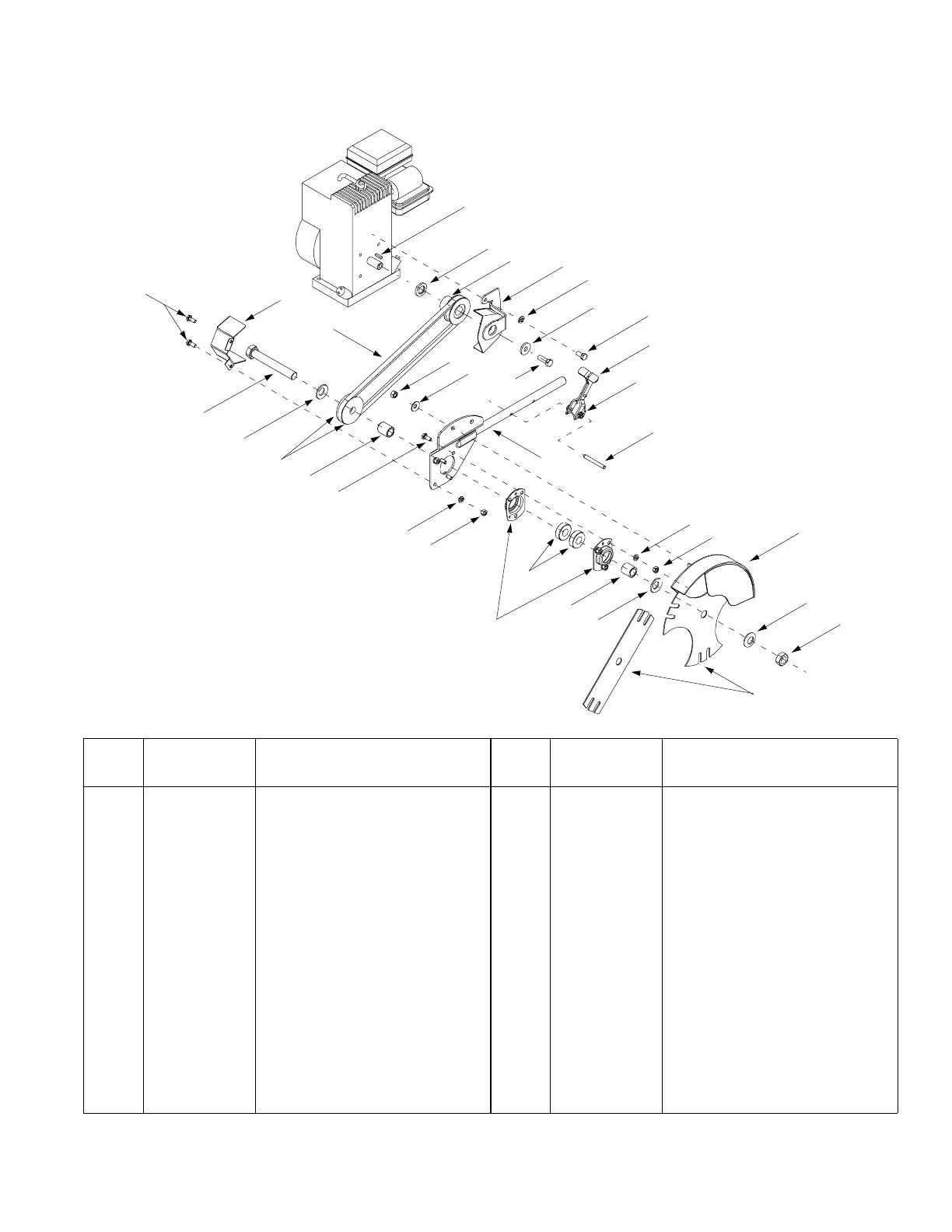

Model Series 580
Ref.
No.
Part Number Description
1. 712-0413 Hex Jam Nut, 5/8-18
2. 736-0317 Bell Washer, .64 x 1.25 x .18
3. 781-0076 Blade Guard
4. 750-0118 Sleeve, .632 x .875 x .90
5. 712-0287 Hex Nut, 1/4-20
6. 736-0329 Lock Washer, 1/4
7. 05034A Bearing Housing
8. 741-0155 Ball Bearing, .62 x 1.38 x .44
9. 715-0121 Spirol Pin, 1/4 x 2.0
10. 781-0093 Adjustment Lever Assembly
11. 781-0078 Spindle Plate/Shaft Assembly
12. 710-0751 Hex Cap Screw, 1/4-20 x .62
13. 750-0229 Spacer, .635 x .88 x 1.03
14. 756-0449 Sheave, .6255 x .6295
15. 710-0929 Hex Cap Screw, 5/8-18 x 4.5
16. 781-0427 Spindle Pulley Belt Guard
17. 714-0122 Square Key, 3/16 x .75
18. 754-0142 V-belt, 3/8
19. 756-0327B Engine Pulley, 3/8 x .75 x 2.38
20. 687-0100 Engine Pulley Belt Guard
21. 712-0267 Hex Nut, 5/16-18
22. 736-0242 Belleville Washer, .340 x .872
23. 736-0119 Lock Washer, 5/16
24. 710-0237 Hex Cap Screw, 5/16-24 x .625
25. 710-0152 Hex Cap Screw, 3/8-24 x 1.0
26. 736-0258 Flat Washer, .385 x 1.0 x .135
27. 748-0160 Spacer, .753 x 1.25 x .175
28. 781-0748 Triplex Edger Blade, 9”
781-0080 Standard Edger Blade, 9”
29. 732-0188A Double-torsion Spring
Ref.
No.
Part Number Description
2
1
3
2
4
5
6
7
8
5
6
9
10
11
12
13
14
2
15
16
12
17
18
19
20
21
22
23
24
25
26
27
V-BELTS are specially designed to engage and
disengage safely. A substitute (non-OEM) V-Belt
can be dangerous by not disengaging completely.
29
28
