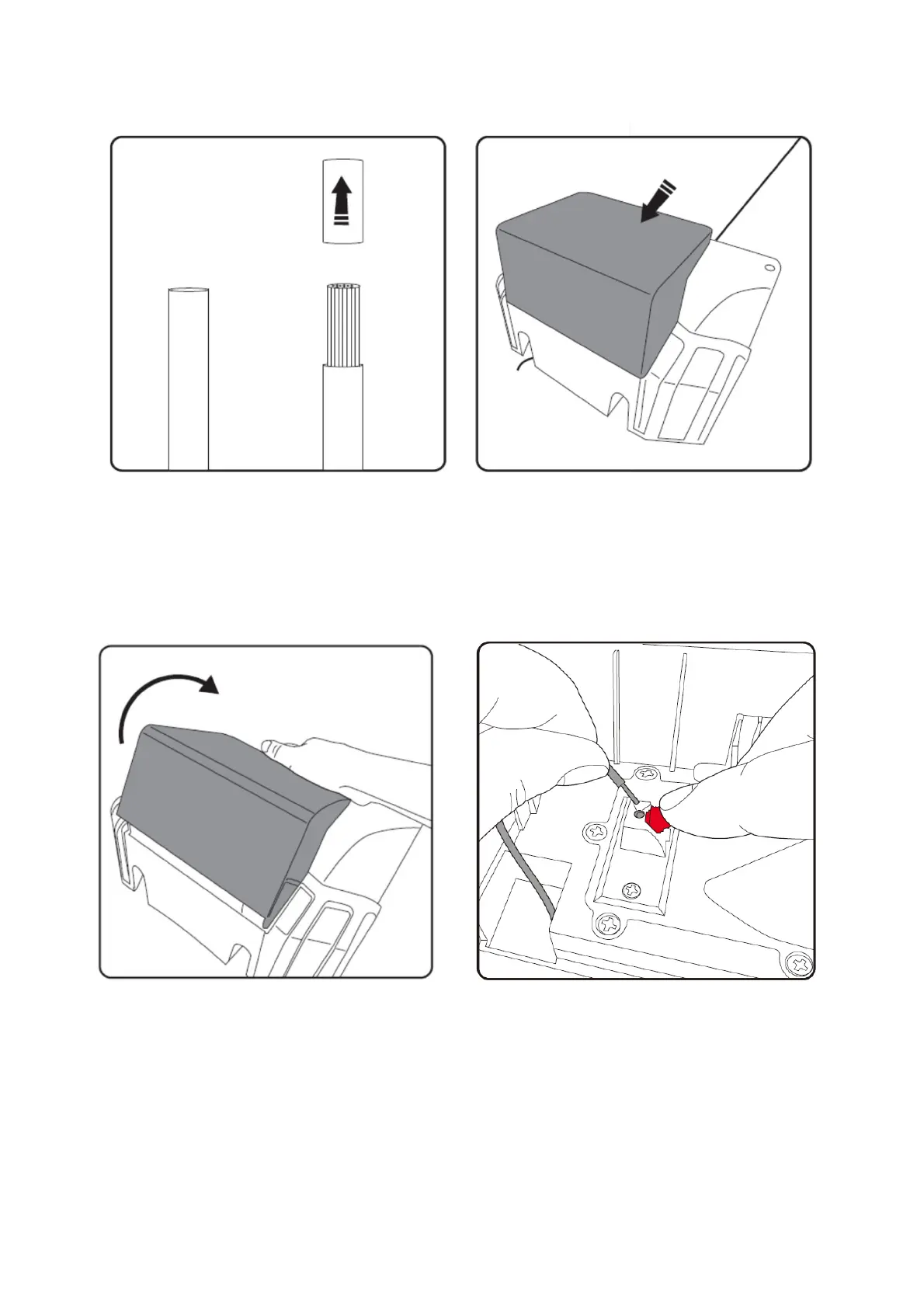

Youwillneedtostriptheplasticsheathfromthe
endofthewirebeforeconnecting.Twistingthe
exposedwiresafterexposinghelpsensureagood
connection.
Thechargingstandhasahoodattheback(shown
ingrey)thathingesforwards.


Pushthechargingstationhoodforward
touncover
thewiringterminals.
Thesprungterminalwillneedliftingtoexposethe
hole,ensurethewireisfullinsertedbeforereleasing
theredterminalclip.

