MTF DM2 600i - Page 71

71




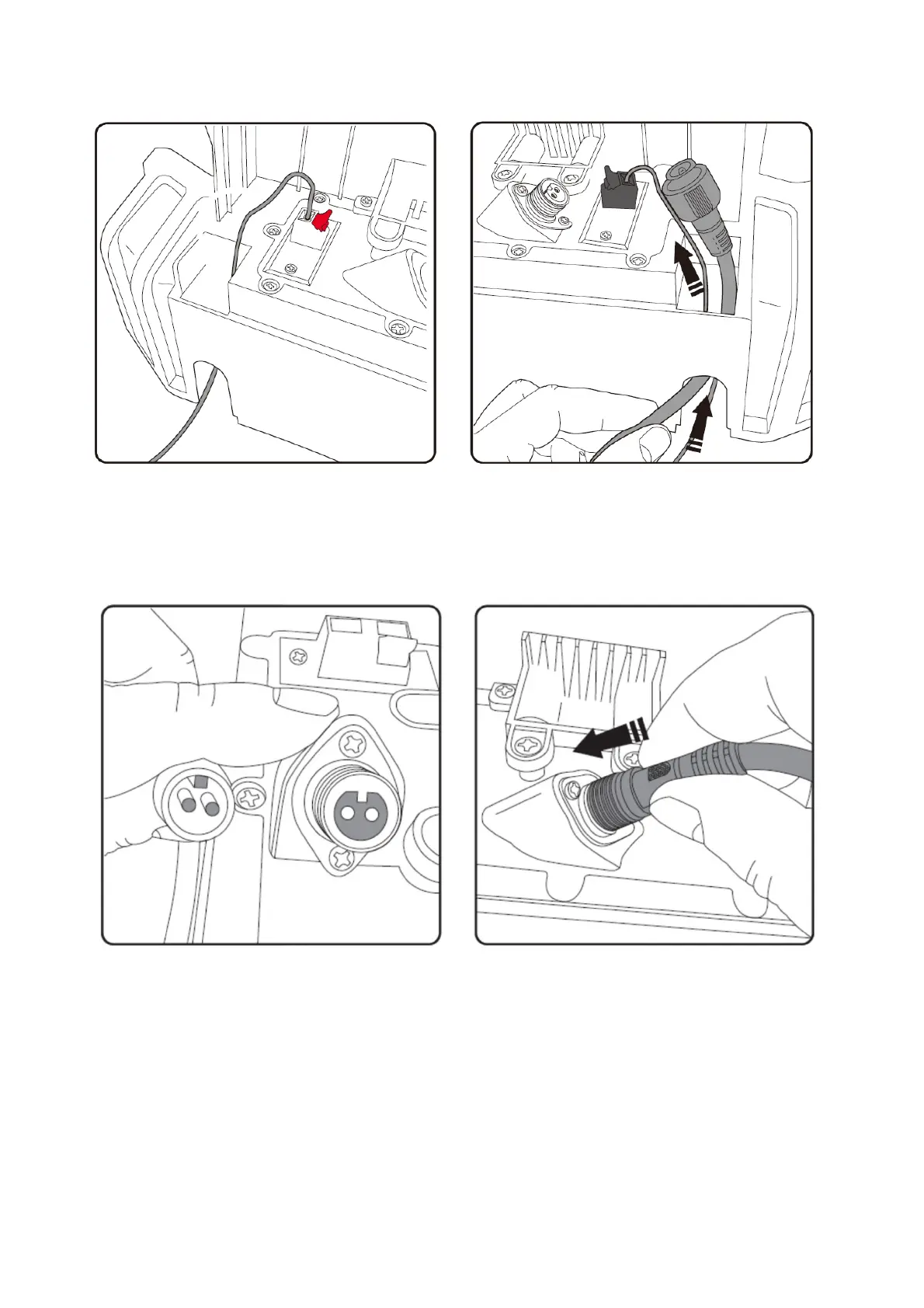

Whenyouhavecompletedyourboun darywireit
mustreturntothechargingstationandbefedup
throughtheunitandplugsinattheblackterminal.
Feedthepowerleadupthroughtheothersideof
thebasestation.


Payattentiontothecablefittings
asthereisa
keywayorientationdetailtoensurecorrect
connection.
Pushthepowercableintoplace.

