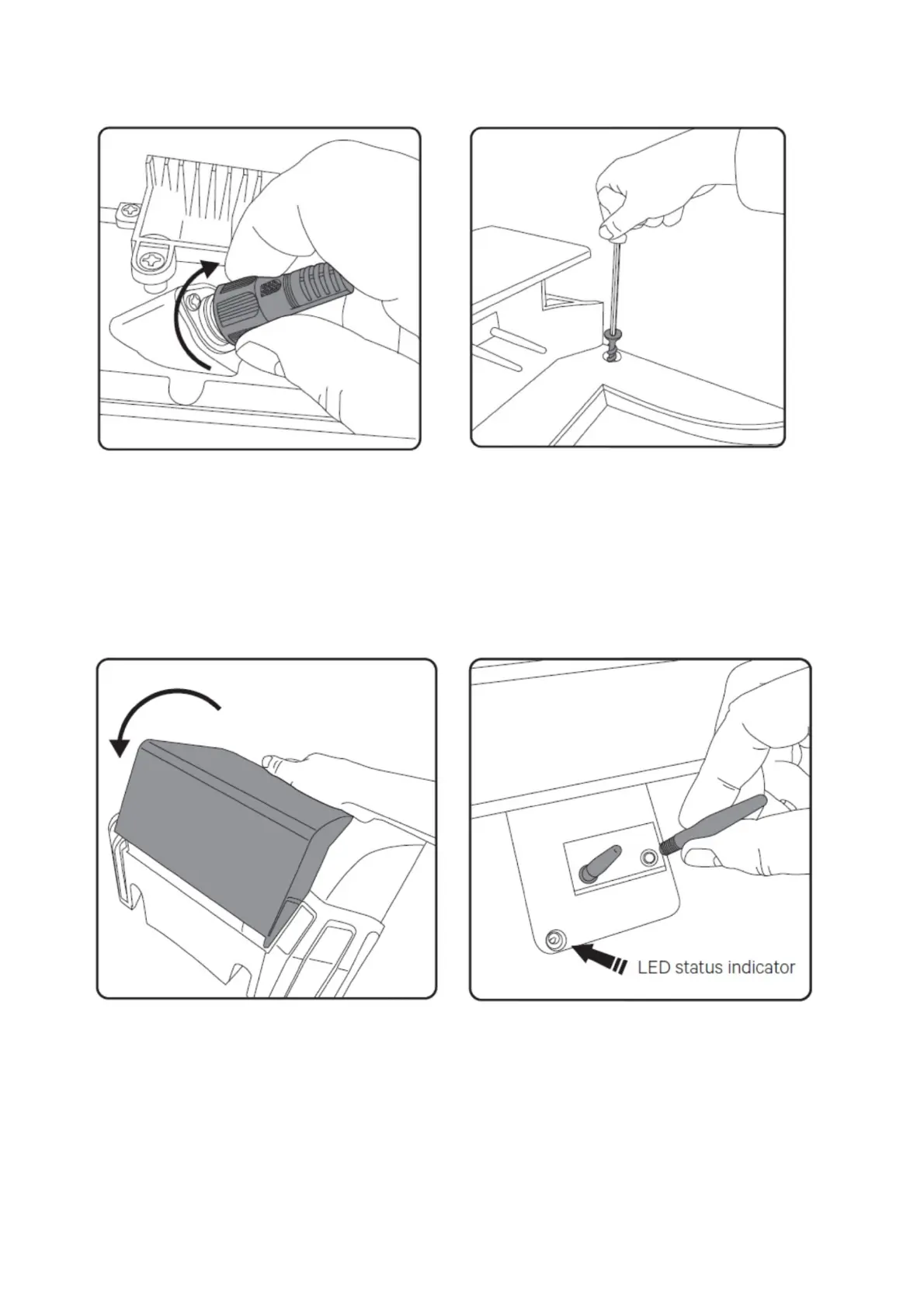

Thenscrewontheouterringtosecurethecablein
placeandpreventwateringress.
Oncethebasestationhasbeenfullywired,itcanbe
securedinplacewiththefourscrewsprovided.Use
theallenkeyprovidedtoscrewtheminsecurely
ensuringtheyare
fullyinsertedandflushwiththe
stationbase.Protrudingscrewscanhinderthe
mowerfromlocatingcorrectly.



Pushthecoverbacktoitsoriginalpositiontocover
thewiresandconnectionsfromwateringress.
Makingsurethepowerisswitchedoffatthesocket,
screwthetwochargingrods
intotheholesjust
belowthecoverofthebasestation.Note:Thisis
wheretheLEDstatusindicatorissituated.Seepage
83.

