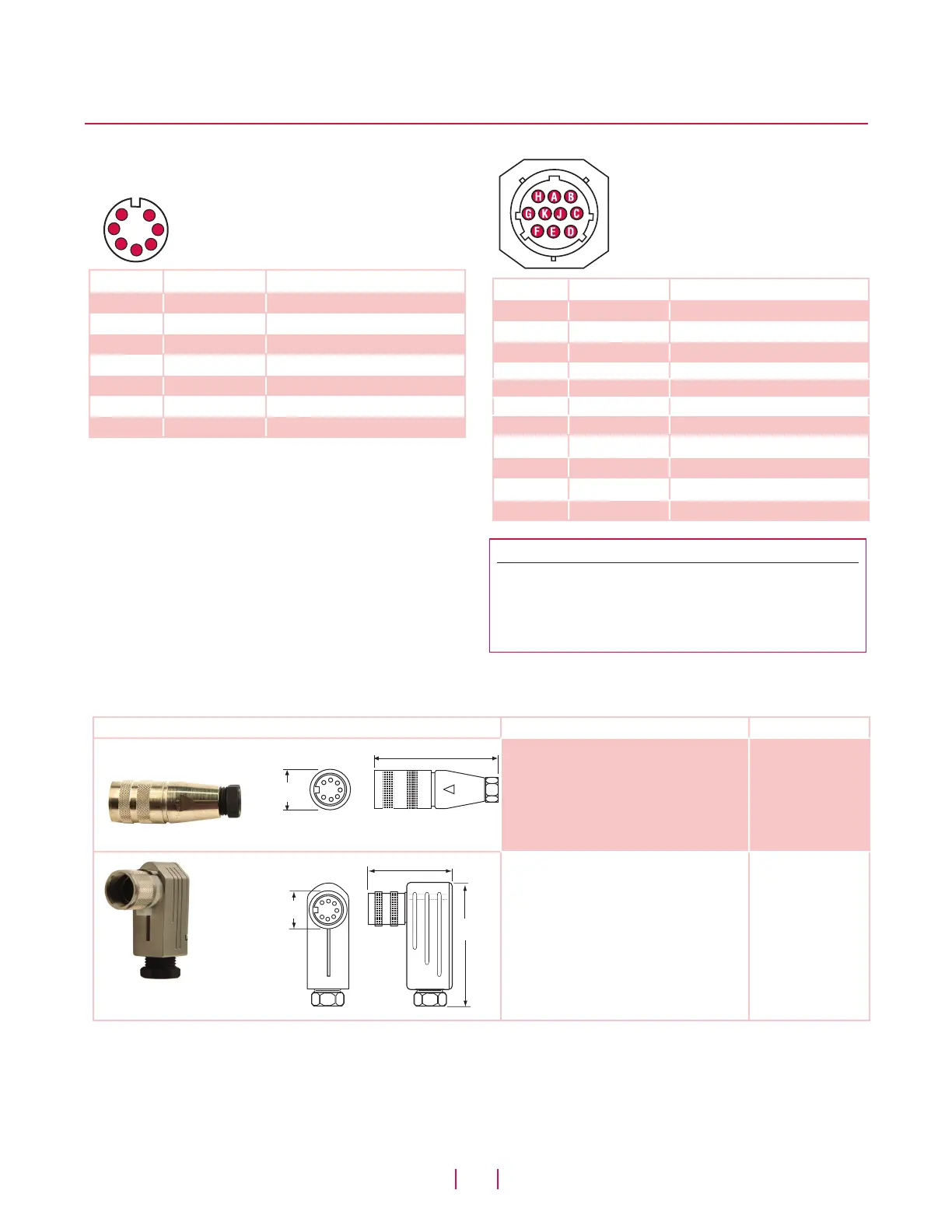

Connections and wiring
11
R-Series Models RP and RH Sensors
Connections and Wiring
STANDARD MALE 7-PIN DIN (D70) INTEGRAL CONNECTOR
WIRING
6
1
4
2
5
3
7
Male, 7-pin (D70) integral connector
(pin-out as viewed from the end of the sensor)
Pin no. Ext. cable Function / SSI outputs
1 Gray Data (-)
2 Pink Data (+)
3 Yellow Clock (+)
4 Green Clock (-)
5 Brown +24 Vdc (-15/+20%)
6 White DC ground (for supply)
7 N.C. N/A
OPTIONAL, MALE 10-PIN (MS) STYLE CONNECTOR WIRING
Male, 10-pin (MS) integral connector
(pin-out as viewed from the end of the
sensor)
Pin no. Ext. cable Function / SSI outputs
A White DC Ground
B - No connection
C Gray Data (-)
D Pink Data (+)
E Red +24 Vdc (-15 / +20%)
F - No connection
G Yellow Clock (+)
H Green Clock (-)
I - No connection
J - No connection
K - No connection
CABLE CONNECTOR OPTIONS (FIELD INSTALLABLE) 7-PIN DIN (D7) FEMALE
(Drawing dimensions are for reference only)
Connector and connector dimensions Description Part number
18 mm
(0.7 in.) dia.
54 mm
(2.1 in.)
Cable Connector, Female, Straight Exit
(Field installable)
7-Pin DIN (D70)
Mates with standard male (M16)
integral connector
560701
54 mm
(2.1 in.)
37 mm
(1.5 in)
18 mm
(0.7 in.) dia.
Cable Connector, Female, 90° Exit
(Field installable)
7-Pin DIN (D70)
Mates with standard male (M16)
integral connector
560779
Notes:
1. Sensor diagnostics LED's are not available with the MS
connector option.
2. MS style cable connector, part no.: 370013,
(field installed) mates with the integral MS connector.
