Maintenance
116 MTS Landmark™ Tabletop Load Units - Product Information
Prerequisites
You must have a filter kit that contains the necessary filter element replacement parts. The filter for the
Model 252.3x Servovalves is MTS part number 032-844-101. The filter for the revision G Model
252.2x/4x servovalves is MTS part number 100-098-436. MTS does not recommend field replacement
of filters in earlier revision servovalves.
Replace the Servovalve Filter Element

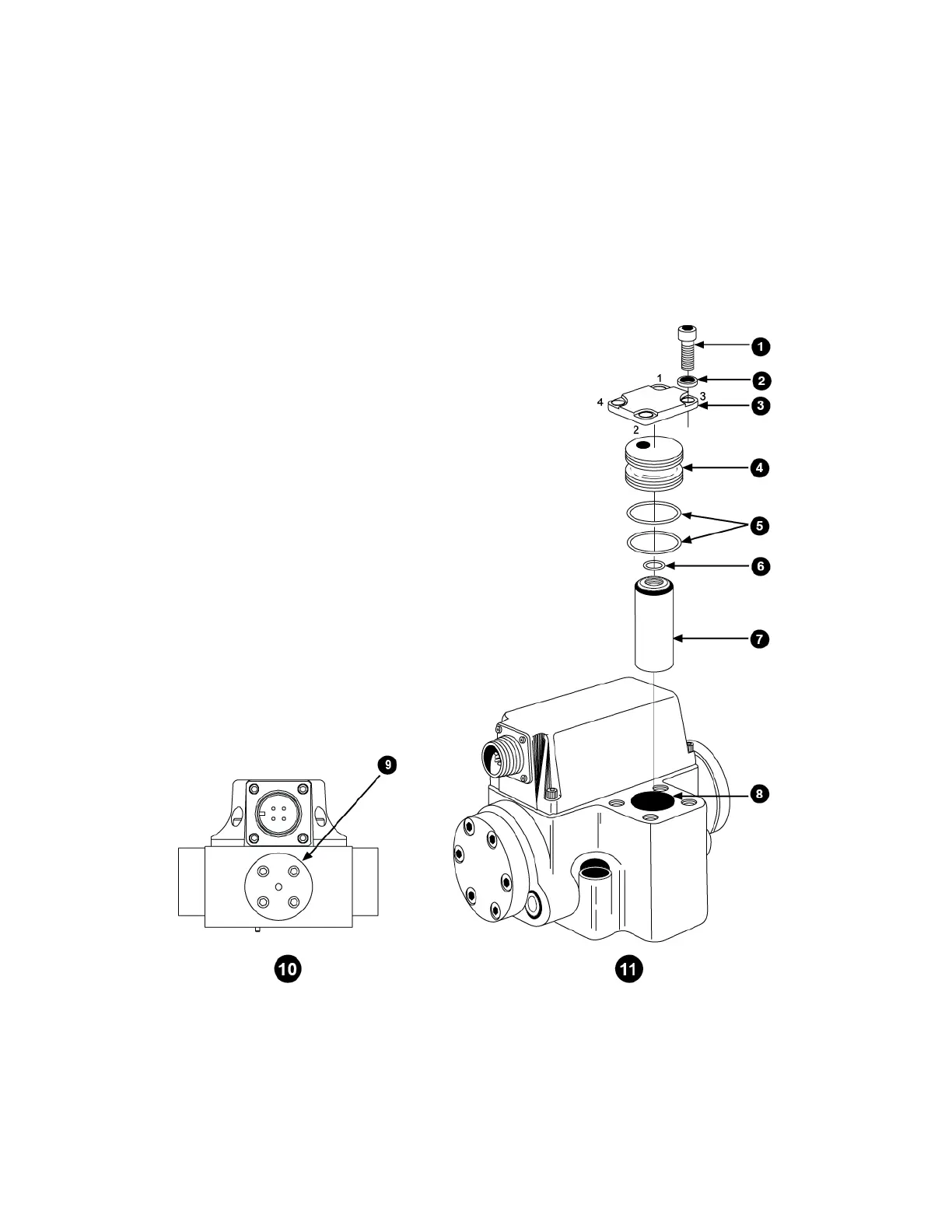

Refer to the following figure during the procedure. Care should be exercised to prevent dirt or other
contaminants from entering the servovalve body, filter passages, or manifold/actuator ports.
