Operation
MTS Landmark™ Tabletop Load Units - Product Information 69

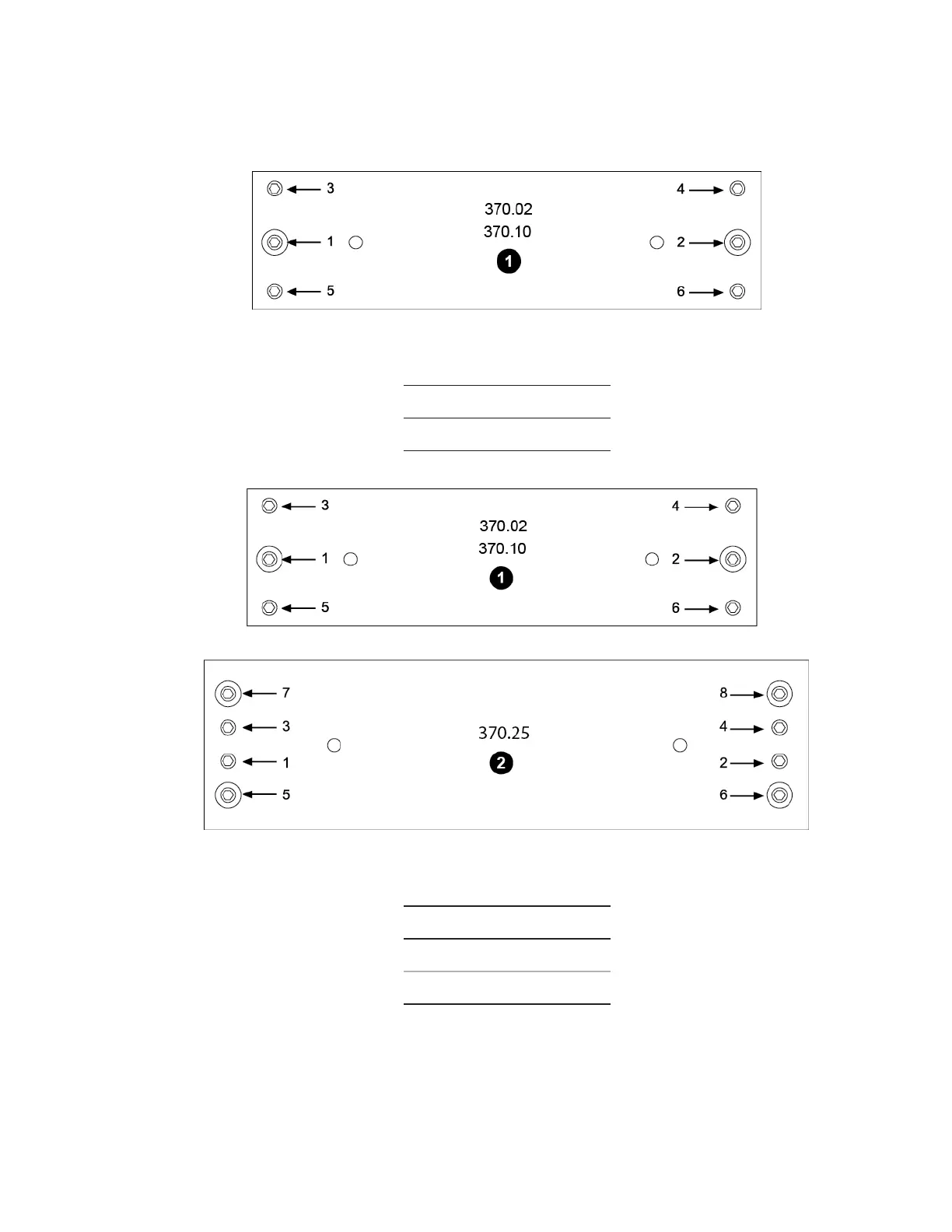

5. Loosen the crosshead locking bolts in 1/4 turn steps (counterclockwise). The following figure
shows the sequence of loosening the crosshead bolts.
Item Description
1 190 N·m (140 lbf·ft)
Crosshead Locking Bolt
Torque
Item Description
1 190 N·m (140 lbf·ft)
2 271 N·m (200 lbf·ft)
Crosshead Locking Bolt
Torque
6. Raise or lower the crosshead using the overhead crane.
7. Manually clamp the crosshead to lock the crosshead into position.
