8.7.2 Fuel – Draining
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 8–40 Nm
F30043446 1
Plug-in open-end wrench, 17 mm
F30028341 1
Engine oil
WARNING
Fuels are combustible and explosive.
Risk of fire and explosion!
• Avoid open flames, electrical sparks and ignition sources.
• Do not smoke.
• Wear protective clothing, protective gloves, and safety glasses / facial protection.

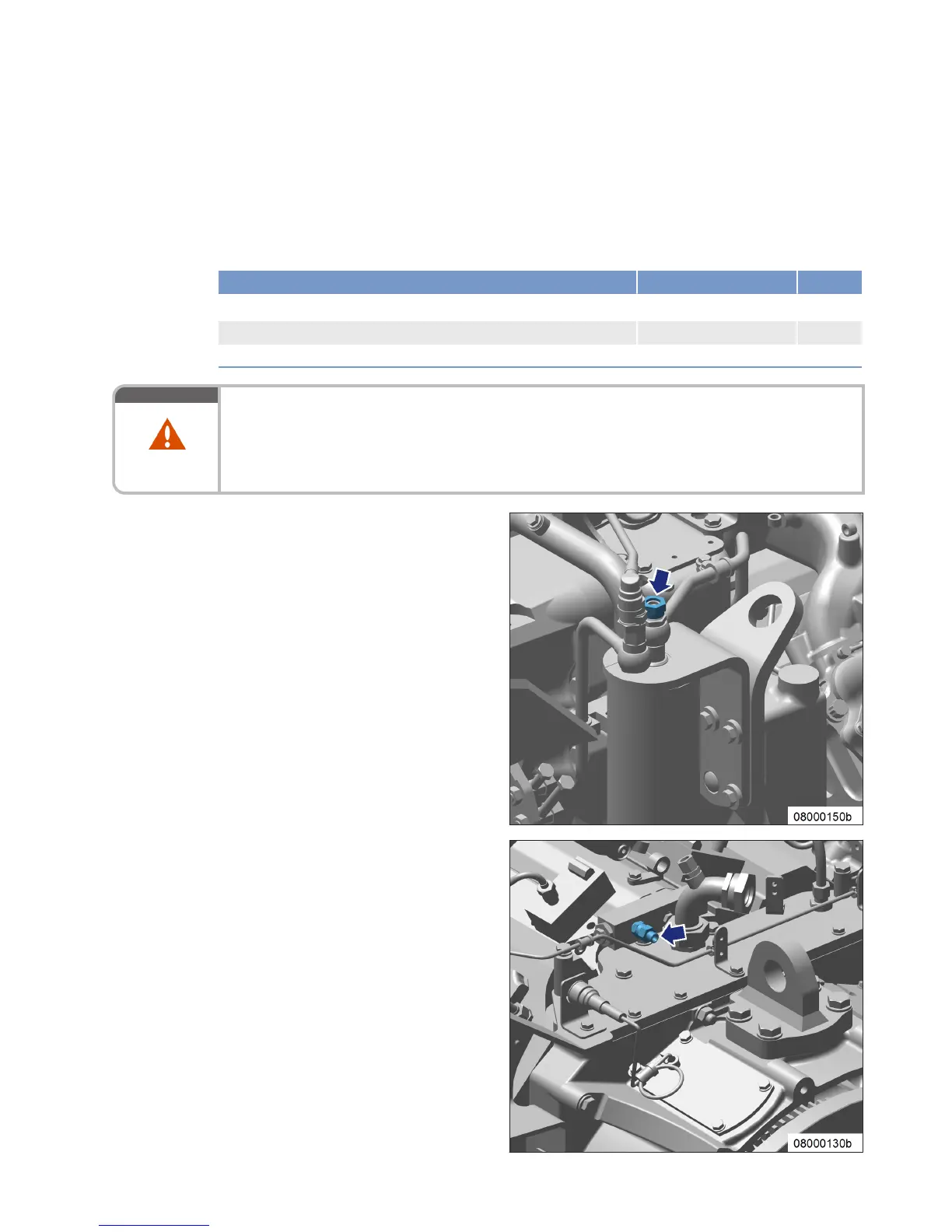

Draining fuel
1. Loosen nut (arrowed) on banjo union.
2. Disconnect fuel line on non-return valve (ar-
rowed).
3. Remove non-return valve and collect emerg-
ing fuel in a suitable container.
MS15018/03E 2016-02 | Fuel System | 97
