8.15 Coolant Circuit, General, High-Temperature Circuit
8.15.1 Draining and venting points
Figures also apply similarly to 12V and 16V.

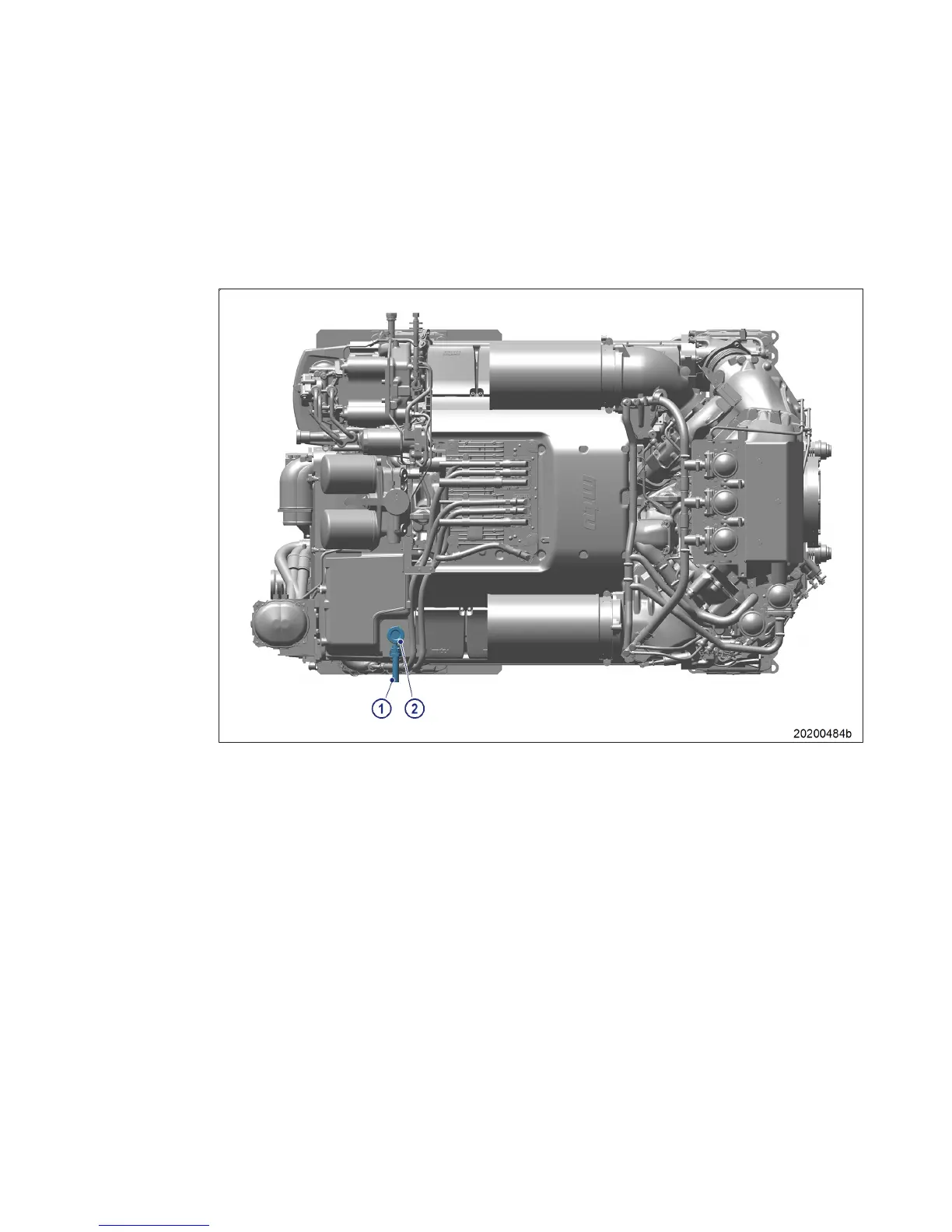

Plan view
1 Overflow line, expansion
tank
2 Filler neck
