3.3 Engine overview
Figures also apply similarly to 16V.

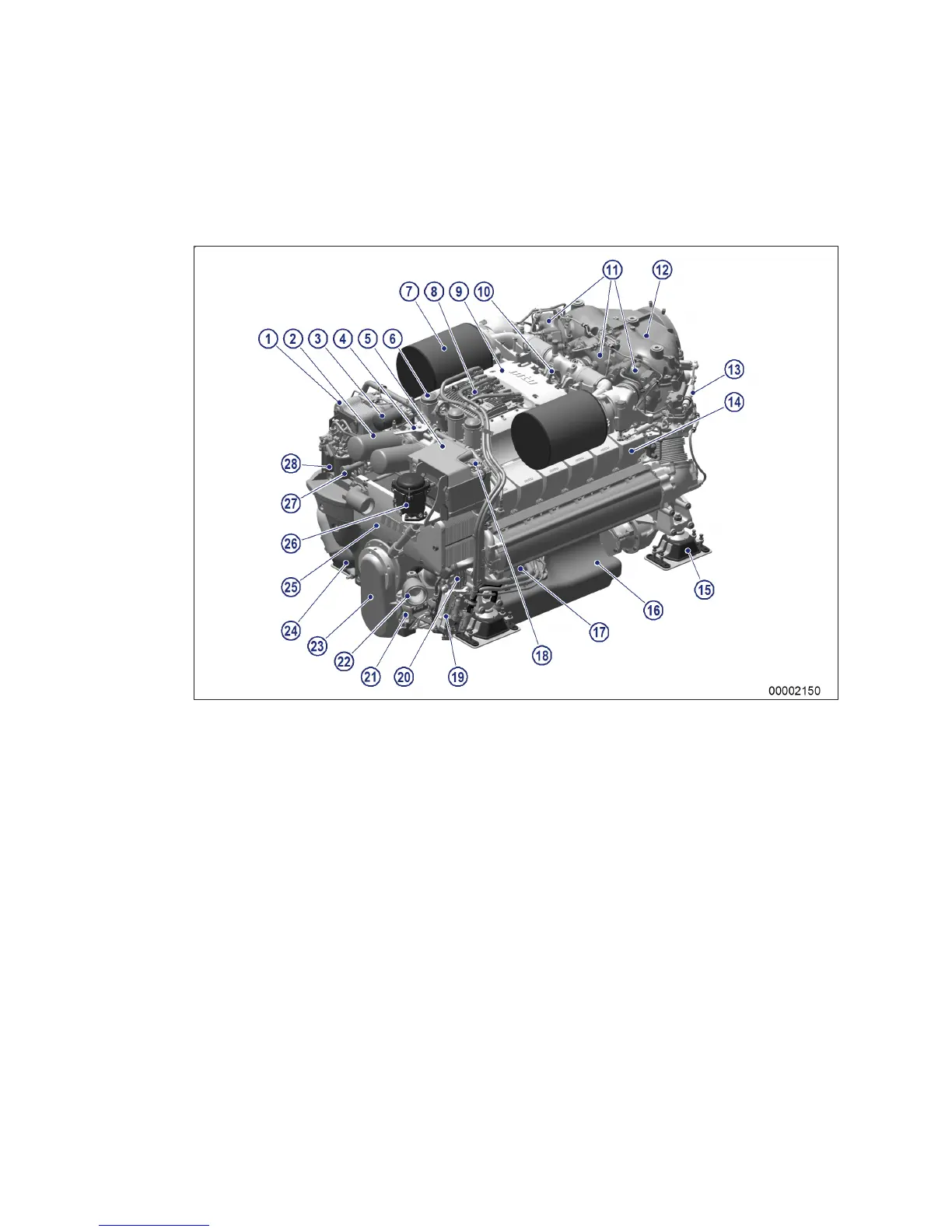

Engine overview – Free end
1 Engine oil heat exchanger
2 Engine oil filter
3 Coolant filter
4 Diverter lever for engine oil
filter
5 Coolant distribution housing
with integrated expansion
tank
6 Oil separator
7 Air filter (air intake)
8 Engine governor
9 Air collector housing
10 Engine lifting equipment
11 Exhaust turbocharger
12 Carrier housing
13 Actuating cylinder for ex-
haust flap
14 Cylinder head cover
15 Engine mounting
16 Oil pan
17 Battery-charging generator
18 Coolant filler neck
19 Engine Interface Module
EIM
20 Raw water connection to
gearbox cooling system
21 Raw water pump
22 Raw water connection from
overboard
23 Protective cover (belt pul-
ley)
24 Coolant pump
25 Plate-core heat exchanger
26 Centrifugal oil filter
27 Fuel priming pump
28 Fuel filter
KGS Free end
26 | General Information | MS150063/03E 2016-02
TIM-ID: 0000009987 - 007
