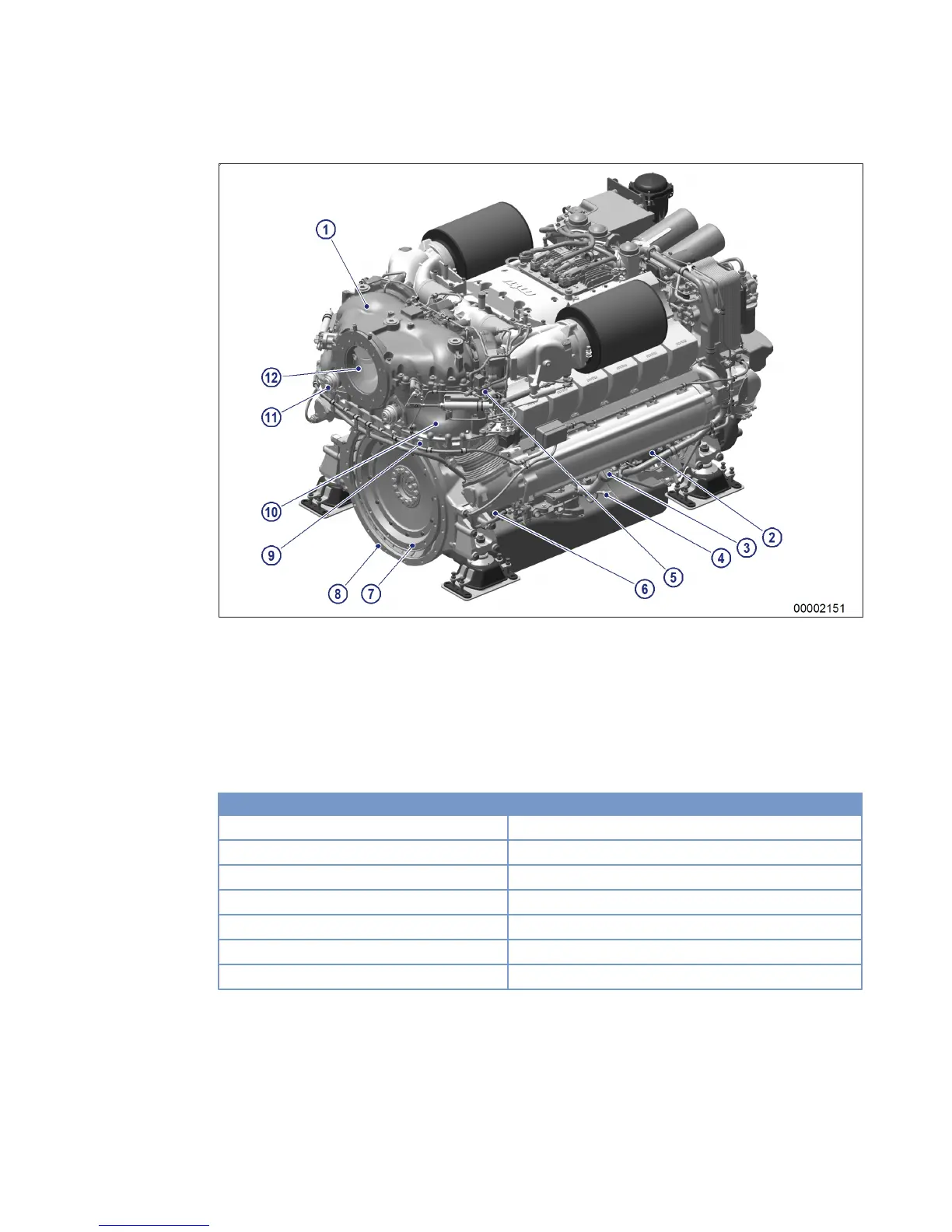

Engine overview – Driving end
1 Carrier housing upper sec-
tion
2 HP fuel pump
3 Oil filler neck
4 Oil dipstick
5 4-2 directional control valve
6 Electric starter
7 Flywheel
8 Flywheel housing
9 Carrier housing lower sec-
tion
10 Carrier housing middle sec-
tion
11 Bleeder valve
12 Exhaust outlet
KS Driving end
Engine model designation
Key to the engine model designations 12V/16V2000Mxyz
12/16 Number of cylinders
V Cylinder arrangement: V engine
2000 Series
M Application
x Application segment (4, 5, 6, 7, 9)
y Design status (0, 1, 2,...)
z Special features
