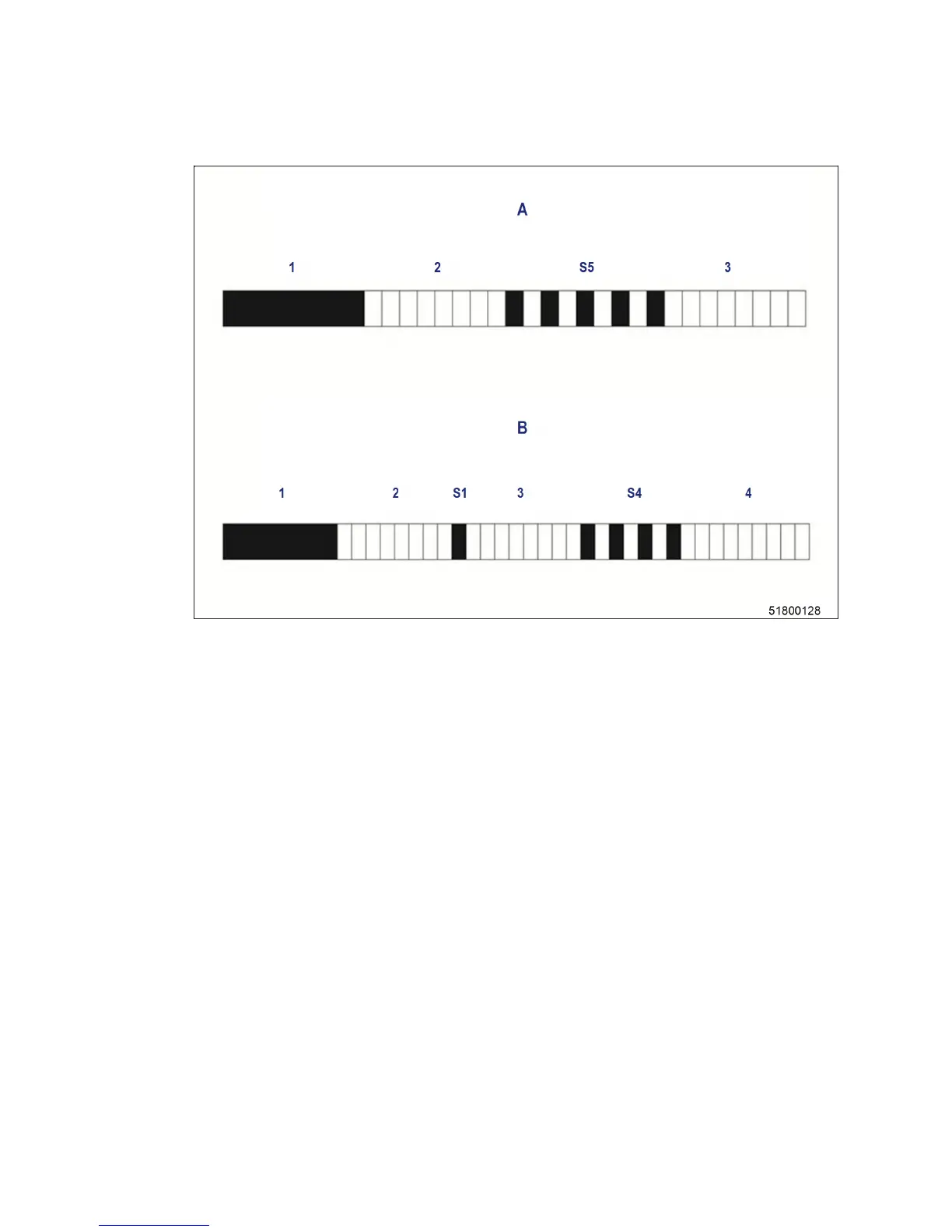

Sample flashing sequences
A Fuse S5 failure (1/2 second
steps)
B Fuse S1 and fuse S4 failure
(1/2 second steps)
Note:
These bit patterns are continuously transmitted.
The CAN message "Status of internal power supply" also contains information on the current path states of
the EIM.
