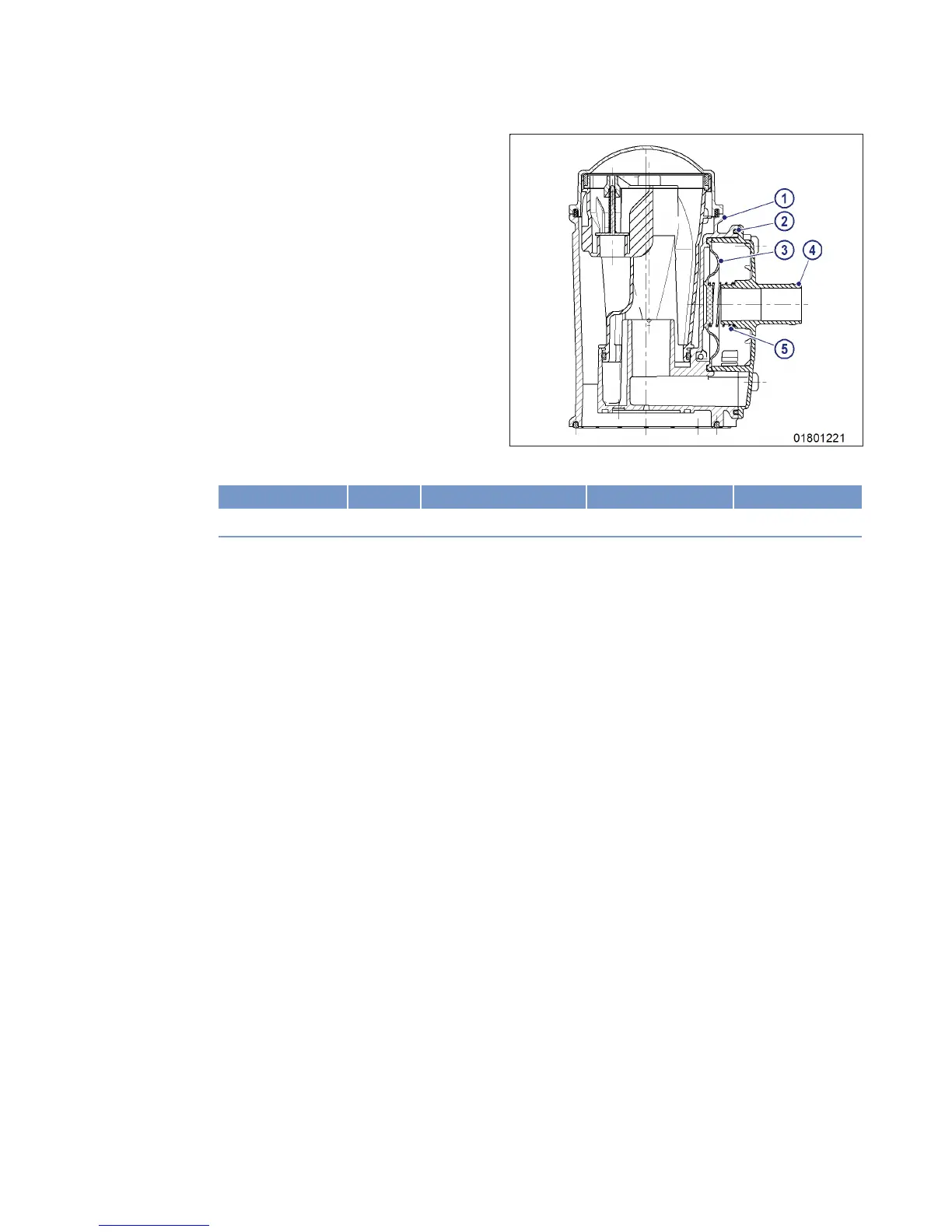

Checking diaphragm
1. Remove cover (4).
2. Remove spring (5), gasket (2) and dia-
phragm (3).
3. Check diaphragm (3) for damage, fit new
diaphragm if used one is damaged.
4. Install diaphragm (3) on housing (1).
5. Install new seal (2) and spring (5) together
with cover (4).
6. Use torque wrench to tighten the screws of cover (4) to the specified torque.
Name Size Type Lubricant Value/Standard
Screw Tightening torque (Engine oil) 10 Nm −2 Nm
7. Check diaphragms in further oil separators in the same way.
