7.14 Lube Oil System, Lube Oil Circuit
7.14.1 Engine oil – Level check
Preconditions
☑Engine is stopped and starting disabled.
Oil level check prior to engine
start
1. Withdraw oil dipstick from guide tube and
wipe it.
2. Insert oil dipstick into guide tube up to the
stop, withdraw after approx. 10 seconds
and check oil level.

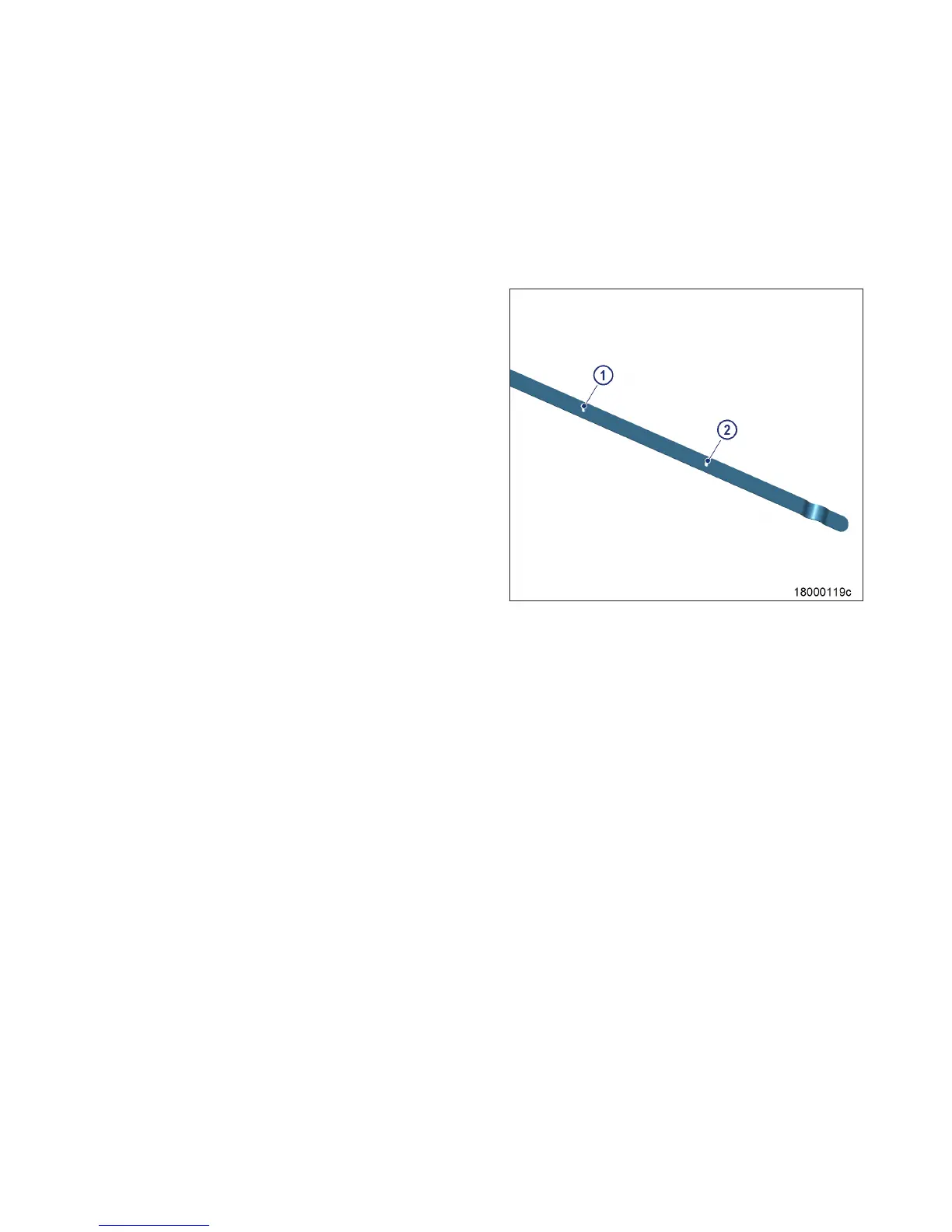

3. Oil level must be between "min." (2) and
"max." (1) marks.
4. Top up with oil up to the "max" (1) mark
(→ Page 98) if required.
5. Insert oil dipstick into guide tube up to the
stop.
Oil level check after the engine is stopped
1. 5 minutes after stopping the engine, remove oil dipstick from the guide tube and wipe it.
2. Insert oil dipstick into guide tube up to the stop, withdraw after approx. 10 seconds and check oil level.
3. Oil level must be between "min." and "max." marks.
4. Top up to "max." if required (→ Page 98).
5. Insert oil dipstick into guide tube up to the stop.
