Installing humidity sensor
Note: Apply assembly compound for O-ring sparing-
ly.

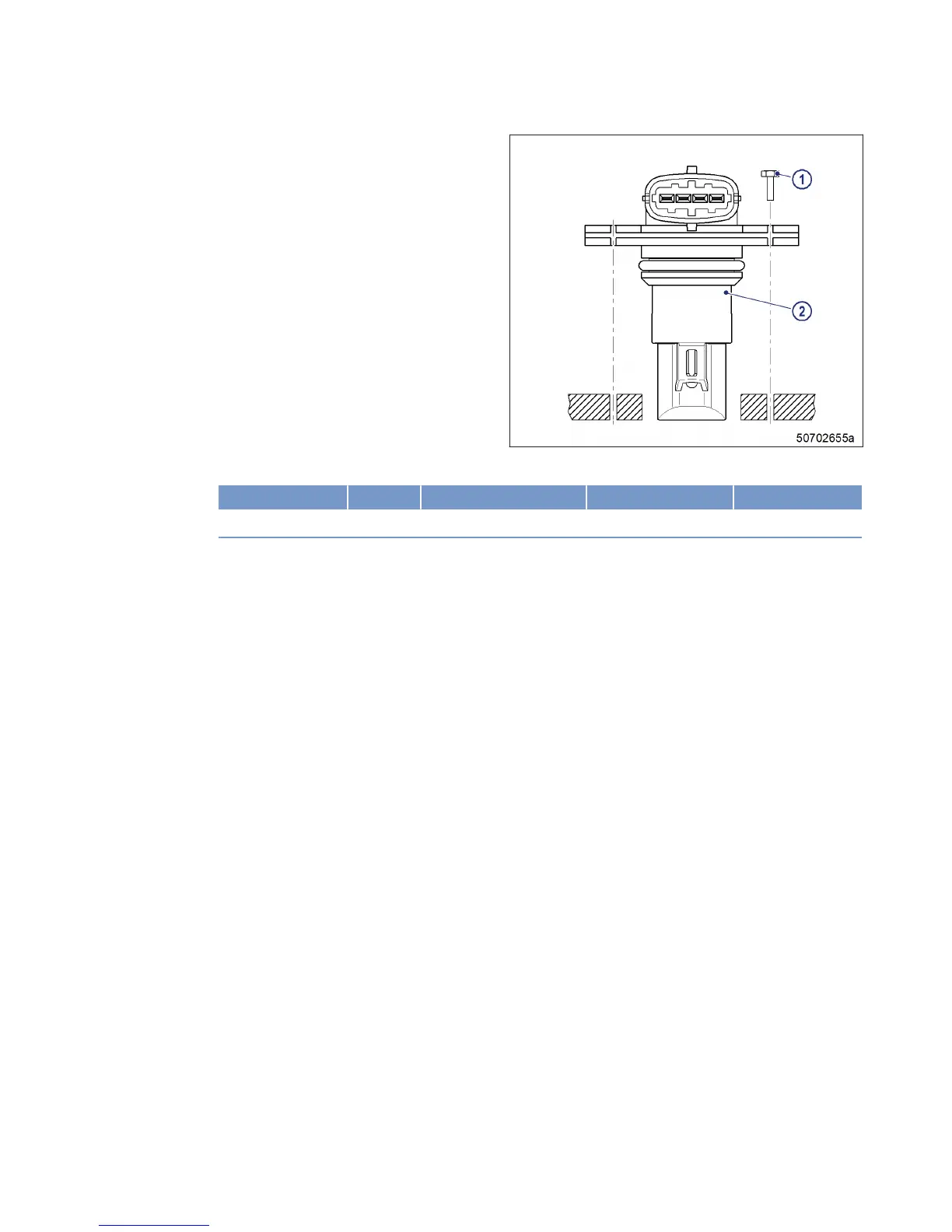

1. Insert sensor (2) in bore, ensuring correct in-
stallation position.
Note: Observe air flow direction.
2. Screw in screws (1).
3. Use torque wrench (1) to tighten screws to specified tightening torque.
Name Size Type Lubricant Value/Standard
Sensor M6 Tightening torque 12 Nm +5 Nm
4. Fit male connector and latch.
