MTU 16V2000S96 - Nox Sensor - Replacement

6.17.4 NOx sensor – Replacement
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 8–40 Nm
F30043446 1
Torque wrench, 20–100 Nm
F30026582 1
Ratchet adapter
F30027340 1
Assembly compound (Molykote P 37)
50564 1
NOx sensor
(→ Spare Parts Catalog) 1
WARNING
Hot components/surfaces.
Risk of burns!
• Allow the engine to cool down to below 50 °C before beginning work.
• Wear suitable protective equipment/thermal gloves.
• Avoid unprotected contact with hot surfaces.
NOTICE
High voltage.
Risk of damage to components!
• Switch off ignition before replacing components.
NOTICE
Ceramic cell breakage due to shock or impact.
Risk of damage to components!
• Avoid shocks and impacts.
• Exercise extreme care when handling sensors.

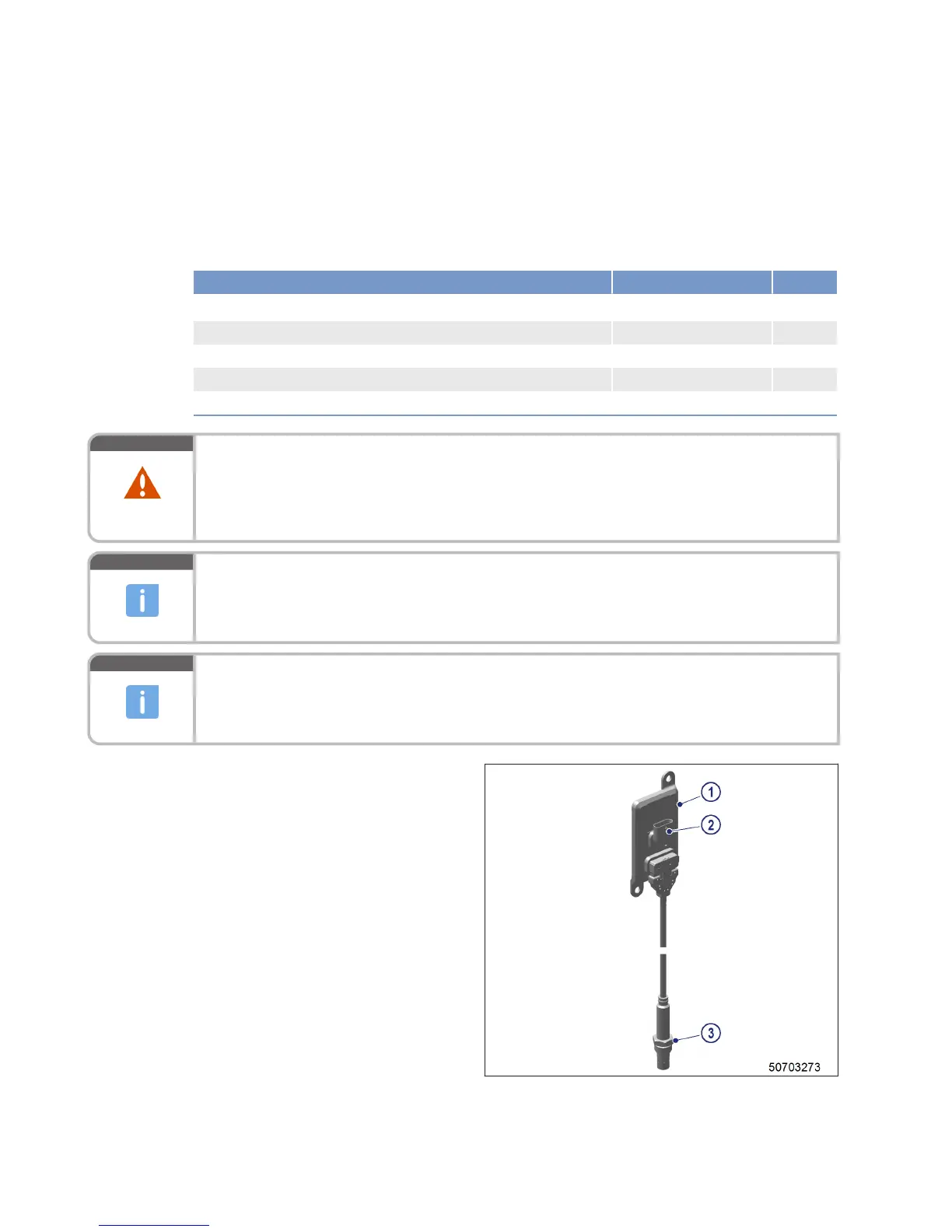

Removing NOx sensor
Note: Observe arrangement and position of sensor
(→ Page 139).
1. Disconnect and remove male connector (2)
from control unit (1).
2. Unscrew control unit (1) at the eyelets.
3. Remove sensor (3).
142 | Task Description | MS150094/02E 2015-05
