Product Summary 29
2.1.4 Peripheral Interface Modules (PIMs)
PIMs for use with processor printed circuit board MPU 23 and MPU 27

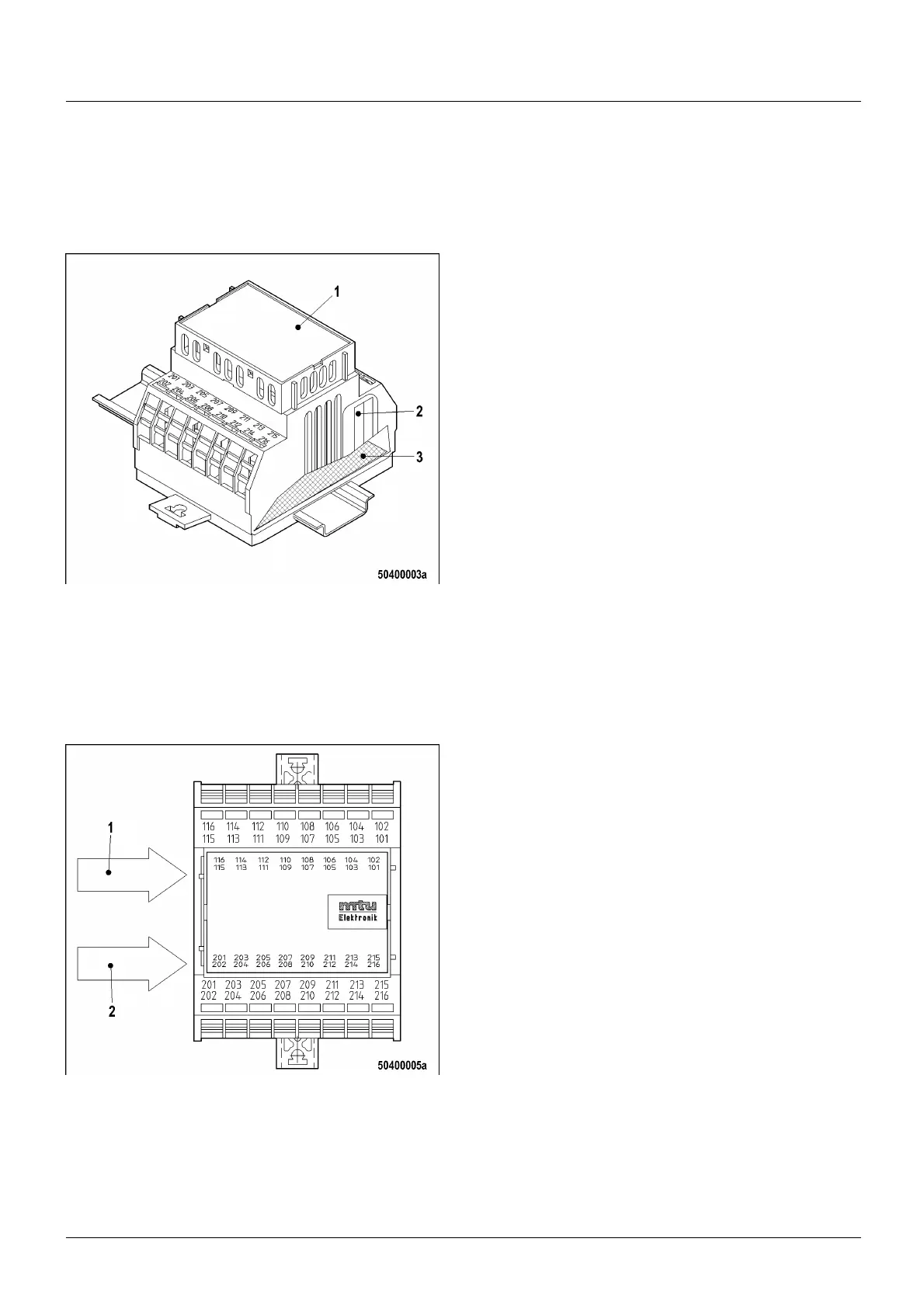

PIM design
1 Module cassette 1
2 Basic module 1
3 Printed circuit board
PIM 601/602 comprises:
Module cassette 1 (1) to accommodate one MPU 23, MPU 27 and one PIM printed circuit board.
Basic module 1 (2) with printed circuit board COB 1-0X (3).
Printed Circuit Board SCB 3
Slots and terminals
1Slot1
2Slot2
Slot 1 is reserved for the microprocessor card (MPU 23 and MPU 27). All other slots may
be populated with PIM printed circuit boards.
Example: The "n" in "n09" stands for the slot and "09" designates the terminal. "209" means: Slot 2, terminal 9.
The following information is transmitted via the optional interface modules PIM 601 and PIM 602:
Analog operational data
MS15009/00E 06-09 ©MTU
