34 Product Summary
2.2 Engine Overview

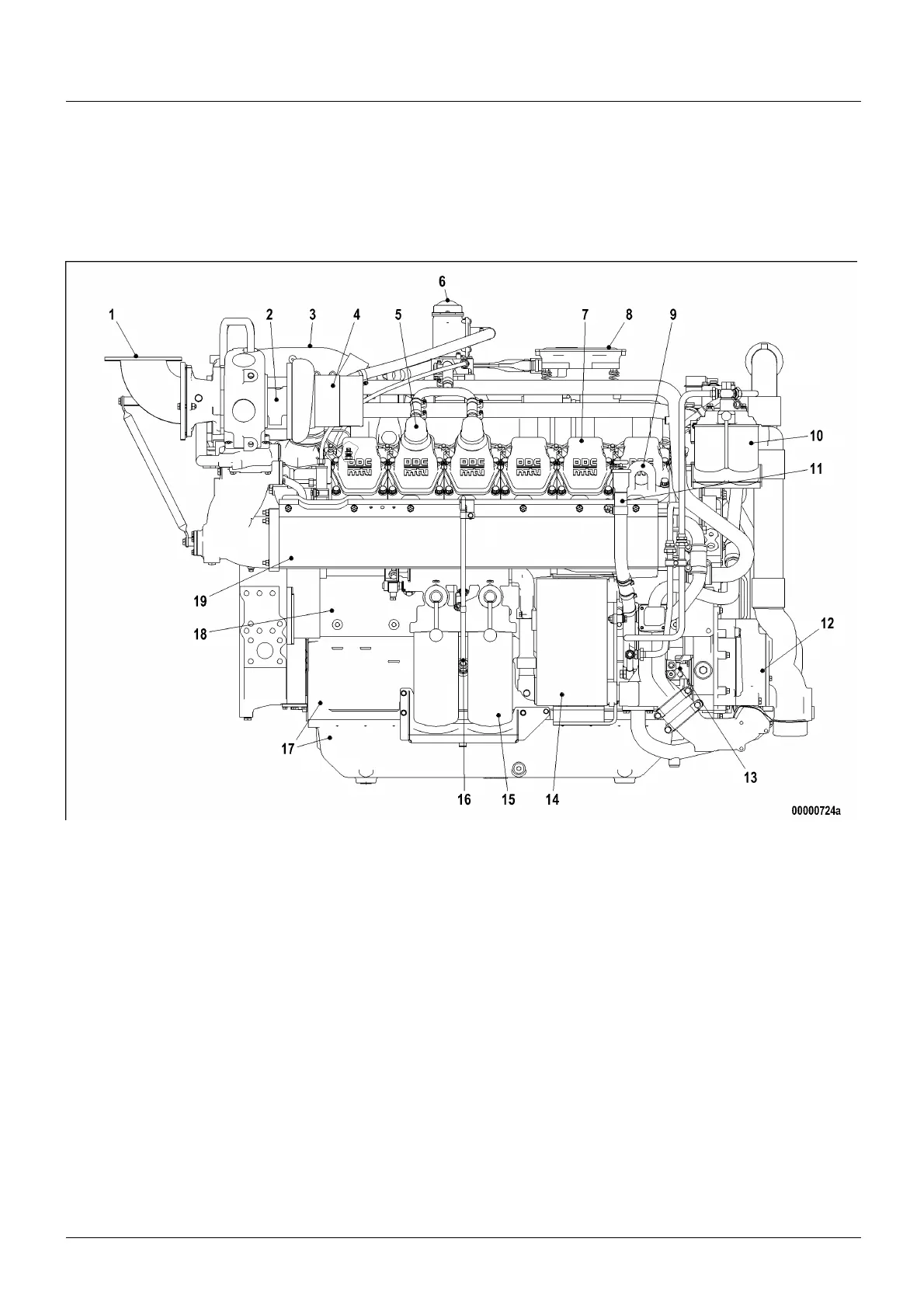

2.2.1 Engine layout
Illustrations are also applicable to 16 V
1 Exhaust outlet
2 Exhaust turbocharger
3 Intercooler
4 Air intake connection
5 Crankcase ventilation
6 Crankcase ventilation
7 Cylinder head cover
8 Electronic equipment
9 Engine lifting device
10 Fuel duplex filter
11 Oil filler neck
12 Charge-air coolant pump
13 Fuel pump
14 Oil cooler
15 Oil filter
16 Oil dipstick
17 Oil pan
18 Crankcase
19 Exhaust manifold
MS15009/00E 06-09 ©MTU
