6.3.6 Spark plug connector – Installation
Preconditions
☑Engine is stopped and starting disabled.
☑Open protective packing of new spark plug connector only immediately prior to installation.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 10-60 Nm
F30452769 1
Spark plug connector with ignition line
(→ Spare Parts Catalog)
tab washer
(→ Spare Parts Catalog)
Sealing ring
(→ Spare Parts Catalog)
DANGER
Live components, flash-over.
Risk of serious injury - danger to life!
• Always wear electrical gloves (class 4 minimum) when touching the ignition cable in operation.
WARNING
Component is hot.
Risk of burning!
• Wear protective gloves.
WARNING
Compressed air gun ejects a jet of pressurized air.
Risk of injury to eyes and damage to hearing, risk of rupturing internal organs!
• Never direct air jet at people.
• Always wear safety goggles/face mask and ear defenders.

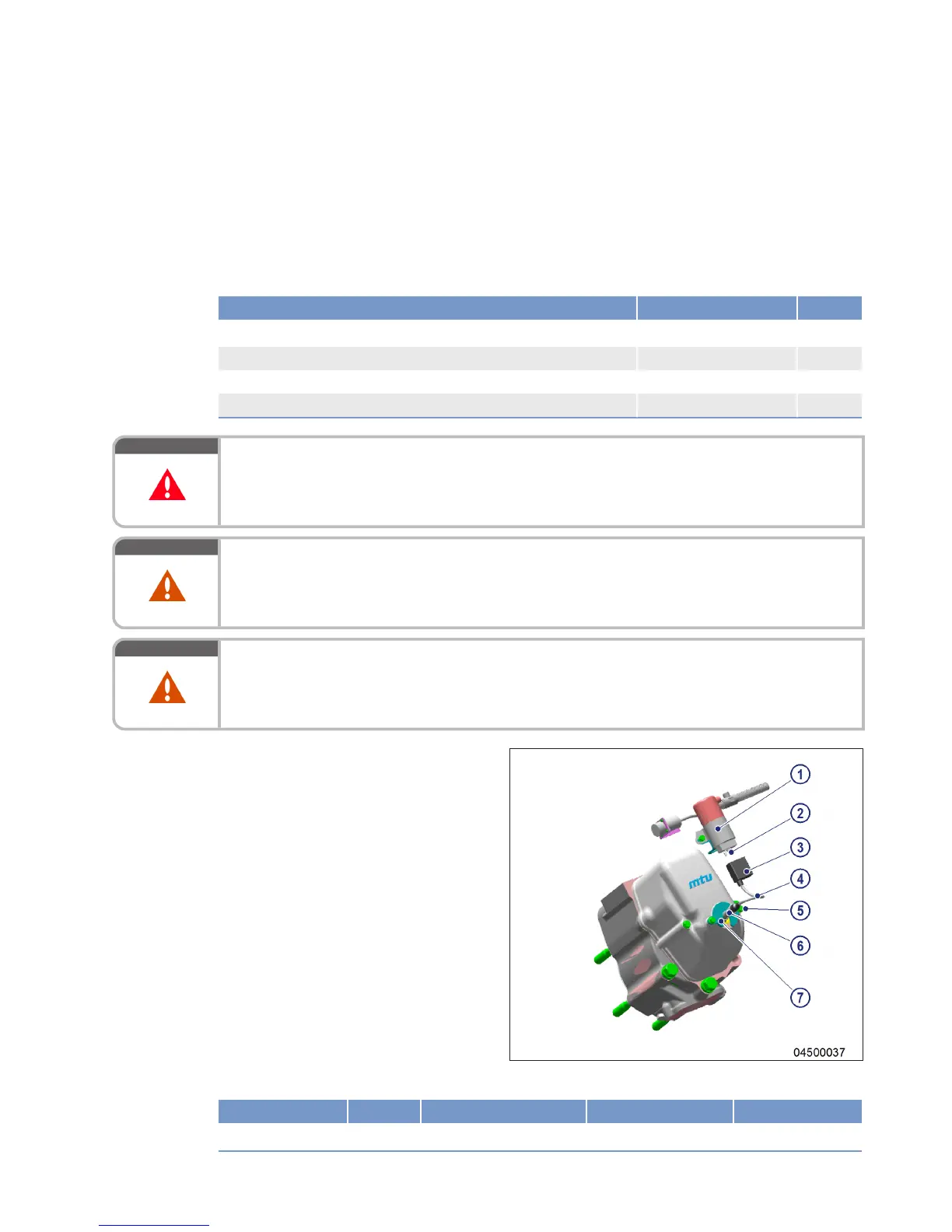

Spark plug connector – Installa-
tion
1. Clean sleeve and install new sealing ring in
sleeve of ignition cable.
2. Fit spark plug connector (6) with ignition
cable (4) on spark plug.
3. Fit tab washer (7) on cylinder head cover.
4. Install screw (2) with spring washer onto ignition coil (1).
Name Size Type Lubricant Value/Standard
Screw M6 Tightening torque 10 Nm
MS150033/05E 2013-10 | Task Description | 147
TIM-ID: 0000042718 - 001
