2.6.2 Control cabinet MIS – Overview

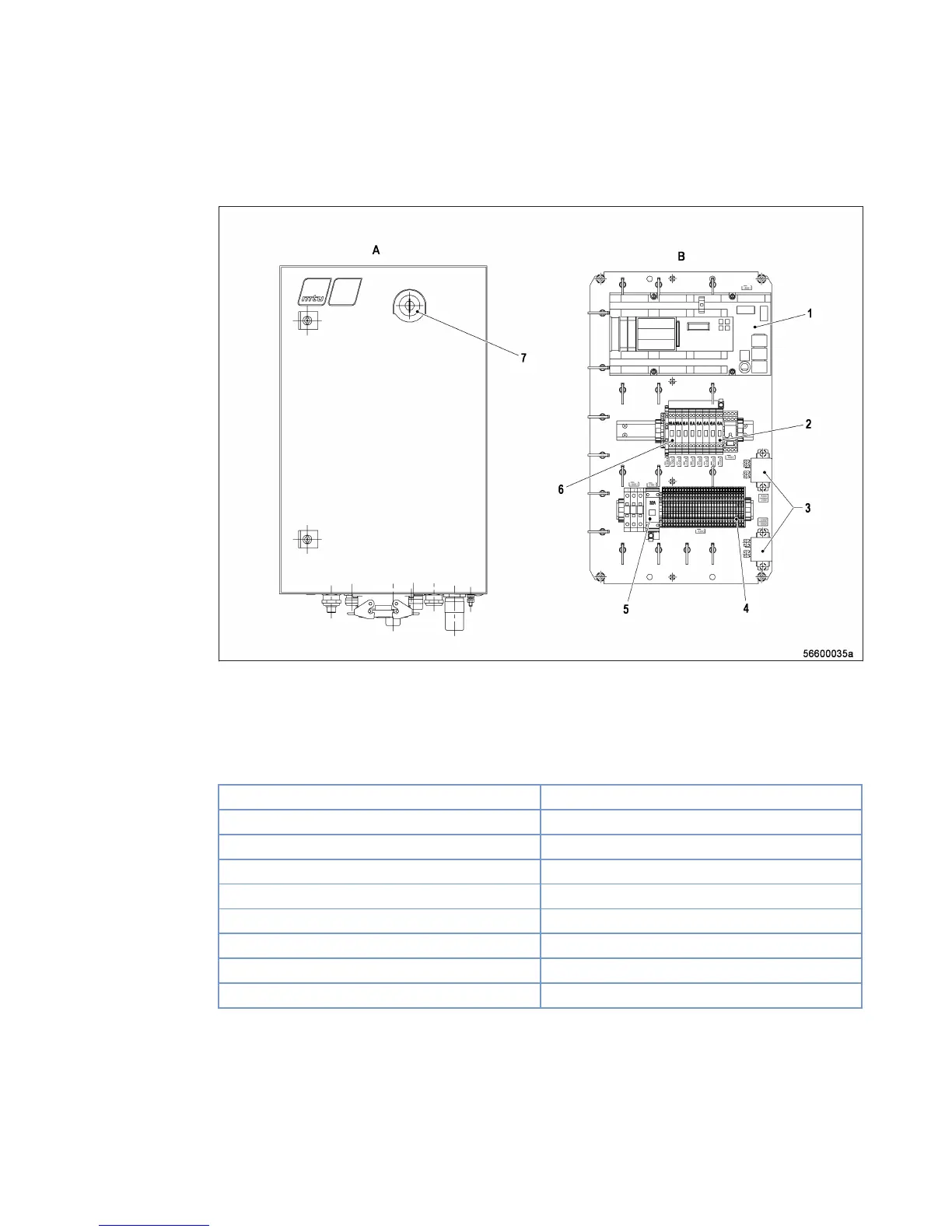

Phase 3 gas engine control cabinet MIS – Overview
A Control cabinet door, ex-
ternal side
B Mounting plate
1 SAM
2 Automatic cutout 6A
3 Relay
4 Terminal block
5 Automatic cutout 32A
6 Automatic cutout 16A
7 Emergency stop (key
switch)
Fuses
F001 Starter A bank, starter B bank
F002 Throttle A bank, throttle B bank
F003 Ignition system
F004 Anti knock control AKR
F005 Emergency stop system
F006 TecJet50+
F007 SAM
F008 ADEC (ECU 7), EMU
F009 Bypass throttle
