Mueller DH-5 - DH-5 Drilling Machine Parts; Parts List

MUELLER
®
DH-5 / EH-5 Drilling Machines

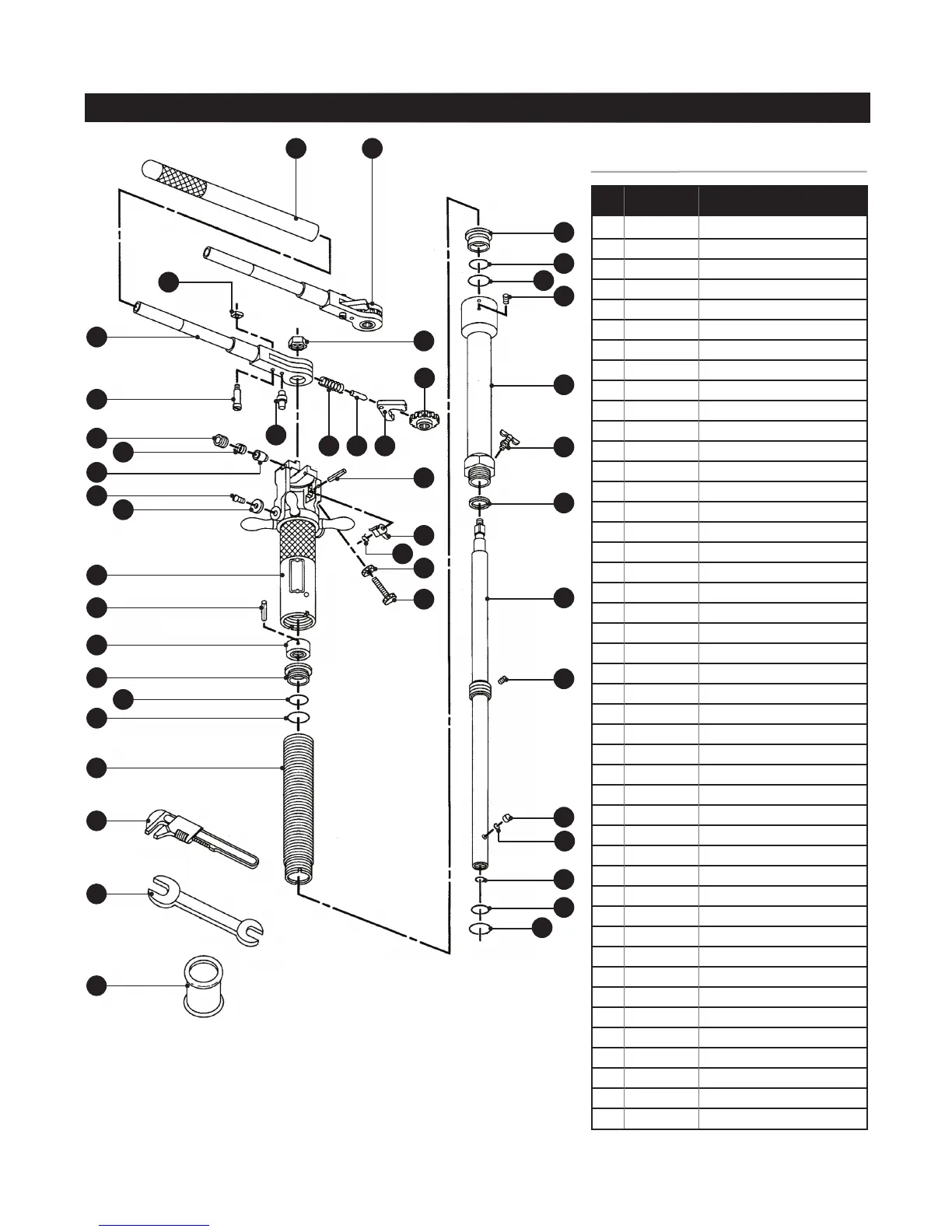

DH-5 Drilling Machine Parts
6
parts list
3
39
2
41
1
26
40
38
37
35
36
34
33
32
31
30
14
43
29
28
27
4 5 6
7
42
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
44
*Order both parts when replacing either one.

number and model number of machine)
NOTE: These illustrations are for parts identification only. DO NOT
use these illustrations for assembly or disassembly of machine.
Mueller Co. offers a machine repair service. Contact Mueller Customer
Service Center for details.
 ID Partno. Partname
 1 86391 HandleExtension
 2 85308 RatchetHandle
 3 46029 RetainerNut
 4 40007 Spring
 5 40006 SpringPin
 6 40004 RatchetDog
 7 40137 RatchetWheel
 8 502027 Rollpin
 9 502025 PivotArm
 10 502026 PivotArmSpring
 11 502029 LockNut
 12 502028 OperatingScrew
 13 503319 BodyBushing
 14 79268 BoringBarO-ring(6)
 15 500652 O-ring
 16 301170 BodySetScrew
 17 503318 Body
 18 40870 BleederValve
 19 33278 BodyGasket(2)
 20 580991 BoringBarComplete
 21 500653 RetainingScrew
 22 500654 RetainerScrew
 23 500655 Screen
 24 51427 FreezePlug
 25 78827 BoringBarO-ring
 26 88366 CuttingGrease
 27 58196 Wrench
 28 91664 AdjustableWrench
 29 89276 Cylinder
 30 526254 CylinderBushing
 31 580992 FrictionCollar
 32 503324 Rollpin
 33 580994 FeedTube&YokeComplete
 34 50133 Washers
 35 79745 RetainerScrews
 36 500851 Detents
 37 59810 DetentSprings
 38 305006 DetentRetainerScrews
 39 40139 Stud
 40 40138* Bolt
 41 80111 HandleBar
 42 46255* Nut
 43 48175 O-ring
 44 45374 O-ring(3)
 45 680352 StorageChest(notshown)
