5 Installation instructions
5.1 Console and computer
The basic console [5] must be mounted vibration-free and electroconductive to the cabin on the driver's right-hand side
and within his visual range and reach. The distance to the radio or to the radio antenna should be at least 1 m.
Attach the bracket [4] to the tube of the basic console.
Mount the cap profile rail [2] on to the bracket. Push the SPRAYDOS computer [1] from above on to the profile and
secure using the wing nuts [3].
The console can be swivelled to allow the display to be adjusted to the optimal angle of vision which lies between 45° and
90° from below.
Please ensure that the computer casing [1] has a lead connection to the tractor's chassis above the
console [2-5]. When mounting, remove the paint from the mounting points.

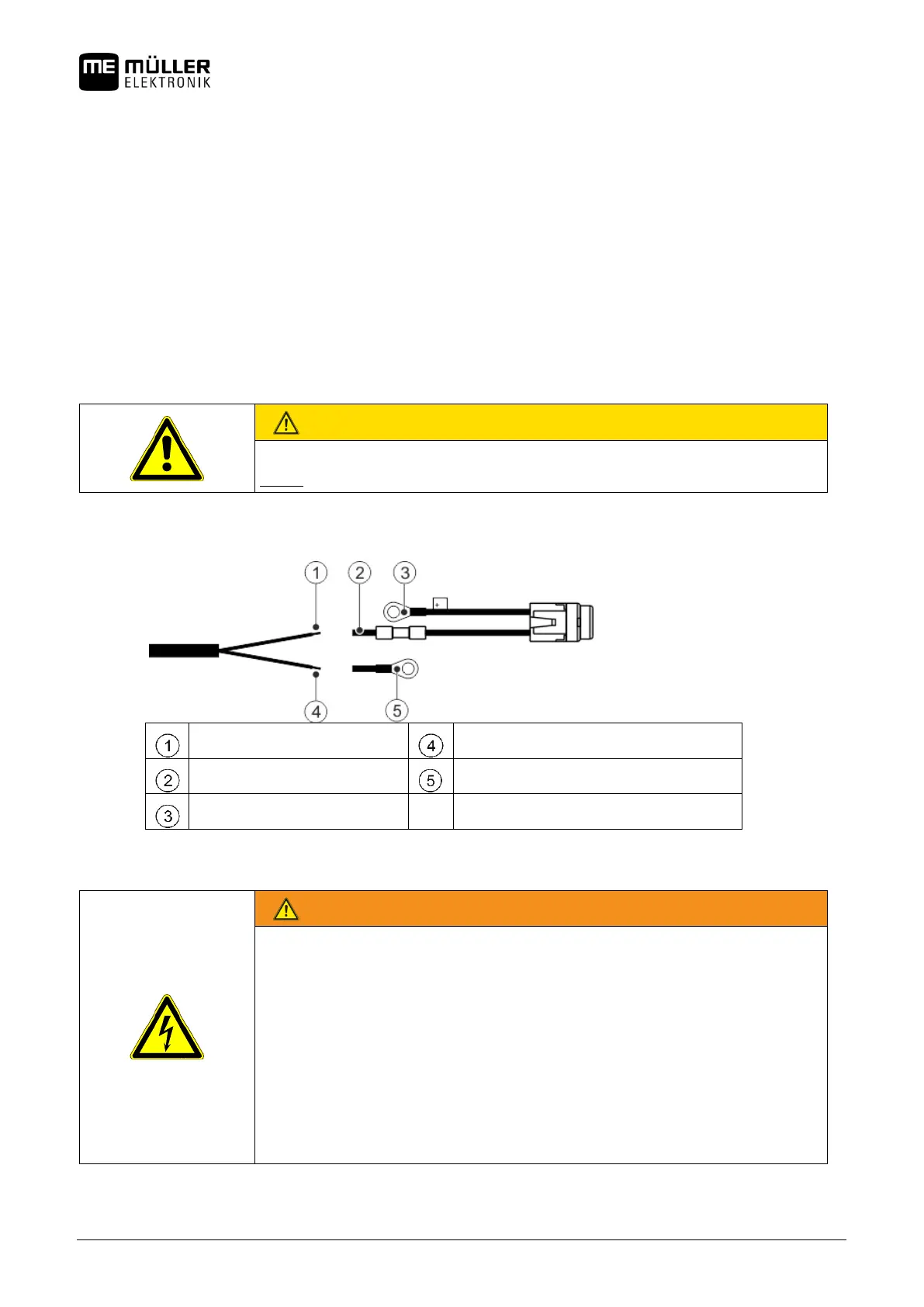

5.2 Battery connecting cable [6]
Free end of the butt connector
Loose ring tongue – ground/0V
Risk of injury caused by short circuit
Connecting the positive terminal and the vehicle mass when working on the battery terminals can
cause a short circuit. This can cause burn injuries to persons.
◦ When working on the battery terminals, ensure that no connection is created between the
vehicle battery and the vehicle mass.
◦ Remove metallic items such as watches and rings before starting work.
◦ When disconnecting the terminals, always begin with the negative terminal.
◦ Always begin reconnecting the terminals with the positive terminal.
