Copyright Müller-Elektronik GmbH & Co.KG, Installation and operating instructions SPRAYDOS (07.2016) Page - 9 -
4 Overview and system description
4.1 Overview

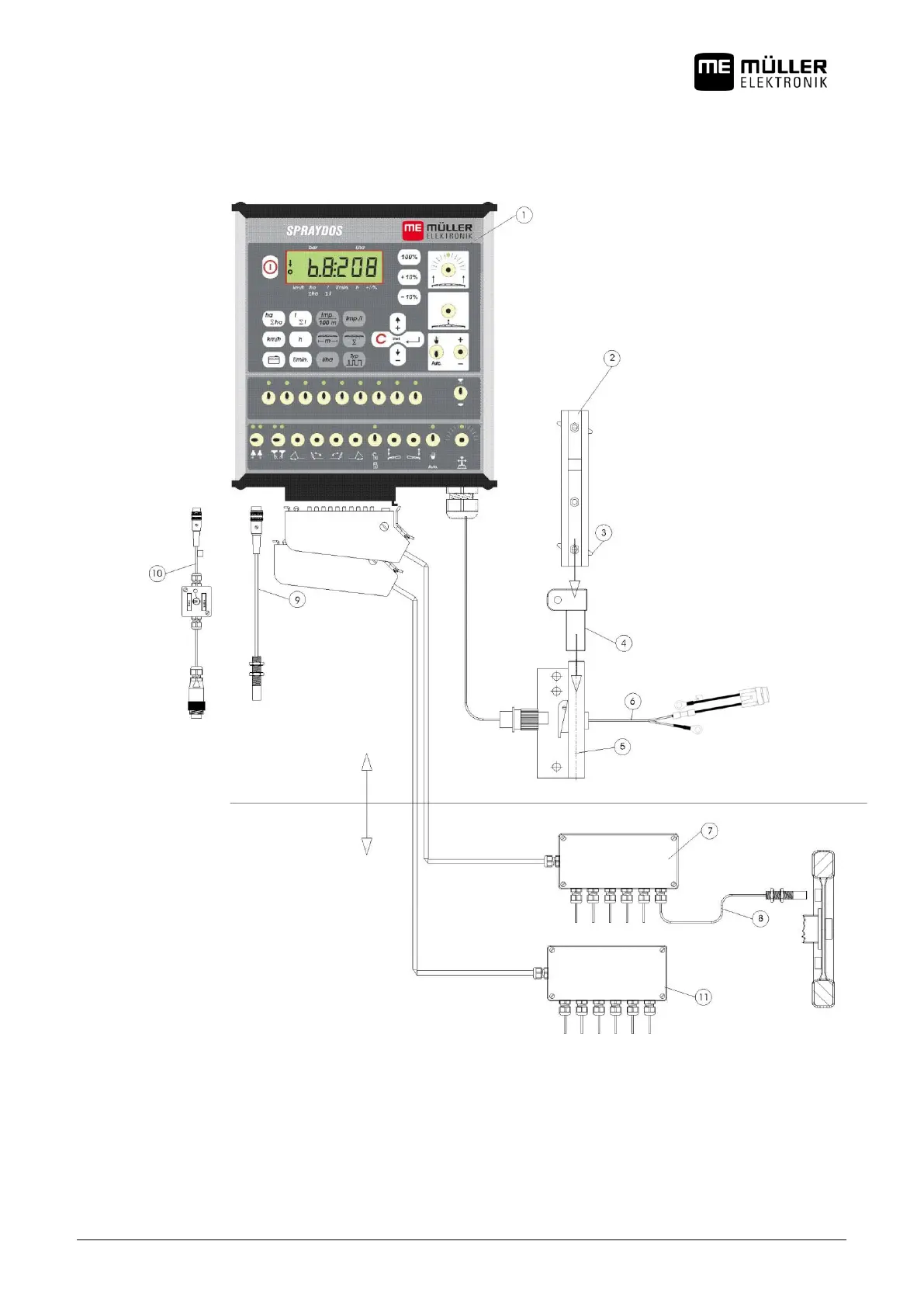

Diagram 4-1 SPRAYDOS overview
Basic console
Continuos current socket
DIN 9680
brown
blue
Bracket
Machine signal
distributor for sprayer
Hydraulic signal
distributor long
SPRAYDOS version
Tractor
Implement
Signal socket
Sensor X
