Page - 24 - Copyright Müller-Elektronik GmbH & Co. KG, Installation and operating instructions SPRAYDOS (07.2016)
The automatic mode guarantees accurate dosage. Please ensure that the pressure in connection with the drop formation
for the nozzle type in operation is maintained.
At times when the field sprayer is switched on and off, the same speed should be driven if possible to avoid brief under-
dosage or over-dosage after switching on the field sprayer.
If regulation is to be carried out manually, set the switch to manual. The quantity is controlled using the key.
Once the job is completed all values can be called up. A new job begins with the "start function" (6.3.1).
Before initial operation fill the sprayer with water (without spraying fluid). Start the field sprayer.
Subsequently check the values measured and displayed.
6.7 Calibrating hydraulic functions
If the following hydraulic functions are available, they can be calibrated by the user:
> Boom control
> Drawbar steering
Calibration serves to adapt the controller to the characteristics of the implement.

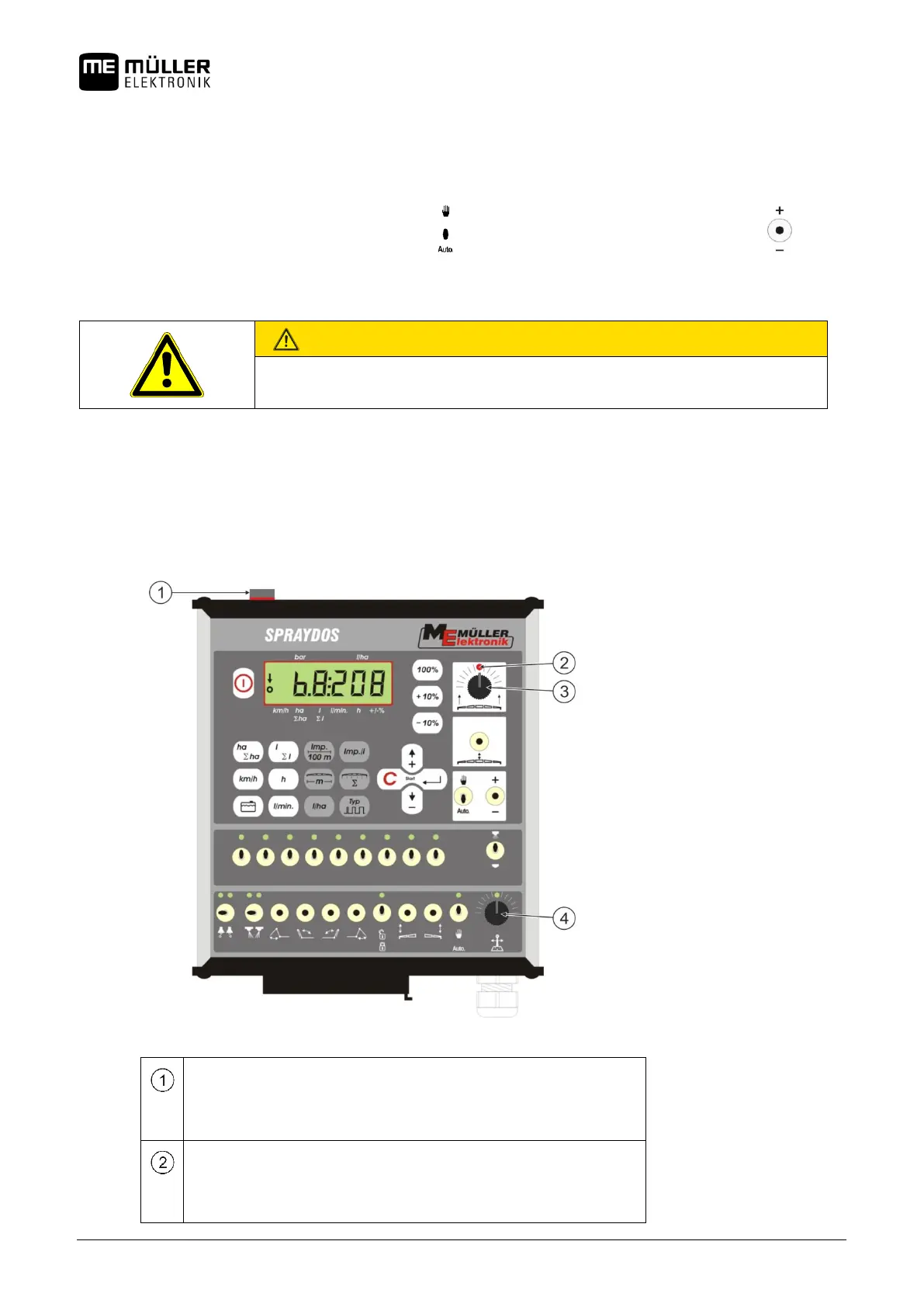

Diagram 6-3 Operating elements that are required for calibration
Magnet
The calibration mode is activated by applying a magnet onto the casing. The
magnet must be positioned exactly above the left edge of the display.
LED
Is switched off in calibration mode, and flashes to indicate completion. The
same LED is used for all of the calibrations.
