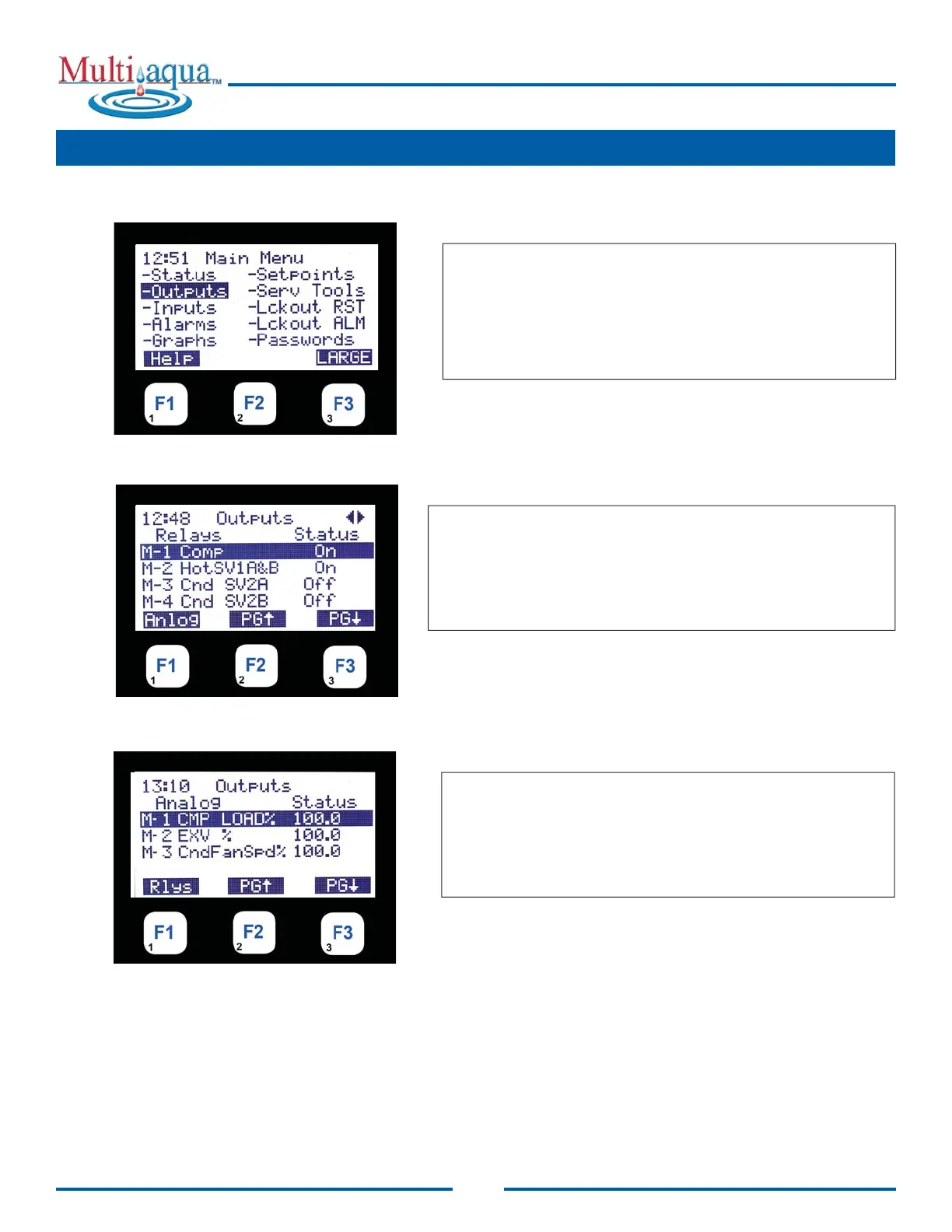

MENU, SELECT OUTPUTS
THIS WILL ALLOW THE USER TO DISPLAY DETAILS
OF THE OUTPUTS STATUS
BOTH ANALOG & DIGITAL
PRESS (ENTER KEY) TO SELECT
HH:MM
OUTPUTS (RELAY & ANALOG)
THE 1ST FOUR RELAY OUTPUTS ARE PRESENTED
KEYS ALLOW THE USER TO SCROLL THROUGH THE DATA
FUNCTION KEY F1 ALLOWS THE USER TO DISPLAY ANALOG OUTPUTS
PAGE UP / DOWN DISPLAYS NEXT 4 OUTPUTS
HH:MM
PRESSING F1 SELECTS ANALOG OUTPUTS
THE SCREEN SHOWS 3 ANALOG OUPUTS IN THIS UNIT
KEYS ALLOW THE USER TO SCROLL THROUGH THE DATA
FUNCTION KEY F1 ALLOWS THE USER TO DISPLAY ANALOG OUTPUTS
PAGE UP / DOWN DISPLAYS NEXT OUTPUTS
5. Status Outputs
5.1. MAIN MENU - SELECT OUTPUTS STATUS
5.2. UNIT RELAYS STATUS
5.3. RELAY ANALOG STATUS
