14
HH:MM
MENU KEY, SELECT SETPOINTS
PRESS ENTER KEY
THIS WILL ALLOW THE USER TO DISPLAY DETAILS OF SETPOINTS
SETPOINTS CAN BE DISPLAYED
BASED ON AUTHORIZATION LEVEL
HH:MM
THE 1ST FOUR SETPOINTS ARE DISPLAYED
KEYS ALLOW THE USER TO SCROLL THROUGH THE DATA
FUNCTION KEY F1 ALLOWS THE USER TO DISPLAY SETPOINT DATA
PRESS ENTER KEY TO SEE VALUE OF SETPOINT 1

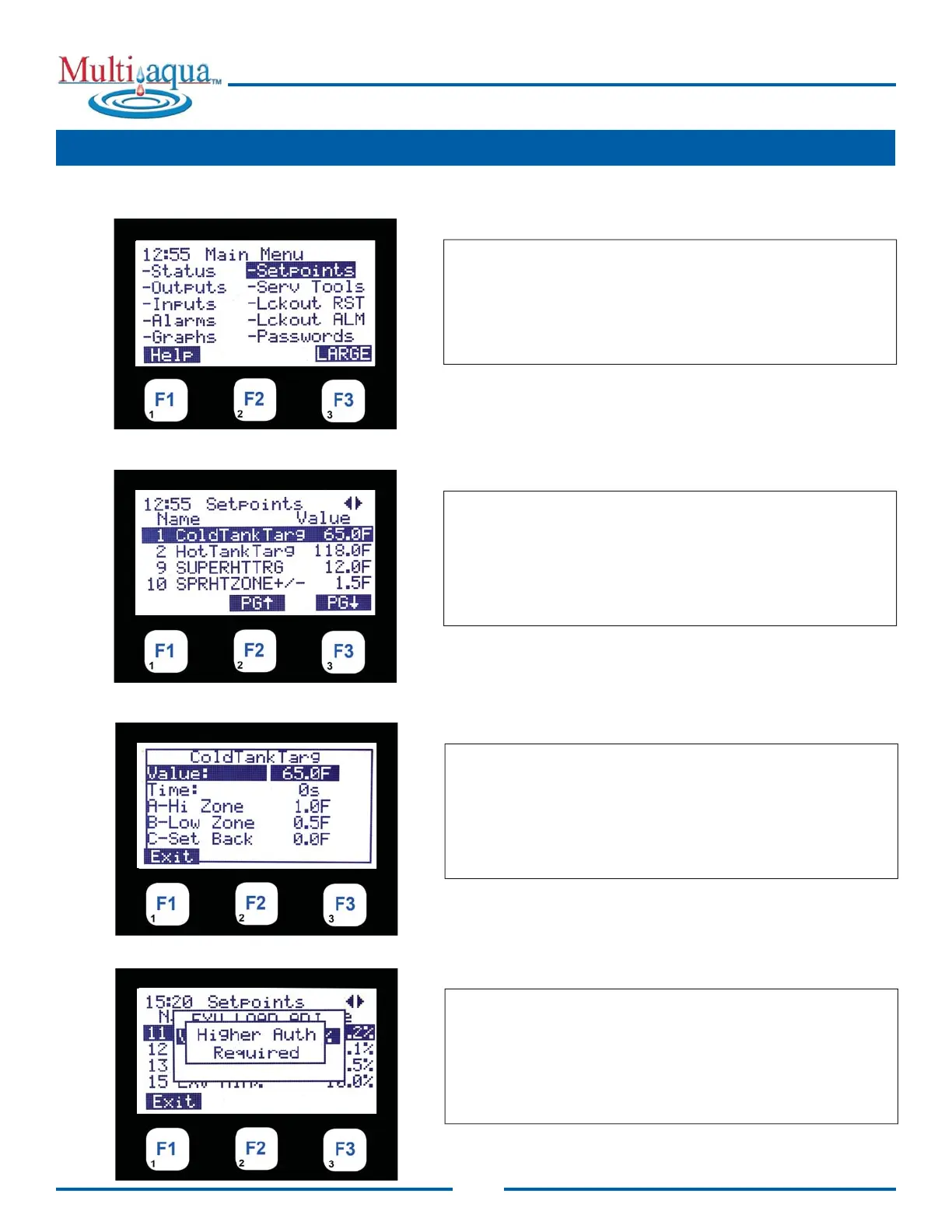

9. Set Points
9.1. PRESS MENU - SELECT SET POINTS
9.2. DISPLAY SET POINTS
9.3. EDIT SETPOINT
9.4. HIGHER AUTH NEEDED
HH:MM
SETPOINT 1 VALUE SHOWN
SETPOINTS VALUES CAN BE CHANGED
BASED ON AUTHORIZATION LEVEL
PRESS ENTER KEY TO CHANGE VALUE
HH:MM
SCREEN SHOWS
HIGHER AUTHORIZATION LEVEL REQUIRED
TO CHANGE SETPOINT’S VALUE
