HH:MM MAIN MENU
MENU KEY, SELECT STATUS, PRESS () ENTER KEY
THIS WILL ALLOW USER TO DISPLAY DETAILS
OF THE UNIT STATUS
PRESS F3 PG TO CONTINUE REVIEWING STATUS
HH:MM C TNK / H TNK
CURRENT MHRC STATUS – UNIT IS LOADED
TIME IN COOL MODE
SHOWS WANTED, ACTUAL, % LOADED, DELAY
AND RATE OF CHANGE
PRESS F3 PG TO CONTINUE REVIEWING STATUS
HH:MM C TNK / H TNK
COMPRESSOR 1 IS RUNNING
TIME IN THIS MODE
PROVIDES SUCTION, DISCHARGE & OIL PSI WITH MOTOR %
AS WELL AS TEMPERATURES
PRESS F3 PG TO CONTINUE REVIEWING STATUS

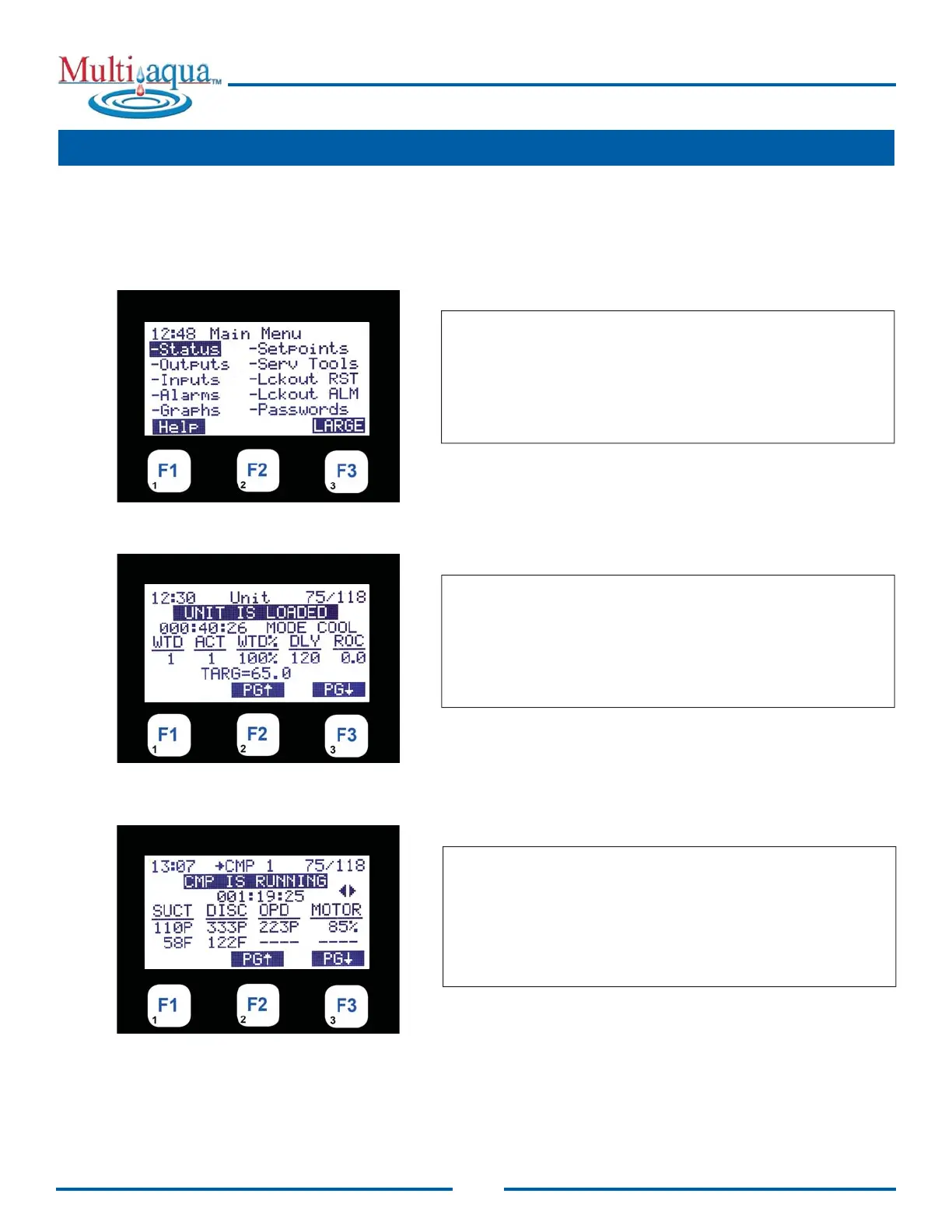

4. Status Displays
The current status can be viewed on the LCD display by depressing the ‘Menu’ key and selecting STATUS, then
depressing the ‘ENTER KEY’. Or it can be accessed via the MCS-CONNECT program under status screen
section (See MCS-CONNECT Manual for further details).
4.1. PRESS MENU – SELECT STATUS
4.2. UNIT COMPRESSOR LOADED
4.3. COMPRESSOR 1 STATUS- RUNNING
