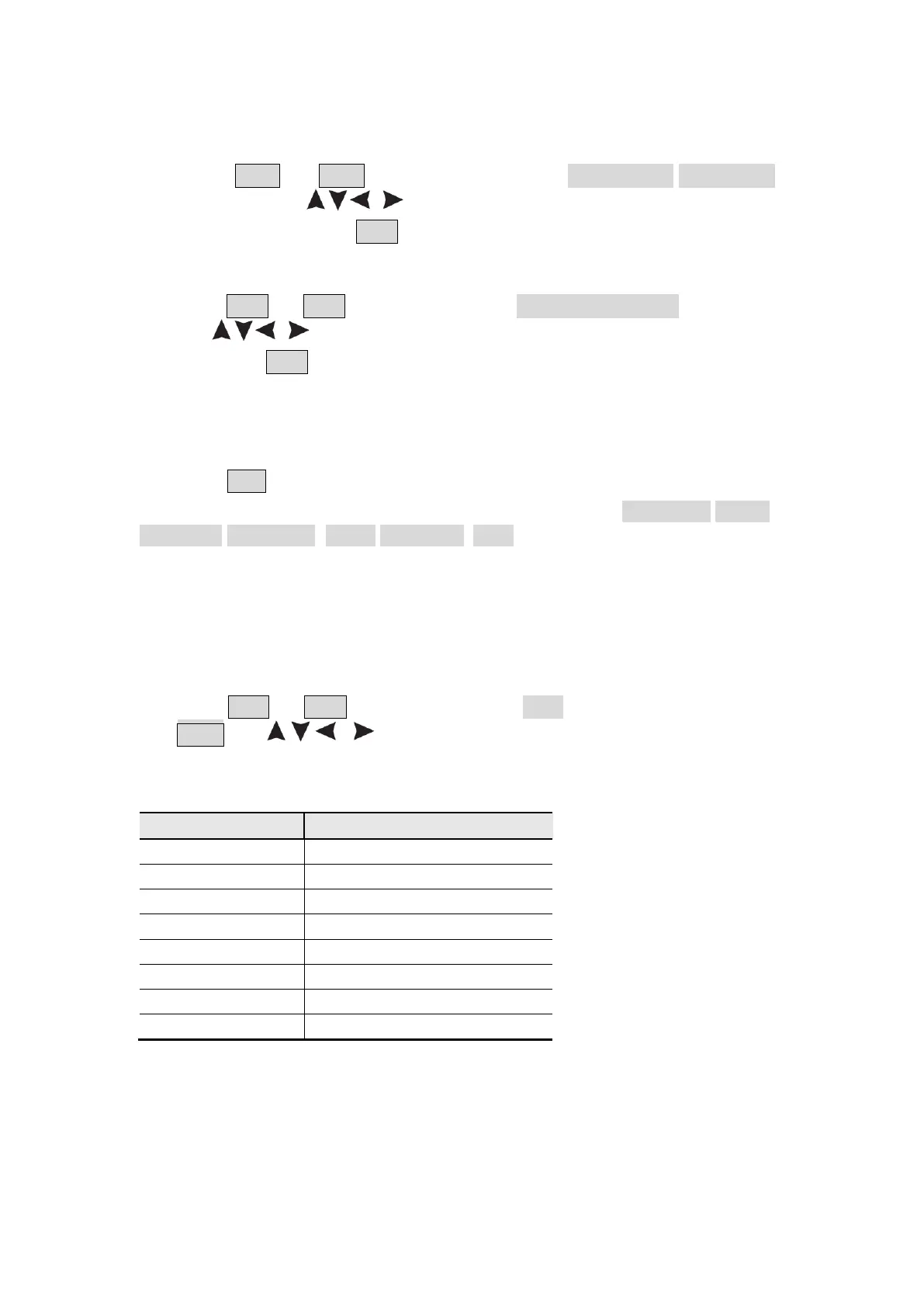

Set the Pulse Width / Duty Cycle of the pulse waveform
Press the F3 or F4 key to switch to the Pulse Width/Duty Cycle
parameter, use the
direction keys to set the desired value in the
parameter column. Press F2 to switch between Pulse Width / Duty Cycle.
Set the Rise Time/Fall Time
Press the F3 or F4 key to switch to the Rise Time/Fall Time parameter,
use the
direction keys to set the desired value in the parameter
column. Press F2 to switch between Rise Time / Fall Time.
Output the Arbitrary waveform
Press the F1 key to enter the arbitrary waveform setting interface.
The arbitrary waveform setting menu includes: Frequency/Period,
Amplitude/High Level, Offset/Low Level, Type.
For the setting frequency/period, amplitude/high level, offset/low level, please
refer to Output the sine waveform on page 26.
Type (built-in waveform)
The system has 8 built-in waveforms. To select the built-in waveform:
Press the F3 or F4 key to switch to the Type parameter, and then use
the F2 or
direction keys to select the desired built-in
waveform in the parameter column.
Built-in waveform list
Sinc Sinc function
Bessely BesselII function
Besselj BesselI function
StairUp Stair-up waveform
StairUD Stair-up and stair-down waveform
StairDn Stair-down waveform
AttALT Gain oscillation curve
AmpALT Attenuation oscillation curve
