Galvanized Box Fan 130
INS00025-A Original instructions ENGLISH | 9

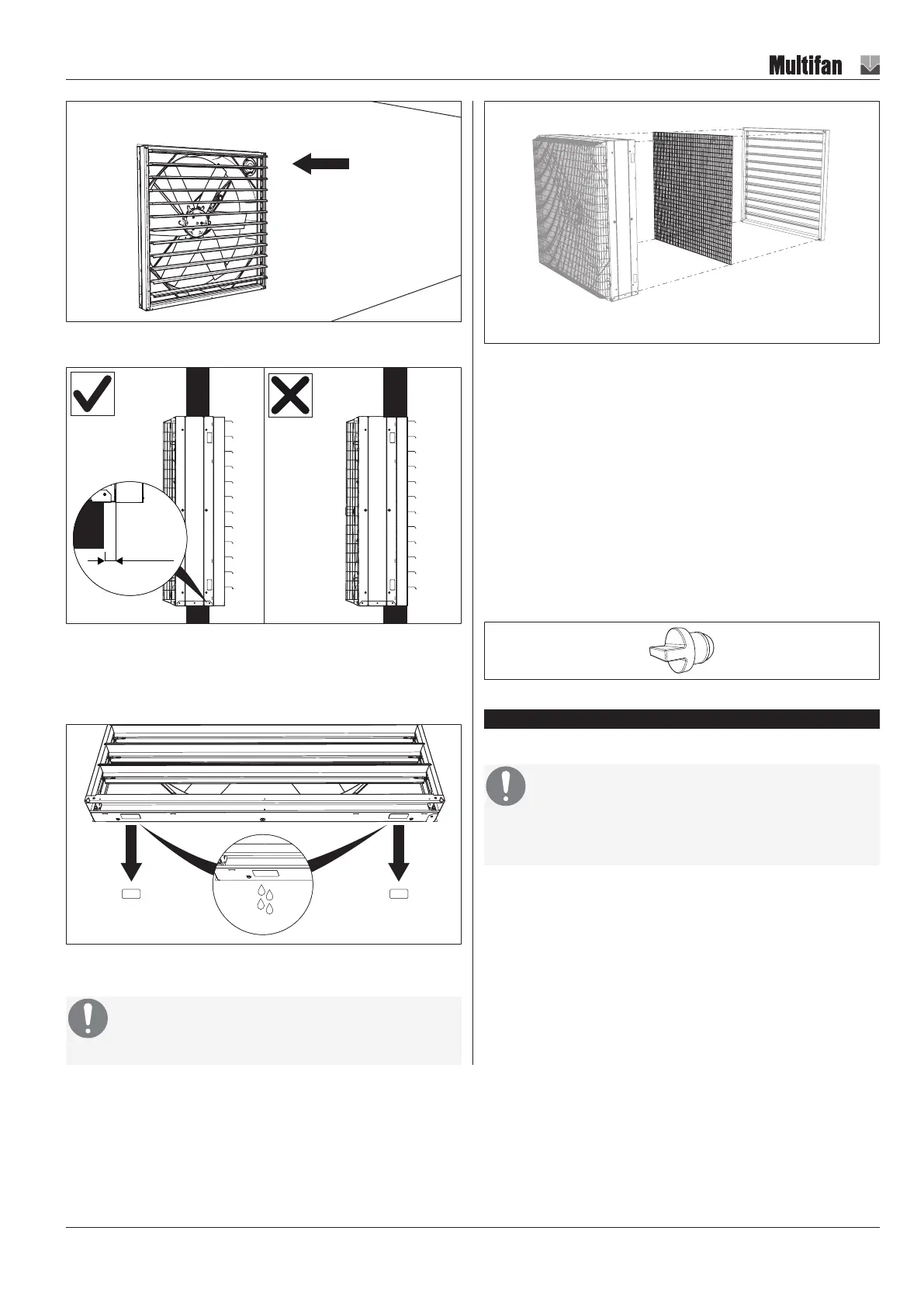

Illustration13: Motor position
ð Do not embed the shutter in the wall.
30 - 50mm
Illustration14: Do not embed the shutter in the wall
ð Make sure that the fan protrudes far enough from the wall so that
the drain holes are not blocked by the wall.
2. Open the knockout drain holes in the bottom housing part. Water that will
enter the housing during e.g. cleaning can drain away.
Illustration15: Fan housing drain holes
Guarding
NOTICE
The fan must be guarded according to local regulations
Illustration16: Optionally available guard
Default, the fan is delivered with a guard on the intake side. The shutter acts
as a guard for the exhaust side, but does not provide the required safety
distances to prevent hazard zones being reached by upper and lower limbs
(ISO 13857:2008). Depending on installation height or location, the shutter
may therefore not provide the required level of protection. A guard for in
between the shutter and fan housing is optionally available. Please contact
your supplier for more information.
Condensate drain holes
The fan motor has drain holes to allow condensation that may form inside the
motor to leave the motor. After installation, the drain hole at the lowest point
of the motor must be open, the other drain holes must be closed.
Spare condensate drain plugs are supplied with the fan. Keep all the drain
plugs as they must be temporarily reinserted in the open drain holes during
wet cleaning.
Illustration17: Condensate drain plug
6.2 Electrical
Wiring diagrams
NOTICE
Electrical connection must be carried out by a qualified electri-
cian. Electrical connections must be made in accordance with
local regulations.
Check the rating plate and verify that this fan is suitable for the available
power supply.
For 3~ fan motors: check that STAR / DELTA is properly configured on the
terminal block.
CAUTION!In case your fan motor is supplied pre-wired with
a power cable, still always check the terminal block or the
luster terminal configuration.
