Assembly instructions

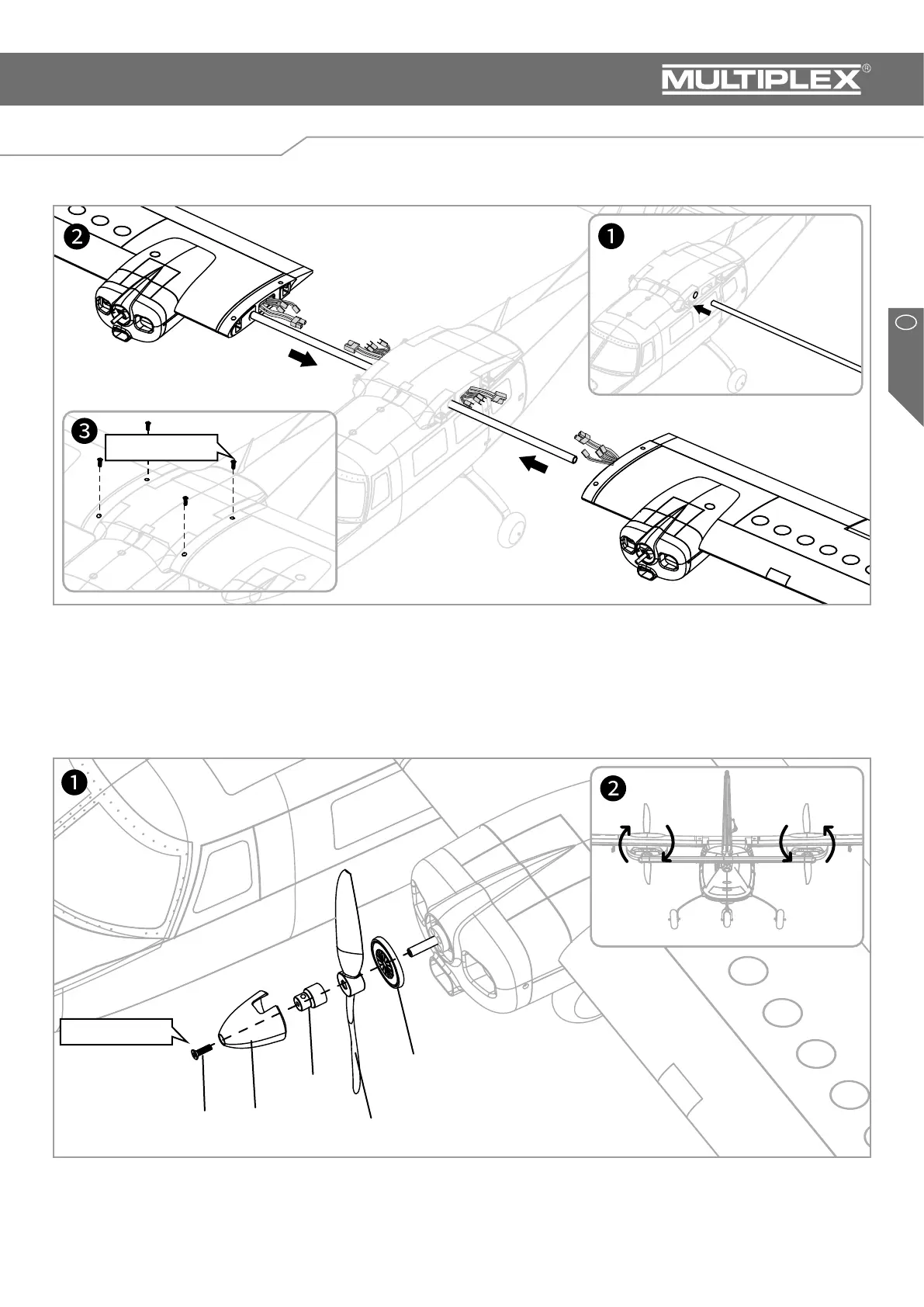

Main Wing Installation
1. Insert the wing spar into the slots of the fuselage.
2. Install two wing halves onto the fuselage through the wing spar as
shown, connect the servo wires and power cords accordingly.
3. Fix the main wing with supplied screws.
1. Install the spinner set and propellers in sequence from A to E. 2. Note: please make sure CW propeller is installed on the left wing and
CCW propeller(with “R” mark) is installed on the right wing.
Spinner and Propeller Installation
EN
To Next Page
