PAGE 16 — J36/B46-M30 SERIES WALK-BEHIND TROWELS • OPERATION MANUAL — REV. #1 (11/17/17)
DIMENSIONS

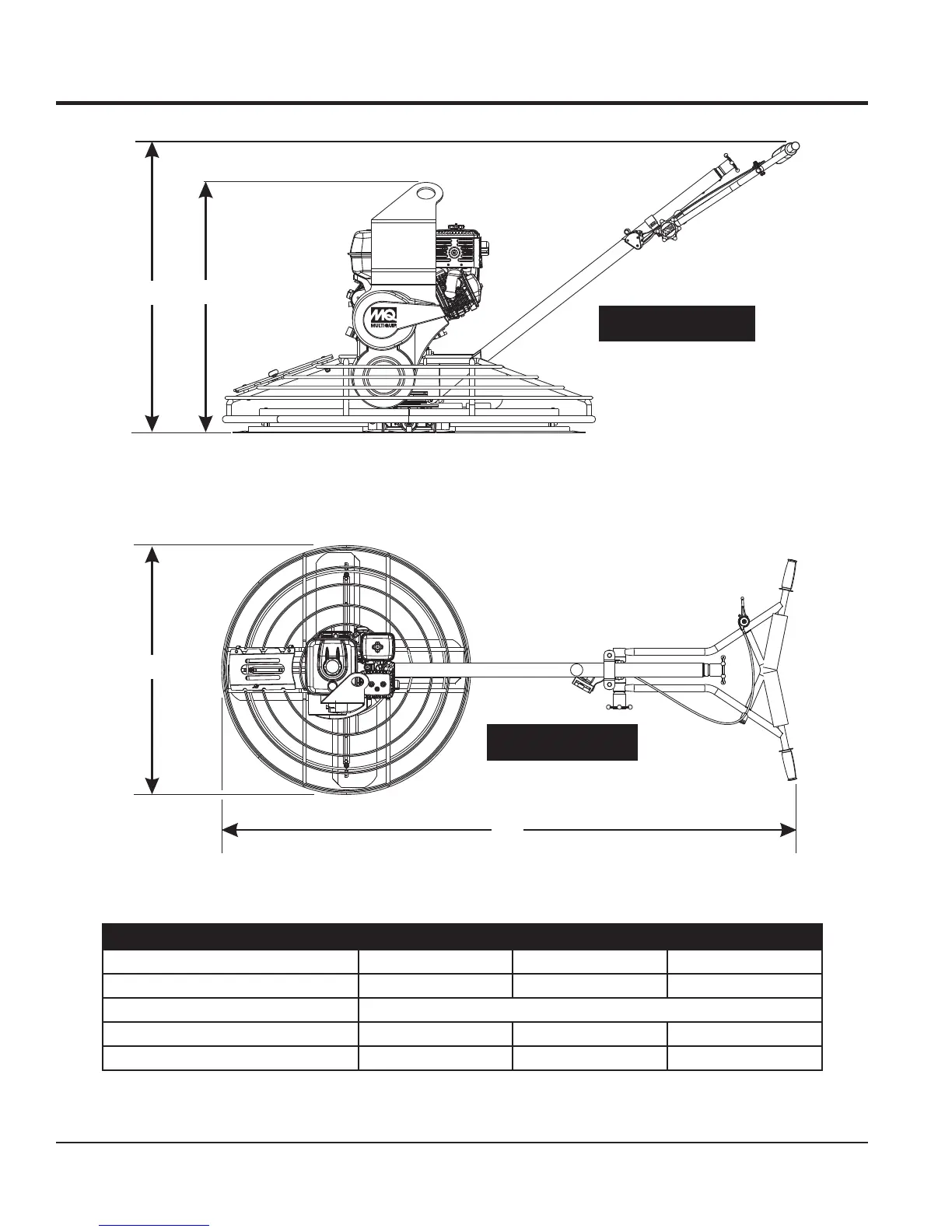

Figure 1. Trowel Dimensions
AAA
B
SIDE VIEW
C
D
TOP VIEW
Standard Handle Shown
Table 7. Trowel Dimensions
Model J36 Series M30H55 B46 Series
(A) Height (Lifting Bale) 27 in. (686 mm) 26 in. (660 mm) 31.5 in. (800 mm)
(B) Height (Handle) 41.5 in. (1,054 mm)
(C) Width (Ring Diameter) 36 in. (914 mm) 30 in. (762 mm) 46.5 in. (1,181 mm)
(D) Length 74 in. (1,880 mm) 68 in. (1,727 mm) 81.4 in. (2,068 mm)
