PAGE 26 — J36/B46-M30 SERIES WALK-BEHIND TROWELS • OPERATION MANUAL — REV. #1 (11/17/17)
ENGINE OIL
1. Place the trowel on secure, level ground with the
engine OFF.
2. Remove the dipstick (Figure 18) from the engine oil
filler hole and wipe it clean.

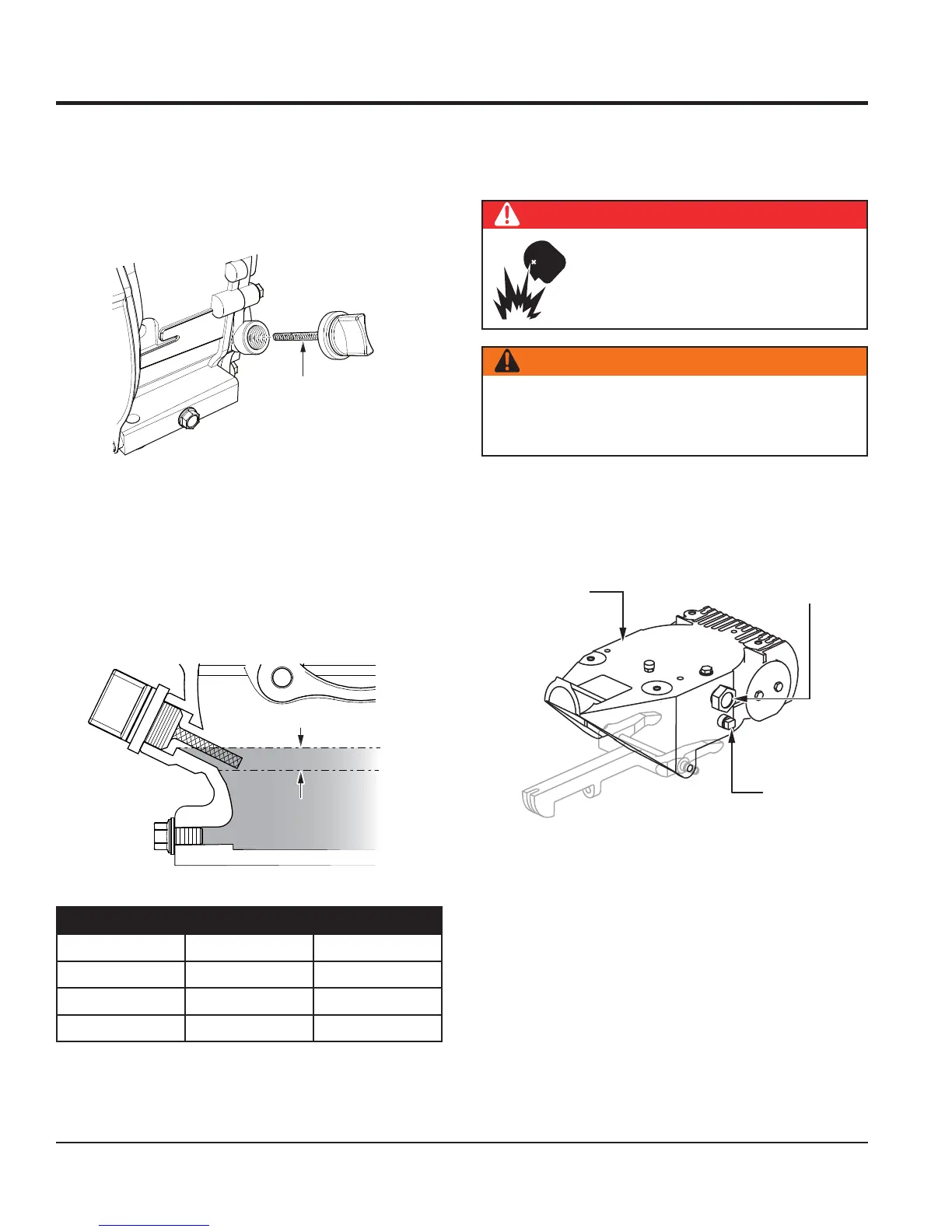

Figure 18. Engine Oil Dipstick
3. Reinsert the dipstick, then remove it again without
screwing it into the filler neck. Check the oil level shown
on the dipstick.
4. If the oil level is low (Figure 19), fill to the edge of the
oil filler hole with the recommended oil type as listed
in Table 8. Refer to Table 3 or Table 4 for maximum
engine oil capacity.
Figure 19. Engine Oil Level
Table 8. Engine Oil Type
Season Temperature Oil Type
Summer 25°C or Higher SAE 10W-30
Spring/Fall 25°C–10°C SAE 10W-30/20
Winter 0°C or Lower SAE 10W-10
DIPSTICK
UPPER LIMIT
LOWER LIMIT
INSPECTION
FUEL
Remove the fuel filler cap and inspect the fuel level in the
tank. If fuel is low, replenish with unleaded fuel.
GEARBOX OIL
1. Look at the sight glass on the side of the gearbox
(Figure 20) to determine if gearbox oil is low. The
correct oil level is to the halfway point on the sight glass.
Figure 20. Gearbox Oil
2. If gearbox oil is low, remove the drain/fill plug
(Figure 20) and fill with industrial synthetic gear oil
until the correct oil level is reached. Refer to Table 3
or Table 4 for the correct oil type. Replace the drain/fill
plug when finished.
3. If there is too much oil in the gearbox, remove the
drain/fill plug and allow the oil to seep out. Replace the
plug once the correct oil level is reached.
DANGER
Motor fuels are highly flammable and
can be dangerous if mishandled. DO NOT
smoke while refueling. NEVER attempt to
refuel while the engine is running or hot!
WARNING
ALWAYS use a strainer for filtration while refueling.
NEVER top off fuel. ALWAYS wipe up any spilled fuel
immediately.
SIGHT GLASS
DRAIN/FILL
PLUG
GEARBOX
