V-BELT

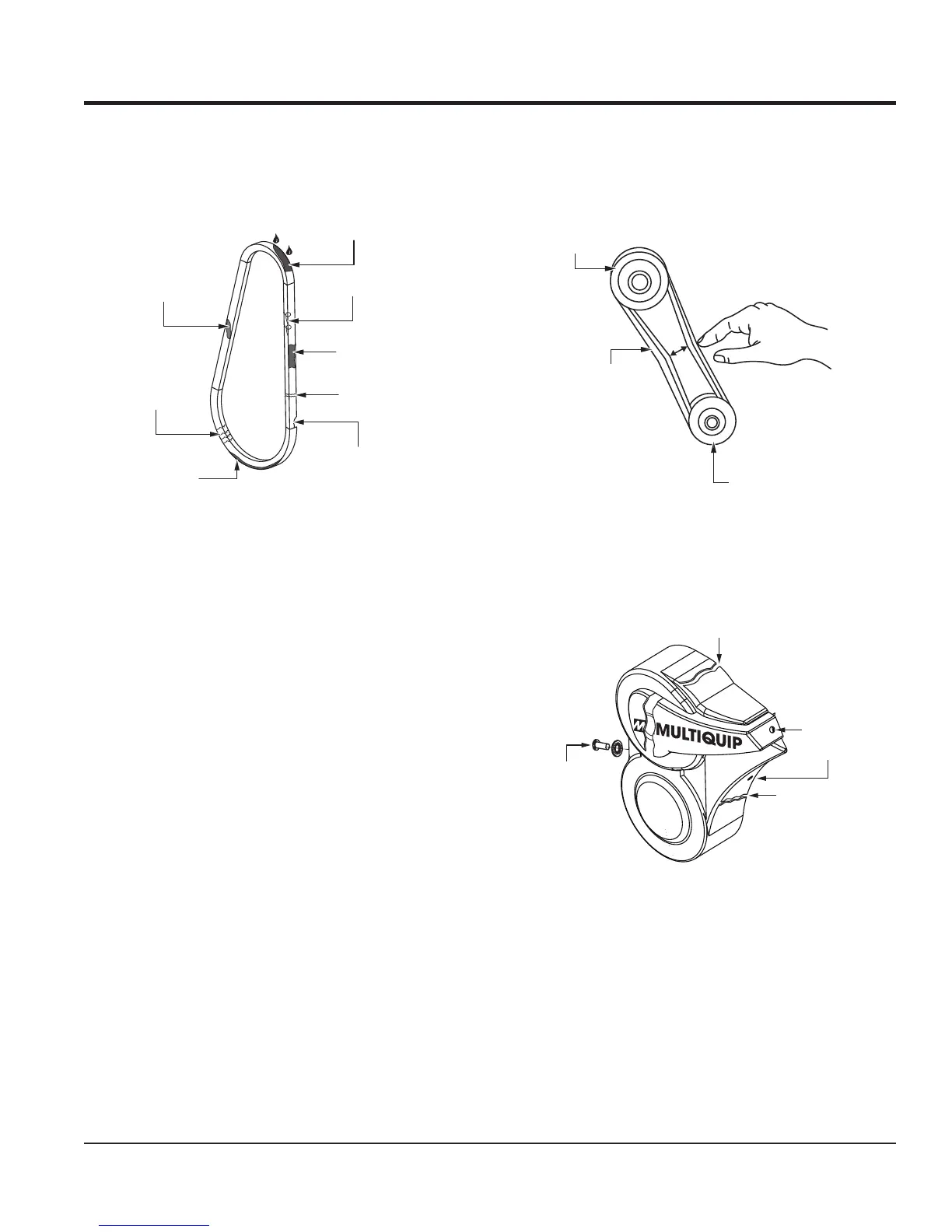

1. Inspect the V-belt (Figure 21) to determine if it is frayed,
peeling, full of tiny cracks, has pieces of rubber missing,
or is otherwise damaged.
Figure 21. V-Belt Inspection
2. Inspect the V-belt (Figure 21) to determine if it is
oil-soaked or glazed (a hard, shiny appearance on the
sides of the belt). Either of these conditions can cause
overheating of the belt, which may weaken the belt and
increase the danger of it breaking.
3. Replace the V-belt immediately if any of the
aforementioned wear conditions are observed.
GLAZED
BROKEN
CORD FAILURE
CRACKS
MISSING
RUBBER
SIDEWALL
WORN BACK
COVER
INSPECTION
V-BELT TENSION
The V-belt tension (Figure 22) is correct if the V-belt bends
10–15 mm when depressed with a finger midway between
the clutch and lower pulley.
Figure 22. V-Belt Tension
BELT GUARD
Inspect the belt guard (Figure 23) for damage, and for loose
or missing hardware.
Figure 23. Belt Guard Inspection
PULLEY
CORRECT V-BELT
TENSION BETWEEN
10–15 MM WHEN
DEPRESSED AS SHOWN
LOWER
V-BELT
CRACK
CRACK
MISSING
HARDWARE
MOUNTING
HARDWARE
