J36/B46-M30 SERIES WALK-BEHIND TROWELS • OPERATION MANUAL — REV. #1 (11/17/17) — PAGE 31
OPERATION
2. With the engine running at idle, place the safety stop
switch lever in the OFF position (Figure 33). Verify that
the engine shuts off. If the engine continues to run,
replace the centrifugal safety stop switch.

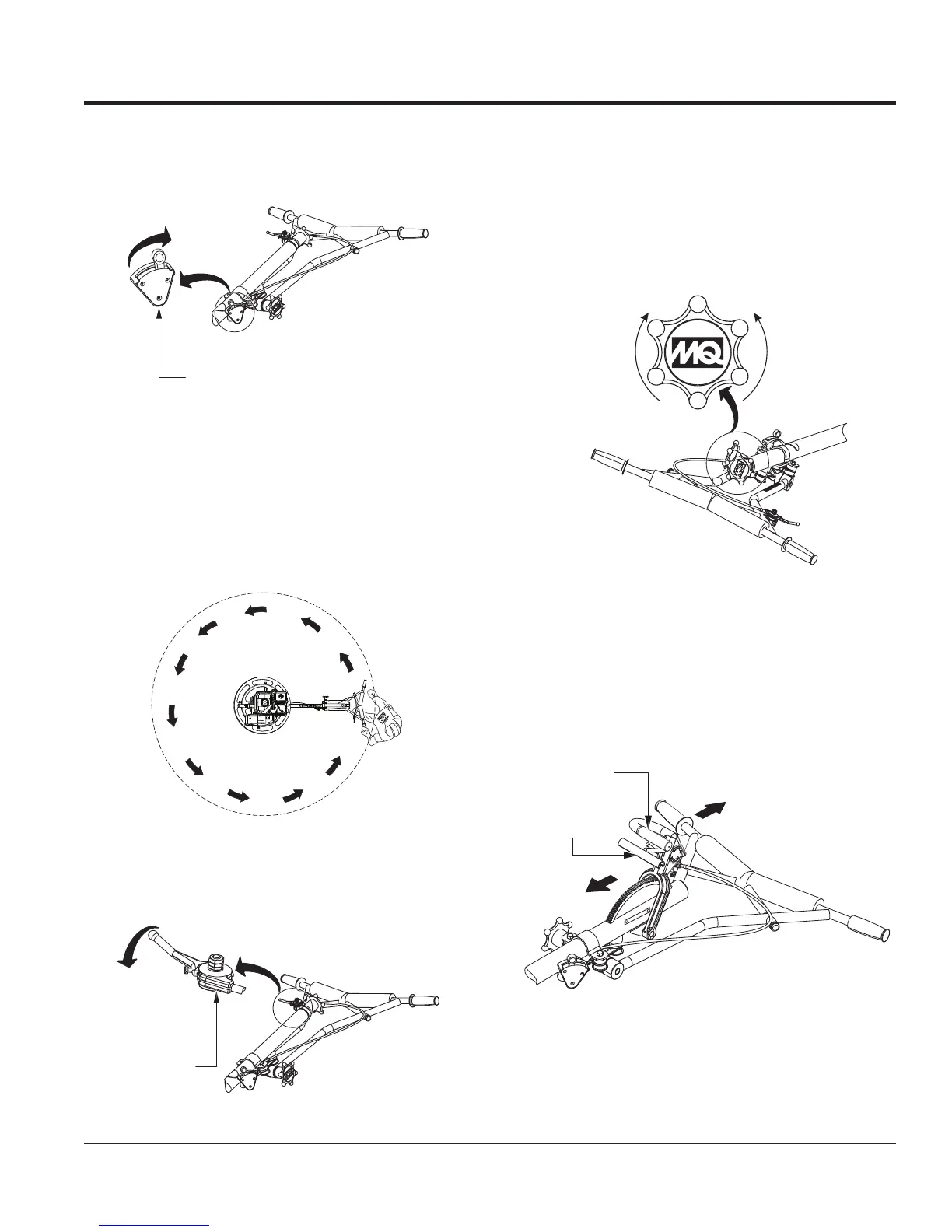

Figure 33. Centrifugal Safety Stop Switch (OFF)
3. Place the safety stop switch lever in the ON position,
restart the engine, and let it idle.
4. Stand behind the handle in the operator's position
(Figure 34) and spin the handle to the right, simulating
a runaway condition. Centrifugal force should throw
the safety switch outward to the OFF position, thus
shutting off the engine.
Figure 34. Centrifugal Safety Stop Switch Test
TO BEGIN TROWELING
Place the throttle lever (Figure 35) in the RUN position.
Figure 35. Throttle Lever (Run)
OFF
CENTRIFUGAL
SAFETY STOP
SWITCH
K
E
E
P
C
L
E
A
R
K
E
E
P
C
L
E
A
R
RUN
THROTTLE
LEVER
PITCHING THE BLADES
Standard Handle
To pitch the blades upward with the standard handle
(Figure 36), turn the star wheel clockwise. Turn the star
wheel counterclockwise to pitch the blades flat (no pitch).
Figure 36. Pitching the Blades
(Standard Handle)
Quick Pitch™ Handle
To pitch the blades upward with the Quick Pitch™ handle
(Figure 37), pull the T-handle backward while squeezing
the trigger lock. Push the T-handle forward to pitch the
blades flat (no pitch).
Figure 37. Pitching the Blades
(Quick Pitch™ Handle)
INCREASE
BLADE PITCH
(CW)
DECREASE
BLADE PITCH
(CCW)
BLADE PITCH
STAR WHEEL
T-HANDLE
TRIGGER
LOCK
NO
PITCH
FULL
PITCH
