Press
& key to set correction factor value

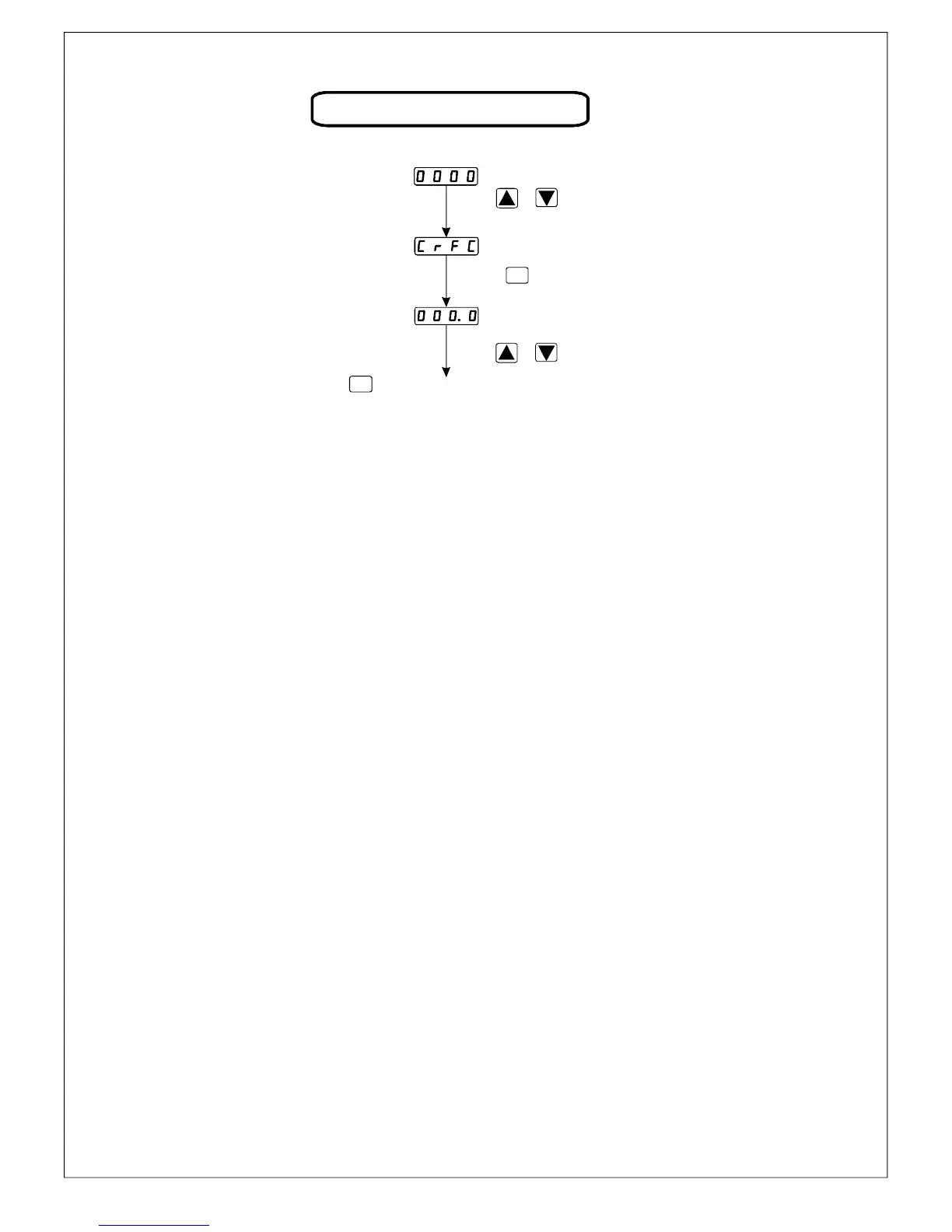

CORRECTION FACTOR
Press
& key together for 10 sec.
Correction Factor
AMP
SET
Press key for 2 sec.
(CF Range: -25.0 to +25.0)
ENT
Press key for 2 sec. to save & exit
(2) If low alarm mode is select then starting delay time and delay time both works.
(1) Do all connection as show in connection diagram and turn ON Instrument.
(3) When power ON at that time relay will turn ON after completion of starting delay time.
this delay works only one time after power ON.
(5) When Current values is less than of SET - HYS than relay will be ON.
(6) If high alarm mode is select then only delay time will works.
(7) initially relay in OFF condition and when current value reach at that time relay will
turn ON after completion of delay time.
(4) When Current values reach at SET value or above SET value at that time
Delay time will be start & after completion of delay time, if process value
Greater than set value relay must be OFF.
WORKING:
Page - 3
