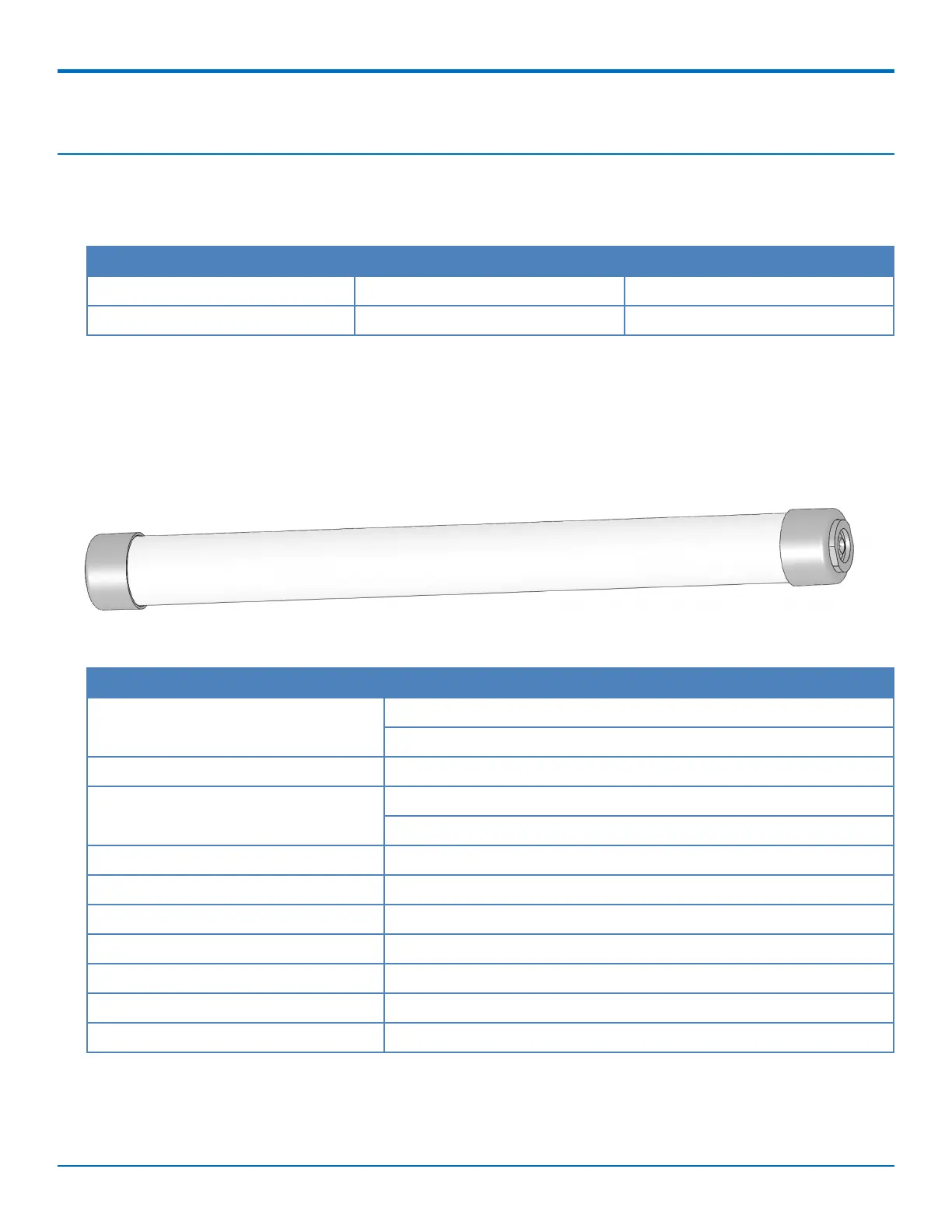

Chapter 3 – Antennas
Antenna
Depending on the model, your Base Station ships with one or more of the following antennas.
Manufacturer Model Description
L-Com HGV-906U 6dBi Gain IP67 Lora Antenna
Pulse RO8063/21704NM 3dBi Gain IP67 Lora Antenna
Pulse Omnidirectional Antenna
Manufacturer: Pulse
Description: Omnidirectional antenna 806-960/1710-2170 MHz radome
Model Number: RO8063/21704NM
Antenna Specifications
Category Description
Frequency Range 806-960 MHz
1710-2170 MHz
VSWR 2.5:1 Max
Gain, Maximum 3.0 dBi ± 1 dB at 806-960 MHz
4.0 dBi ± 1 dB at at 1710-2170 MHz
Polarization Vertical
Impedance 50 Ω
Radiation Pattern 3 dB Beamwidth
Horizontal Plane Omni
Vertical Plane - 806-960 53° Avg
Vertical Plane – 1710-2170 39° Avg
Dimensions 15.28 inches (388.5 mm) x 1.45 inches (36.9 mm)
