SPECIFICATIONS AND RELATED INFORMATION
Conduit
®
Base Station IP67 for Europe and Asia MTCDTIP-L4E1 Hardware Guide 9

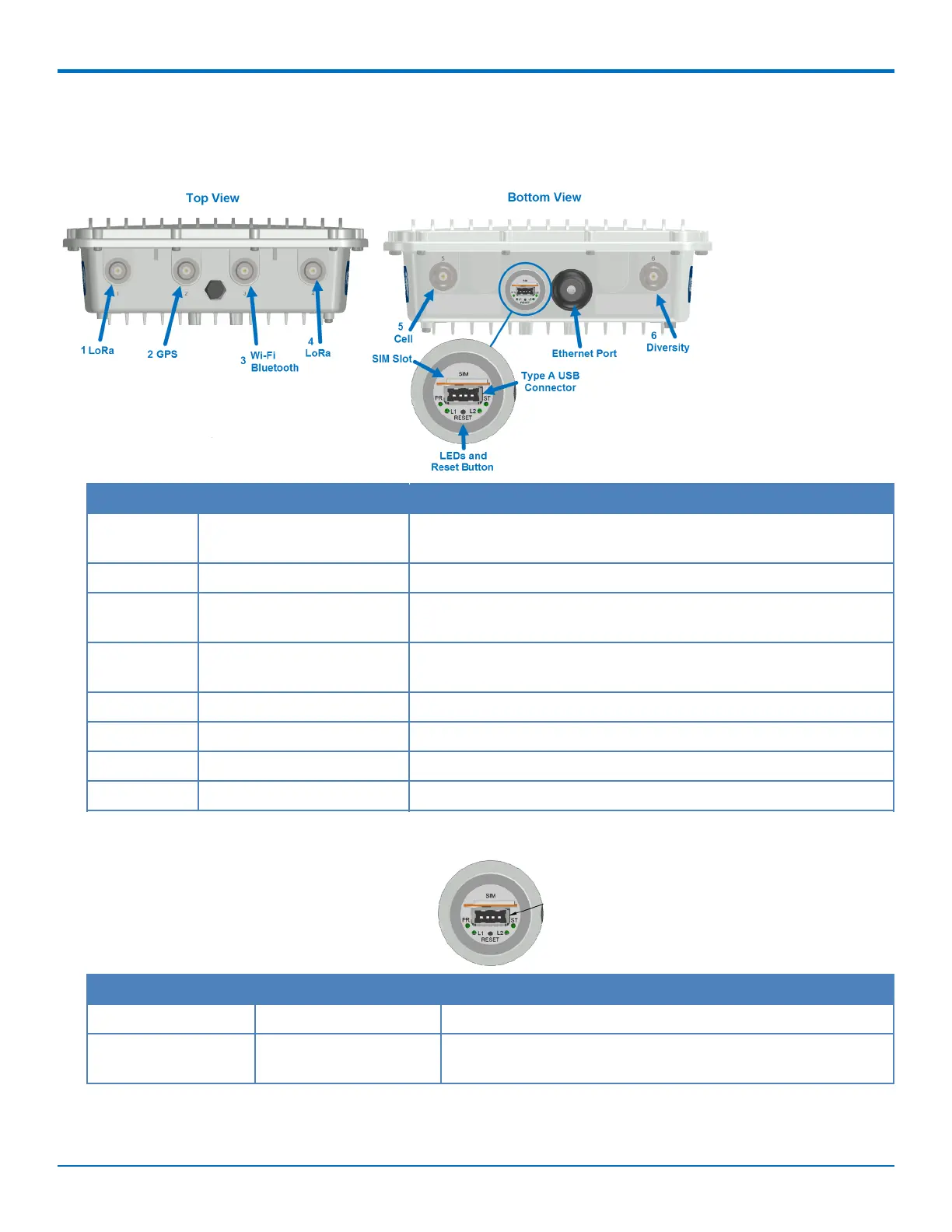

LEDs and Connectors
Connectors
# Connector Description
1 LoRa Connector for LoRa antenna. If the model has only one LoRa card,
attach the LoRa antenna to this connector.
2 GPS Connector for GPS antenna.
3 Wi-Fi/Bluetooth For Wi-Fi/Bluetooth models, use this connector for the Wi-Fi
antenna.
4 LoRa Connector for LoRa antenna. Used only if the model has two LoRa
cards.
5 Cell For cellular models, use this connector for an LTE antenna.
6 Diversity For cellular models, use this connector for the second LTE antenna.
-- USB Type A USB connector. Behind plastic cover.
-- Ethernet Port Ethernet port with IP67 rated cable gland.
LEDs
Label LED Description
PR Power Green when powered up.
ST Status A double green blink every second, a single red blink
approximately every 3 seconds.
