3.4.6.4 Potentiometer Wiring

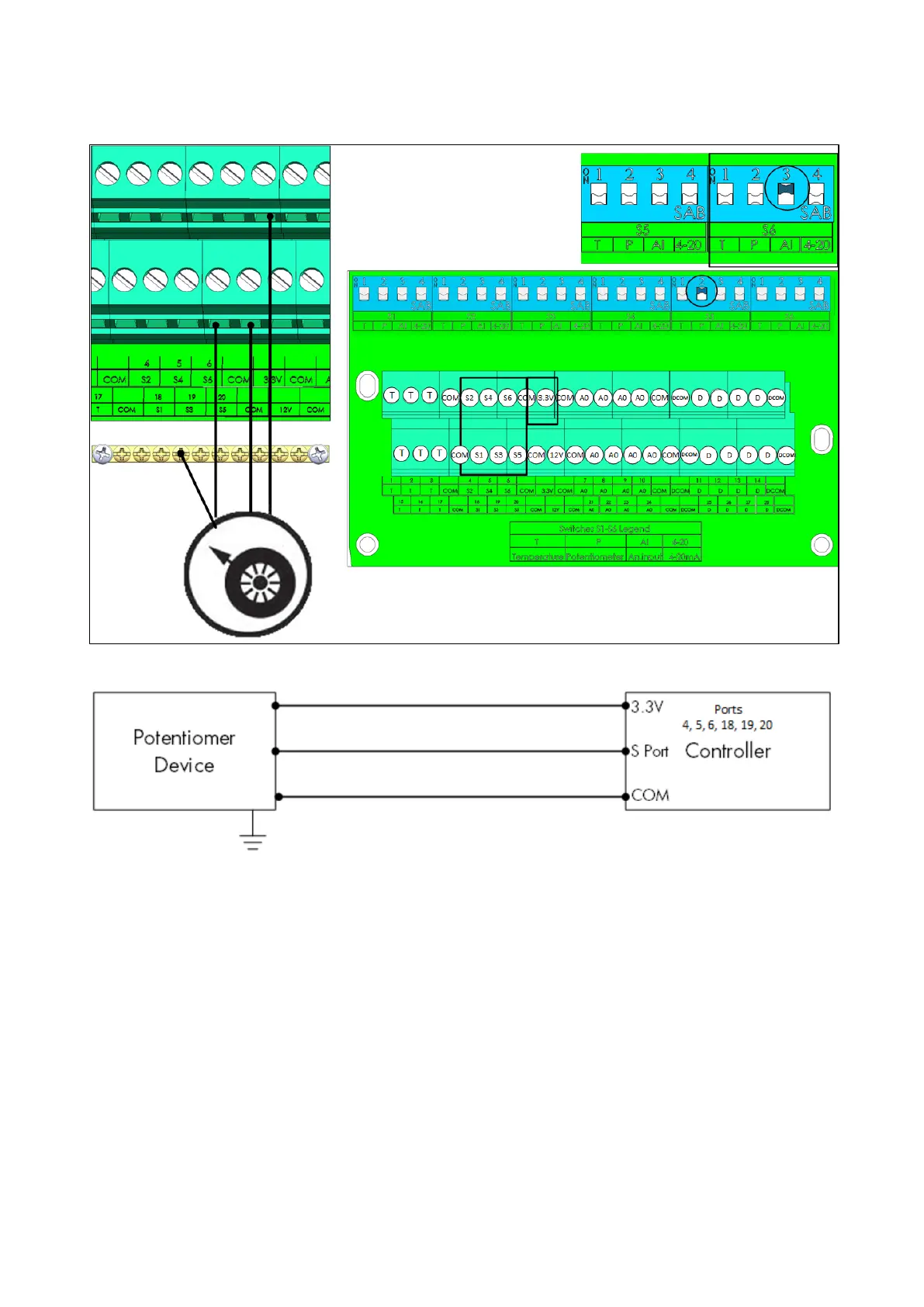

Figure 20: Potentiometer Wiring
Figure 21: Potentiometer Wiring Schematic
•
Connect each potentiometer to a:
o
S port. In the corresponding dipswitch, raise dipswitch 2 (potentiometer).
o
COM port.
o
3.3V port.
