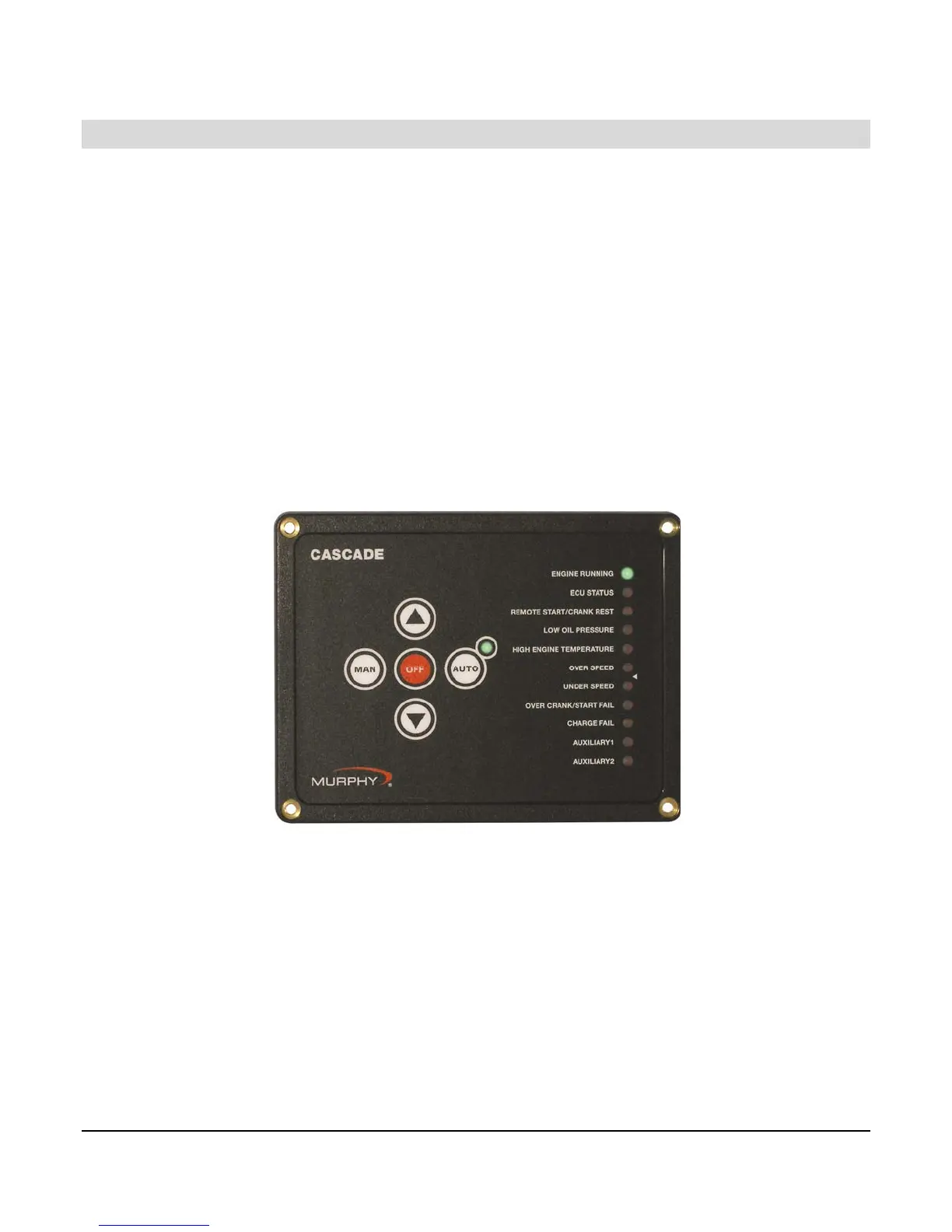

Operating the Cascade
When power is first applied, all LEDs will flash indicating a Lamp Test function.
To manually start the engine, press the “MAN” (Manual) button. The controller will initiate a normal
start sequence.
In MANUAL MODE, operating the “UP/DOWN” arrow keys will activate Aux outputs 1-4 if they are
configured for SPEED UP / SPEED DOWN.
To manually stop the engine (or turn off the controller), press the “OFF” button.
To place the controller in automatic mode, press the button labeled “AUTO”. The LED next to the
“AUTO” button should come on to indicate that the controller is waiting for the remote start input
to become active to initiate a start sequence.
To reset the controller, press the “OFF” button. Then correct the cause of the shutdown. This will
clear all faults except when the aux inputs are programmed for either shutdown immediate or
warning immediate, or if the engine ECU is broadcasting a shutdown fault.
In the event of a fault that causes the engine to shutdown, the cause of the event will be indicated on one of the
11 status lights on the right hand side of the controller. When the cause of shutdown is corrected, the controller
can resume normal operation.
